Products description

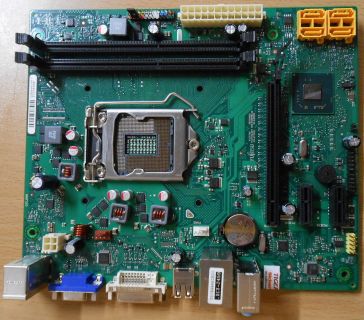

Fujitsu D2990-A11 GS3 Mainboard + Blende
Sockel 1155 Intel H61 Esprimo P400
Technische Daten
Chipset
Intel® H61 Express Chipset
Memory
2 x DIMM Sockets (1.5V), 1GB - 16GB, Single Channel or Dual Channel DDR3-1066 (CL7) / DDR3-1333 (CL9) SDRAM, unbuffered, no ECC
CPU support
Intel® Core™ i7 – 2xxx processor series
Intel® Core™ i5 – 2xxx processor series
Intel® Core™ i3 – 2xxx processor series
Compatible with Intel® FMB11B (65W) and FMB11A (95W), LGA1155.
Prepared for future LGA1155 processors.
(For details on supported processors please refer to the Fujitsu website)
Graphics
Intel® HD graphics 2000 (integrated in the processor), DirectX 10.1 compliant, Dynamic Video Memory (DVM), upgradeable with PCI Express x16 graphics card
DVI & VGA ports
Audio
Realtek ALC 663, 5.1-channel, High Definition Audio Codec
Stereo Audio / 5.1 Multichannel Audio / Buzzer
LAN
Realtek RTL8111E Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support
Features
FAN controlled CPU / AUX1
TEMP monitored CPU / ONB
External Connectors
1 x PS/2 Maus
1 x PS/2 Tastatur
1 x LAN (RJ-45)
1 x VGA
1 x DVI
4 x USB2.0
Audio Mic. In / Line in / Line out (or driver configuration)
Internal Connectors
2 x DIMM Sockets (DDR3 1333)
1 x PCI Express x16 Slot (Gen2)
2 x PCI Express x1 Slot (Gen2)
4 x SATA-300
1 x Frontpanel Audio (9-Pin, HD Audio)
4 x USB 2.0 ports via header
CPU & AUX1 Fan Connectors
1 x Power 24 pin (BTX)
1 x 4 pin (12V processor supply)
Power Specification
ATX- 24 Pin or ATX- 20 Pin Power Supply required
Support for Soft-Off Power Supplies
5V and 3.3V Supply Voltage on PCI Slots (PCI Rev. 2.3)
3.3V Auxiliary Supply Voltage on PCI Slots (Wake-Up Function)
On board CPU Voltage Regulator, 5V / 2.5A Auxiliary Power
required for USB Wake-Up from Save-to-RAM, Save-to-Disk
AMI UEFI BIOS
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5
Board size Ultra small μATX: 218 x 183mm
Security Features
Recovery BIOS, System and BIOS Password, Boot Sequence Control, USB- Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS.
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Logo Boot Option / Intel On Screen Branding
Lieferumfang

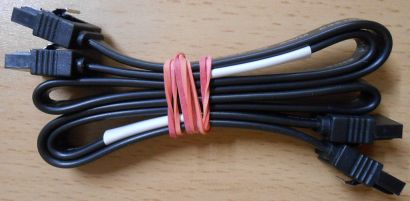

Das Mainboard, Blende und 2x schwarze SATA Datenkabel - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
