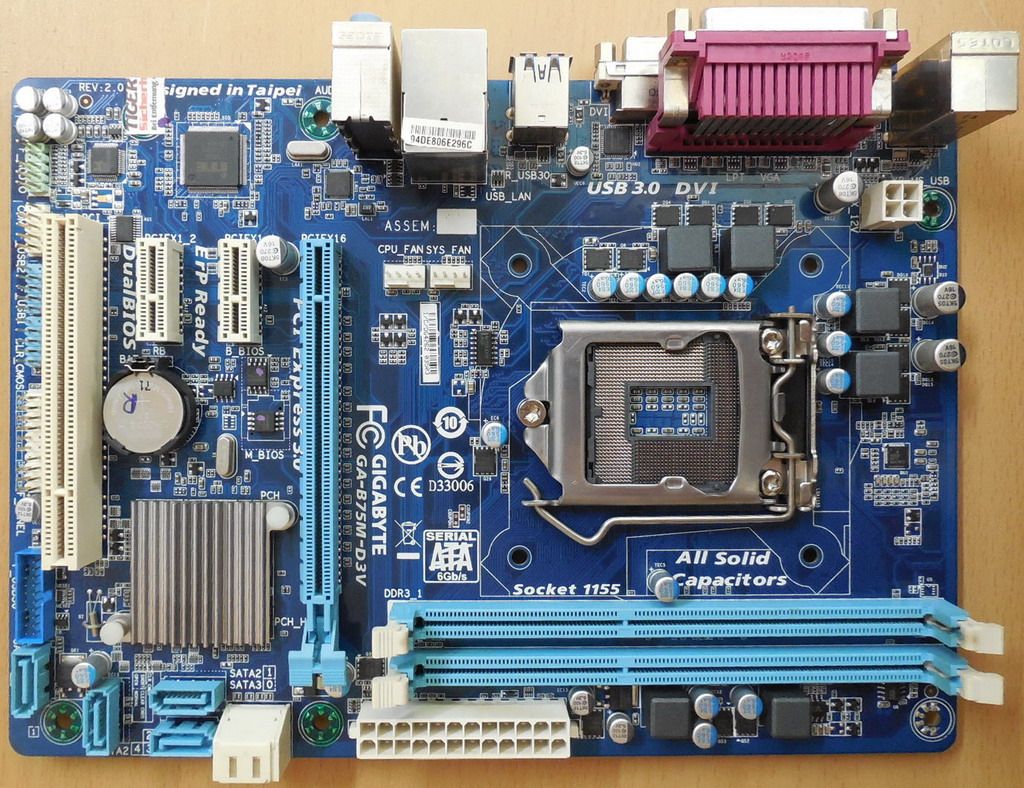

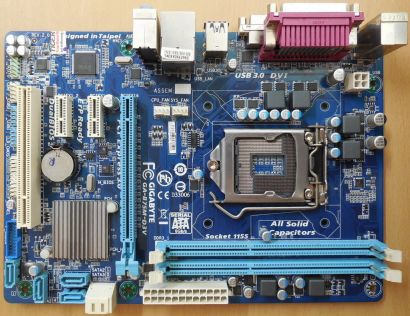

Gigabyte GA-B75M-D3V Rev2.0 Mainboard +Blende Intel B75 Sockel 1155 DDR3* m1172

Products description

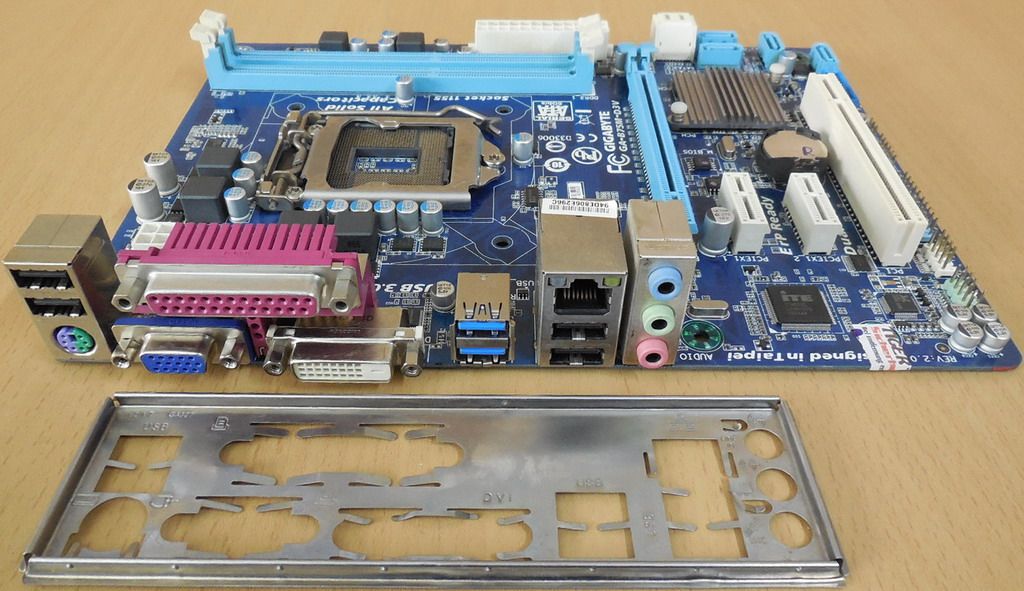

Gigabyte GA-B75M-D3V Rev 2.0 Mainboard +Blende Intel B75 Sockel 1155 DDR3 VGA DVI USB3.0

Technische Daten

Prozessor

Support for Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors in the LGA1155 package

L3 cache varies with CPU

Some Intel® Core™ processors require a graphic card. Please refer "CPU support List" for more information.

Chipsatz

Intel® B75 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 1600(Intel® 22nm Ivy Bridge CPU required)/1333/1066 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile -XMP- memory modules (Intel® 22nm Ivy Bridge CPU that supports DDR3 1600 MHz required)

Please refer to the "Memory Support List" for more information.

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Onboard Grafik

Integrated Graphics Processor:

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200 (The DVI-D port does not support D-Sub connection by adapter.)

Audio

Realtek® ALC887 2/4/5.1/7.1-channel High Definition Audio codec (To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.)

LAN

Realtek® RTL8111F GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express 3.0 x16 slot, running at x16 (depends on CPU and graphics card compatibility)

2 x PCI Express 2.0 x1 slots

1 x PCI slot

Storage Interface

1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices

USB

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

In Windows XP, the Intel® USB 3.0 ports can support up to USB 2.0 transfer speed.

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x SATA 6Gb/s connector

5 x SATA 3Gb/s connectors

1 x 4-Pin CPU fan header

1 x 4-Pin system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port COM header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x parallel port

1 x D-Sub port

1 x DVI-D port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE® I/O Controller Chip

H/W Überwachung

System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU overheating warning; CPU/System fan fail warning; CPU/System fan speed control (depends on the cooler you install.)

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress Install; EasyTune (Available functions may differ by motherboard model); ON/OFF Charge

Betriebssystem

Support for Windows 10/8/7/XP

Form Factor

Micro ATX Form Factor; ca. 24.4cm x 17.4cm

Lieferumfang
