Products description

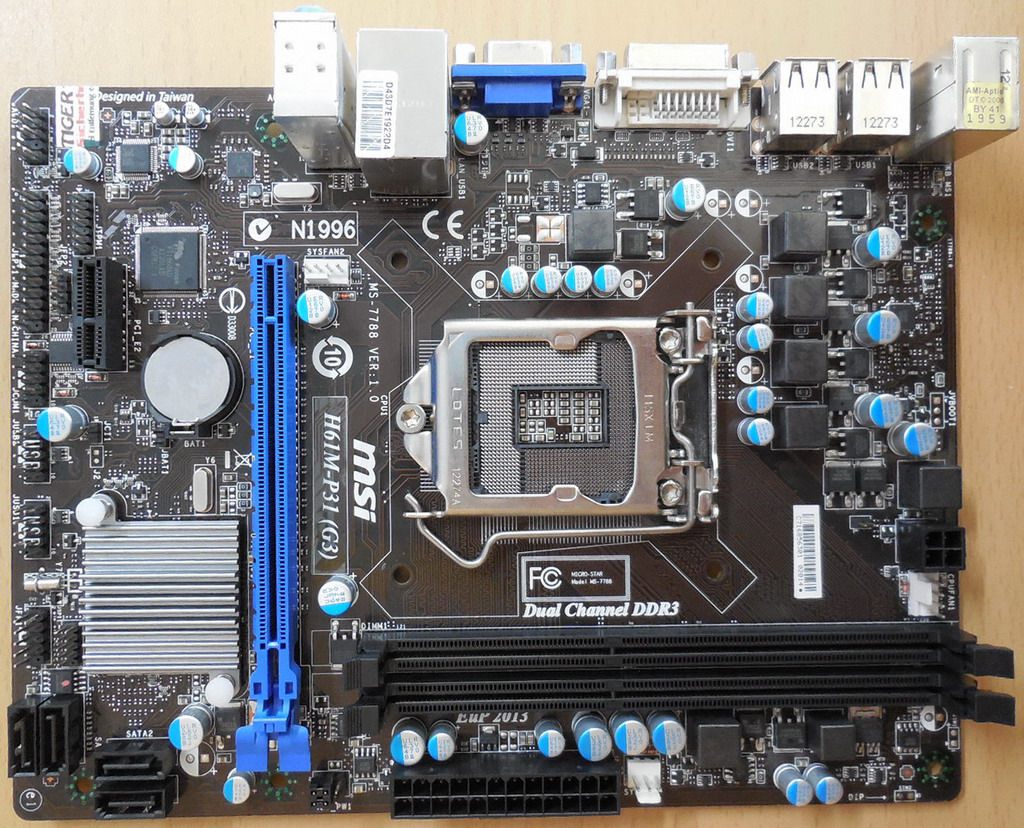

MSI MS-7788 Ver 1.0 H61M-P31 (G3) Mainboard Sockel 1155 PCIe DDR3 LAN VGA DVI
Technische Daten
CPU
3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only
Chipset
Intel® H61 (B3) Chipset
Main Memory
Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600(only supported with Intel® Ivy Bridge processors) DRAM, 16GB Max.
Supports Dual channel mode
Slots
1 x PCI Express gen3 x16 slot (supports up to PCIe 3.0 x16 speed)
1 x PCI Express gen2 x1 slot
On-Board SATA
Supports 4 x SATAII ports (SATA1~4) by H61 (B3) PCH; supports up to 3Gb/s transfer speed
Audio
Chipset integrated by Realtek® ALC887: Flexible 8-channel audio with jack sensing; Compliant with Azalia 1.0 Spec; Meet Microsoft Vista Premium spec
Gigabit LAN
Supports 10/100/1000 Fast Ethernet by Realtek 8111E
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x 4-pin CPU FAN connector
1 x 4-pin System FAN connector
1 x 3-pin System FAN connector
1 x Chassis intrusion switch connector
1 x Front panel audio connector
2 x Front panel connector
1 x Clear CMOS jumper
1 x JUSB_PW1 USB Power jumper
1 x TPM Module connector
1 x Serial port connector
1 x Parallel port connector
1 x JSPI1 connector
2 x USB 2.0 connector support additional 4 ports
4 x Serial ATA II connectors
Back Panel I/O Ports
1 x DVI-D port (can only work with CPUs with GPUs core inside)
1 x PS/2 keyboard
1 x PS/2 mouse
6 x USB 2.0 ports
1 x RJ45 LAN jack
1 x Sub-D VGA port (can only work with CPUs with GPUs core inside)
1 x 3 in 1 audio jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications
Dimension & Mounting
22.6cm(L) x 17.3cm(W); Micro-ATX Form Factor; 6 mounting holes
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
