Products description

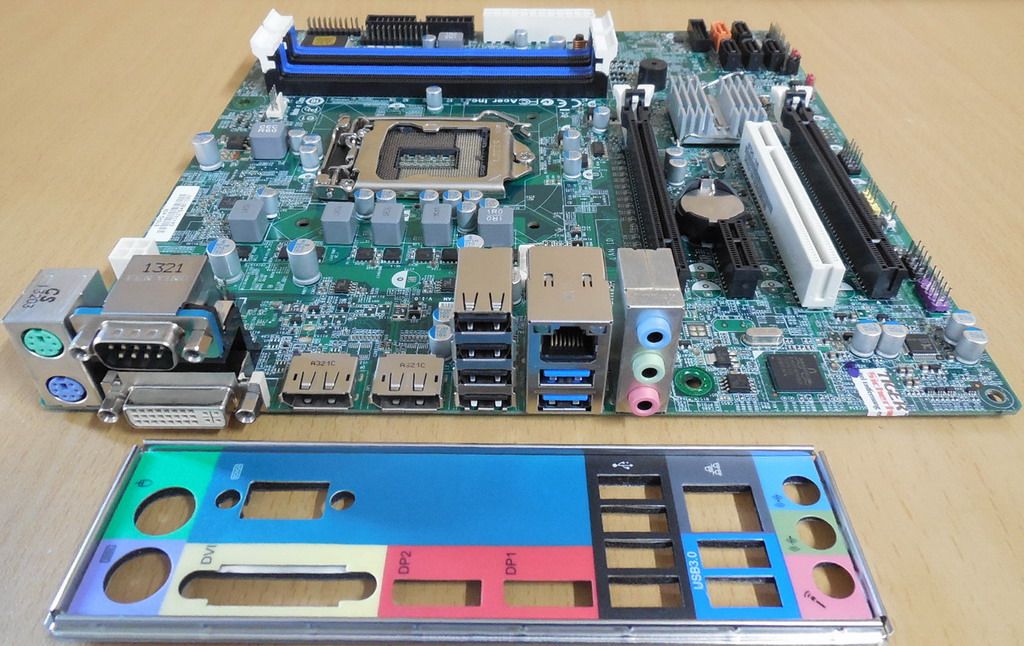

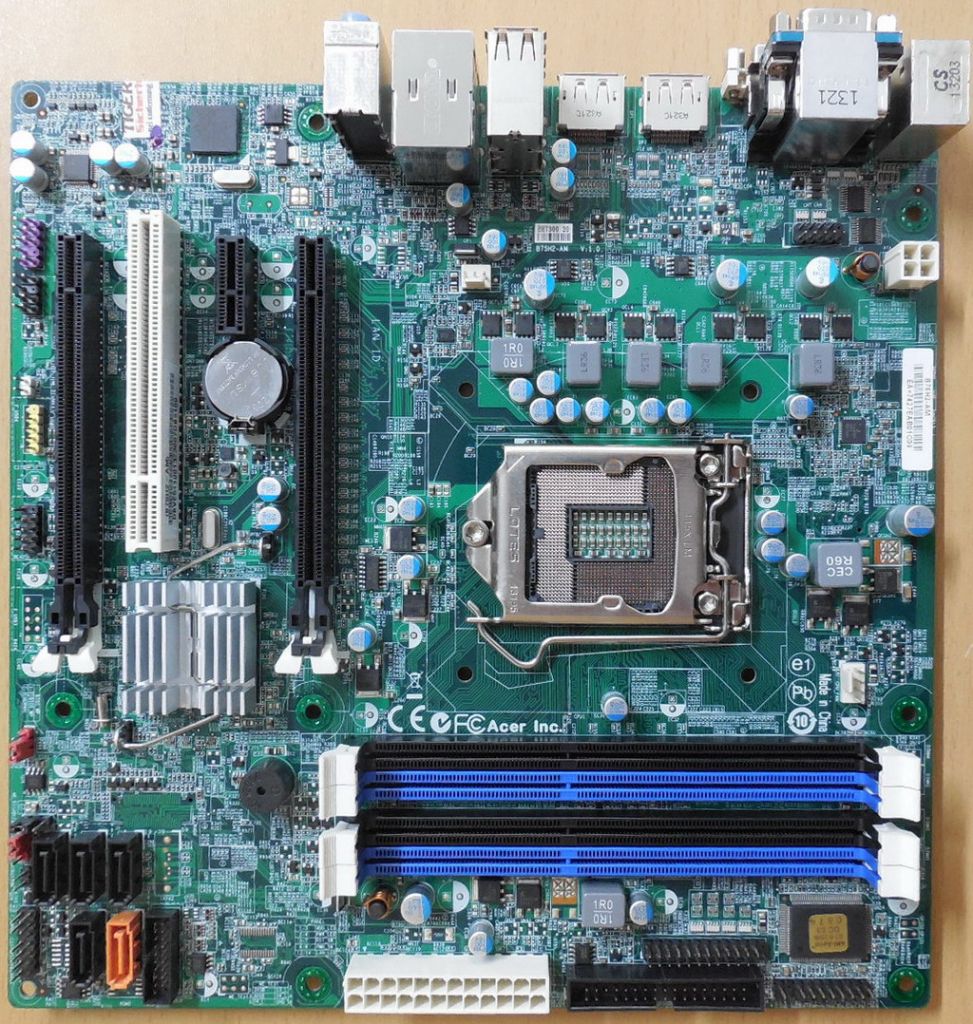

Acer Veriton M4620G ECS B75H2-AM V1.0 Mainboard + Blende Intel B75 Sockel 1155 DDR3 2x DisplayPort DVI USB3.0
Technische Daten
Prozessor
Support for 2th/3rd Gen. Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors in the LGA1155 package
Supports Intel® Turbo Boost 2.0-Technology
Supports Intel® Hyper-Threading-Technology
L3 cache varies with CPU
Some Intel® Core™ processors require a graphic card. Please refer "CPU support List" for more information.
Chipsatz
Intel® B75 Express Chipset
Supports Intel® Small Business Advantage, Intel® Rapid Start-Technology and Intel® Smart Connect-Technology
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Please refer to the "Memory Support List" for more information.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Onboard Grafik
Intel® integrated HD Graphics solution depending on CPU
Intel® Dynamic Video Memory Technology (Intel® DVMT)
Supports Microsoft® DirectX® 11
2 x DisplayPort
1 x DVI-I port
Upgradeable via PCI Express® 2.0 x16 graphics card
Audio
Realtek® ALC662 6-channel 5.1 High Definition Audio codec
LAN
Broadcom® BCM5761 GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express 2.0 x16 slot
1 x PCI Express 2.0 x16 slot (wired as x4 connectivity)
1 x PCI Express 2.0 x1 slot
1 x PCI 2.3 slot
Storage Interface
1 x SATA 6Gb/s connector (SATA 1) supporting up to 1 SATA 6Gb/s device
4 x SATA 3Gb/s connectors (SATA 3-6) supporting up to 4 SATA 3Gb/s devices
USB
Up to 4 USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Up to 7 USB 2.0/1.1 ports (4 ports on the back panel, 3 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector (orange)
4 x SATA 3Gb/s connectors (black)
1 x Floppy Disk Drive (FDD) connector
1 x 4-Pin CPU fan header
1 x 3-Pin system fan header
1 x Front Panel header
1 x Chassis Intrusion header
1 x Front Panel audio header
1 x Front Panel USB 3.0 header
1 x USB 2.0 header for 2 additional ports
1 x USB 2.0 header for 1 additional port
1 x COM2 header
1 x Parallel Port header
1 x TPM header
1 x Clear CMOS jumper
1 x ME Disable jumper
1 x Bios Flash Protect jumper
1 x Internal Speaker header
1 x Buzzer
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x COM port
2 x DisplayPort
1 x DVI-I port
2 x USB 3.0 ports
4 x USB 2.0 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
BIOS
64 MB SPI Flash-ROM
Use of licensed AMI EFI BIOS
Form Factor
Micro ATX Form Factor; ca. 24.4cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
