Products description

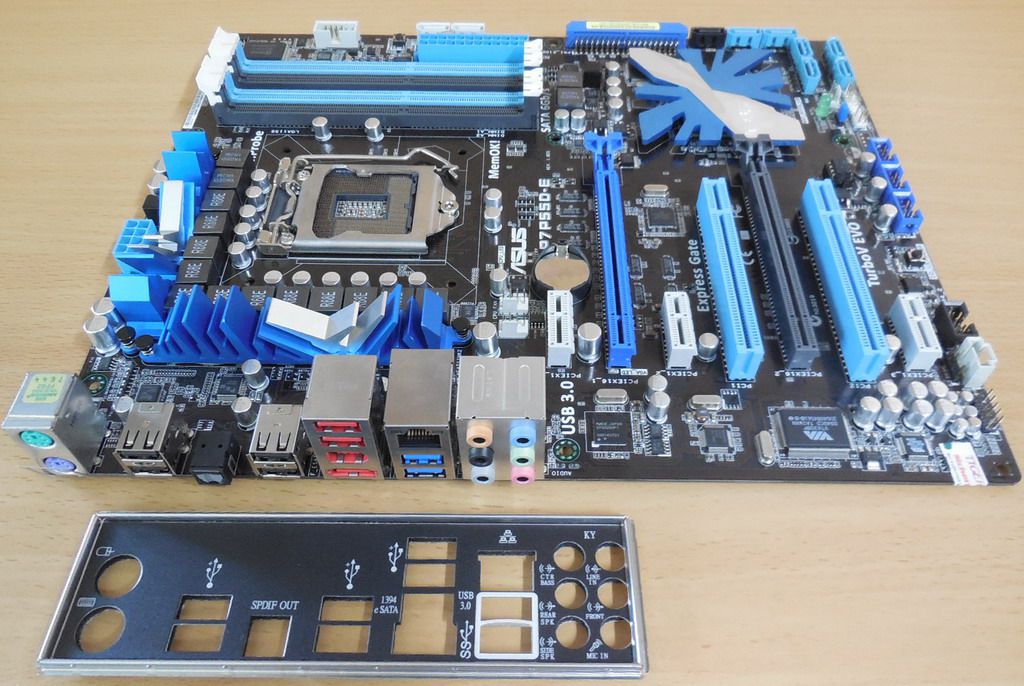

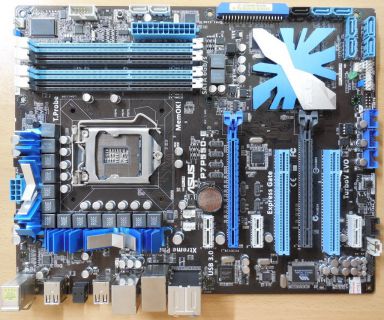

Asus P7P55D-E Rev 1.02G Mainboard + Blende Intel Sockel 1156 DDR3 PCIe GBLAN
Technische Daten
CPU
Intel Socket 1156 Core™ i7 Processor / Core™ i5 Processor / Core™ i3 Processor
Supports Intel® Turbo Boost Technology
Chipsatz
Intel P55 Express Chipset
Memory
4 x DIMM, 16 GB, DDR3 1600/2200(O.C.)*/1333/1066 Non-ECC, Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
**Refer to the Website or this user manual for the Memory QVL(Qualified Vendors Lists).
Expansion Slots
1 x PCIe 2.0 x16 (single at x16)
1 x PCI Express 2.0 x16 slot (@x4 mode, 2.5GT/s, black slot)
3 x PCI Express 2.0 x1 (2.5GT/s, gray slots)
2 x PCI
Multi-GPU Support
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage
Marvell® SATA 6Gb/s controller: 2 x SATA 6.0 Gb/s ports (gray)
Intel® P55 Express Chipset built-in: 6 x SATA 3.0 Gb/s ports; 0,1,5,10 Intel Matrix Storage Technology Support RAID
JMicron® JMB363 PATA and SATA controller: UltraDMA 133/100/66 for up to 2 PATA devices; 1 x SATA 3Gb/s port (black); 1 x External SATA 3Gb/s port
LAN
Realtek® 8112L Gigabit LAN controller featuring AI NET2
Audio
VIA® VT1828S 8-Channel High Definition Audio CODEC
- Absolute Pitch BD192/24
- DTS Surround Sensation UltraPC
- BD audio layer Content Protection
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Optical S/PDIF out ports at back I/O
IEEE 1394
VIA® 6308P controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
NEC® USB 3.0 controller: 2 x USB 3.0 ports (blue; at back panel)
Intel® P55 Express Chipset: 12 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
ASUS AI Lifestyle Features
ASUS IO Level UP for Ultra Performance: True USB 3.0 or True SATA 6Gb/s Support
ASUS Hybrid Processor - TurboV EVO: Auto Tuning, TurboV and Turbo Key;
16 Hybrid Phase: T.Probe Technology for Active Cooling; 12+2 Phase Power Design (*16 Hybrid Phase = 12+2 Phase x T.Probe)
ASUS Hybrid OS - Express Gate
ASUS Xtreme Design
ASUS Exclusive Features: MemOK!; ASUS EPU
ASUS Quiet Thermal Solution: ASUS Fanless Design: Stylish Heat-sink solution; ASUS Fanless Design: Stack Cool 3; ASUS Fan Xpert
ASUS Crystal Sound: ASUS Noise Filter
ASUS EZ DIY: ASUS Q-Shield; ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3, ASUS EZ Flash 2; ASUS MyLogo 2; Multi-language BIOS
ASUS Q-Design: ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Slot; ASUS Q-DIMM
Overclocking Features
Precision Tweaker - vCore: Adjustable CPU voltage at 0.0125V increment 0.00625V - vIMC: 97-step IMC voltage control; vDRAM Bus: 104-step DRAM voltage control; vPCH: 36-step chipset voltage control; vCPU_PLL: 56-step reference voltage control
SFS (Stepless Frequency Selection): Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment; PCI Express frequency tuning from 100MHz 200MHz at 1MHz
Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 mouse port (Green)
1 x PS/2 Keyboard (Purple)
6 x USB 2.0/1.1
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x External SATA 3Gb/s
1 x LAN(RJ45) port
2 x USB 3.0/2.0 ports (blue)
8-Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x COM port connector
2 x SATA 6.0Gb/s connectors (gray)
7 x SATA 3.0Gb/s connectors (blue from P55, black from JMB363)
2 x Chassis Fan connector (1x4-pin, 1x3-pin)
Front panel audio connector (AAFP)
1 x S/PDIF Out Header
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel (Q-Connector)
1 x MemOK! button
1 x IO Level UP button
1 x IDE connector
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Power Fan connector
BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME
Form Factor
ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
