Products description

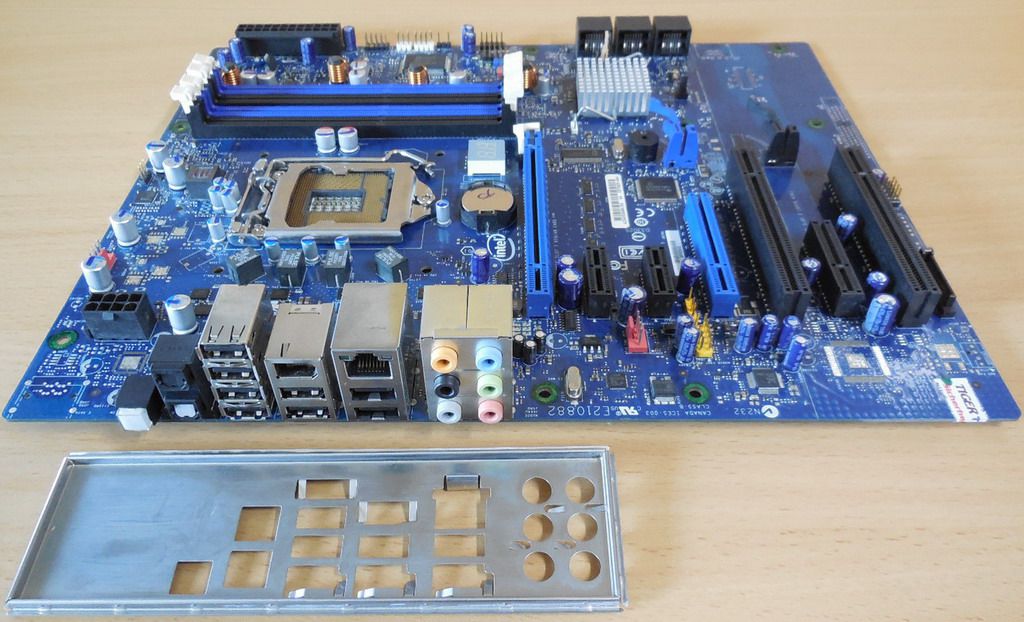

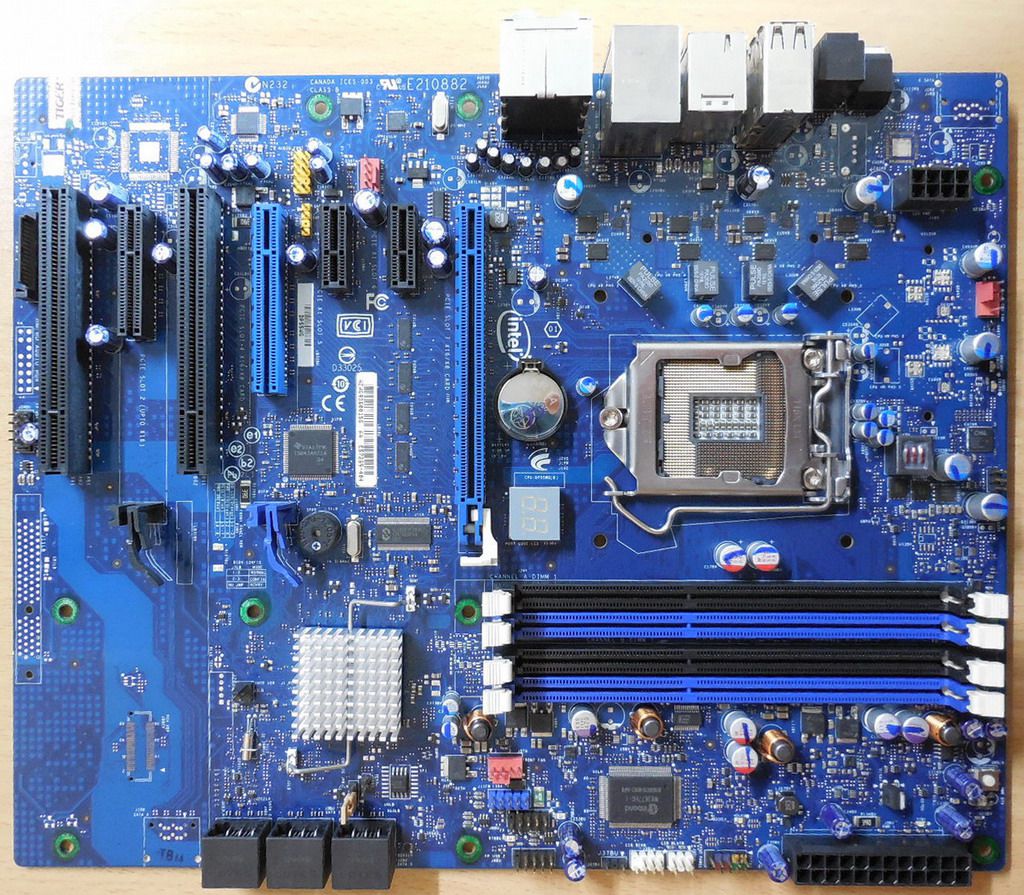

Intel DP55WG Rev E57269-404 Mainboard + Blende Sockel 1156 DDR3 IEEE1394
Technische Daten
CPU
Support for an Intel® processor in the LGA1156 package
Chipset
Intel® P55 Express Chipset consisting of the Intel P55 Express Chipset Platform Controller Hub (PCH)
Memory
4 x 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets arranged in two channels
Support for DDR3 1600+ MHz, DDR3 1333 MHz, and DDR3 1066 MHz DIMMs
Support for non-ECC memory
Support for up to 16 GB of system memory
Expansion Capabilities
1 x PCI Express 2.0 x16 port
1 x PCI Express 2.0 x8 port
1 x PCI Express 2.0 x4 port
2 x PCI Express 2.0 x1 ports
2 x PCI bus connectors
Storage
6 x Serial ATA (SATA) channels (3.0 Gb/s) via the PCH
RAID
Intel® Matrix Storage Technology for Serial ATA
LAN Support
Support Intel 82578DM Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
Audio
Independent multi-streaming 8-channel (7.1) audio and 2-channel audio subsystem, featuring:
Intel® High Definition (Intel® HD) Audio interface Realtek ALC889 codec
HD Audio front panel header
Onboard 4-pin S/PDIF out connector
Back panel S/PDIF out and in optical connectors
USB
14 x USB 2.0 ports (6 ports at mid-board, 8 ports at back panel)
IEEE1394 Firewire
2 x IEEE1394 ports (1 port at mid-board, 1 port at back panel)
Legacy I/O Control
Legacy I/O Controller that provides Consumer Infrared (CIR) support
Back Panel I/O Ports
1 x Back to BIOS Button
1 x Optical SPDIF Out
1 x Optical SPDIF In
1 x IEEE1394 Firewire
1 x VGA Sub-D
1 x LAN RJ45 port
8 x USB 2.0/1.1
8-channel (7.1) Audio I/O
Internal I/O Connectors
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x 4-pin CPU Fan connector
1 x J1VR connector
2 x 4-pin Chassis Fan connectors
1 x Front Audio Panel connector
1 x Front Panel connector
1 x IEEE1394 Firewire connector
3 x USB connectors support additional 6 USB ports
1 x SPDIF header
6 x SATA connectors
1 x Back panel CIR transmitter (output) header
1 x Front panel CIR receiver (input) header
1 x Chassis Intrusion connector
1 x Alternate front panel power LED connector
1 x Speaker
1 x POST code LED display
1 x Auxiliary PCI Express graphics power connector (SATA-style)
BIOS
Intel® Platform Innovation Framework for extensible firmware interface
16 Mb symmetrical flash memory device
Support for SMBIOS
Intel® Express BIOS Update
Power Management
Support for Advanced Configuration and Power Interface (ACPI)
Suspend to RAM (STR)
Wake on USB, PCI, PCI Express, LAN, CIR, and front panel
ENERGY STAR* capable
Hardware Management
Hardware monitor with: Four fan sensing inputs used to monitor fan activity; Intel® Precision Cooling Technology fan speed control; Voltage sensing to detect out of range values
Form Factor
ATX; ca. 304.80mm x 243.84 mm (12.00" x 9.60")
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
