Products description

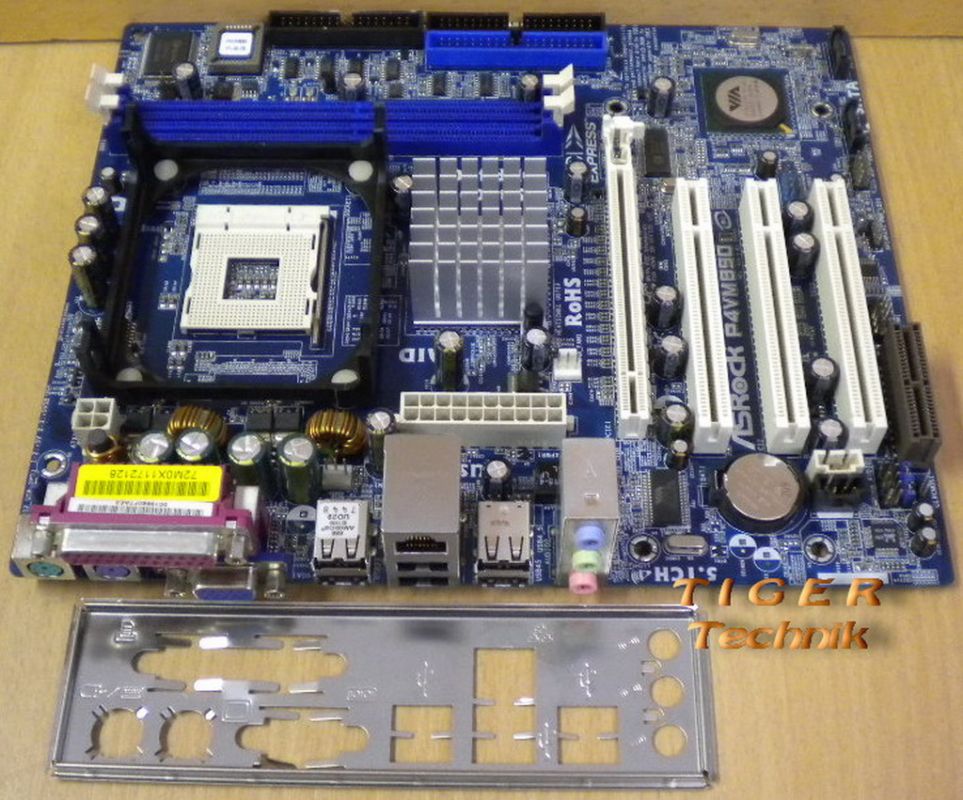

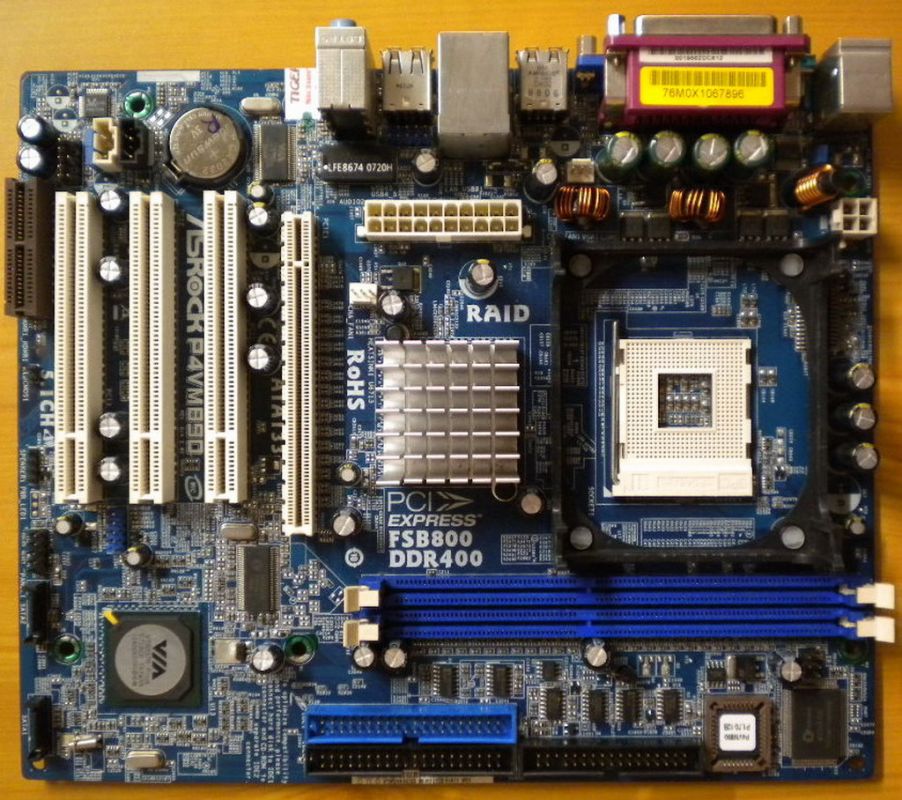

ASRock P4VM890 Rev 2.02 Mainboard+ Blende
Sockel 478 PCIe x16 SATA VGA LAN Audio
Technische Daten
CPU
- Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood, Willamette) processors
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
Chipset
- Northbridge: VIA® P4M890
- Southbridge: VIA® VT8237R Plus
Memory
- 2 x DDR DIMM slots
- Supports DDR400/333 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
Graphics
- Integrated VIA® UniChrome Pro 3D/2D Graphics
- DirectX 7.0 VGA
- Max. shared memory 64MB
Audio
- Realtek ALC653 5.1 channel AC'97 audio codec
LAN
- VIA® PHY VT6103
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN, Supports PXE
Slots
- 3 x PCI slots
- 1 x PCI Express x16 slot
- 1 x AMR slot
Connector
- 2 x SATA 1.5 Gb/s connectors, support RAID (RAID 0, RAID 1, and JBOD) and Hot Plug functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- AUX in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB45 ports on the I/O panel)
Rear Panel I/O
ASRock I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 1 x Serial Port (COM)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
OS
- Microsoft® Windows® 2000 / XP compliant
Certifications
- FCC, CE
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
