Products description

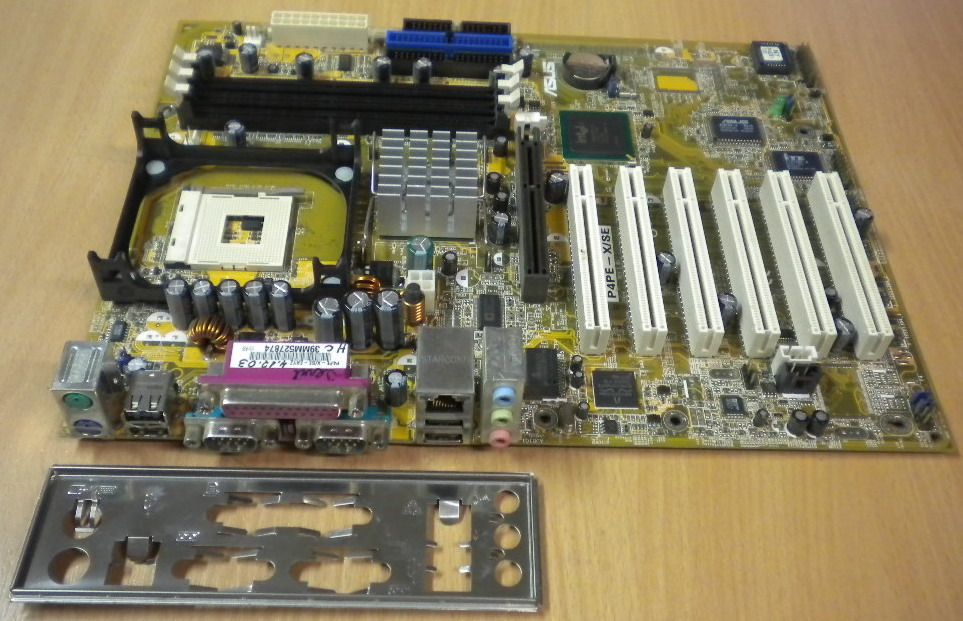

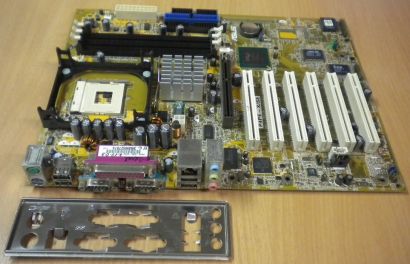

Asus P4PE-X/SE Mainboard + Blende
Technische Daten:
CPU
Socket 478 for Intel® Pentium® 4
On-die 512KB/256KB L2 cache with full speed
Intel® Hyper-Threading technology ready
New power design for up to 3.06 GHz or faster speed
Chipset
Intel 82845PE MCH
Intel 82801DB ICH4
Front Side Bus (FSB)
800*/533/400 MHz
(*A CPU with 800MHz FSB requires using a PC3200 DIMM)
Memory
3 x 184-pin DDR DIMM sockets for up to 2GB memory
Supports PC3200*/2700/2100/1600 unbuffered non-ECC DDR DIMMs
(*A PC3200 DIMM requires a CPU with 800MHz FSB)
Expansion slots
1 x AGP 4X (1.5V only)
6 x PCI
IDE
2 x UltraDMA100/66/33 connectors
Audio
ADI AD1980 6-channel audio CODEC
LAN
Broadcom® BCM4401 Fast Ethernet controller
Special features
ASUS JumperFree™ mode
ASUS EZ Flash
USB 2.0 ready
Power Loss Restart
SFS (Stepless Frequency Selection)
CPU throttle
Adjustable CPU V-CORE
Rear panel I/O
1 x Parallel port
2 x Serial ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0/USB 1.1 ports
1 x RJ-45 port
Line In/Line Out/Microphone ports
Internal I/O
1 x USB 2.0/1.1 connector for 2 additional USB ports
CPU/Chassis fan connectors
20-pin/4-pin ATX 12V power connectors
IDE LED connector
Chassis intrusion connector
GAME/MIDI connector
S/PDIF Out connector
CD/AUX audio connectors
Front panel audio connector
BIOS features
2Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, SM
BIOS2.3, CrashFree BIOS, ASUS EZ Flash
Industry standard
2.2, USB 2.0
Manageability
WfM 2.0. DMI 2.0, WOL/WOR by PME, chassis intrusion, SMBus
Form Factor
ATX form factor: 12 in x 9.0 in (30.5 cm x 22.9 cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
