Products description

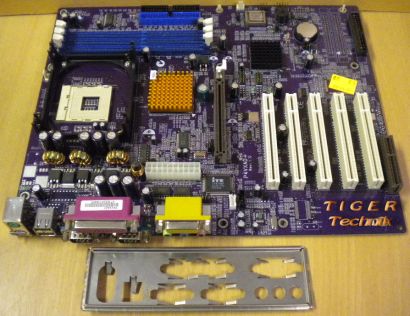

Elitegroup ECS P4VXAD+ Rev: 1.0 Mainboard mit Blende
Technische Daten:
CPU
º Socket 478 for latest Intel Pentium 4 / Celeron processor
º FSB 533/400 MHz
CHIPSET
º VIA® P4X333 & VT8235
º North Bridge: VIA® P4X333
º South Bridge: VIA® VT8235
MEMORY
º 3 x184-pin DDR DIMM socket support up to 3 GB
º Support DDR333/266 DDR SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT
º 1 x AGP 4X slot
º 5 x PCI slots
º 1 x CNR slot
STORAGE
º Support by VIA® VT8235
• 4 x Ultra DMA133/100/66 devices
AUDIO
º C-Media CMI9739A 6-channel audio CODEC
º Compliant with AC'97 2.2 specification
REAR PANEL I/O
º 1 x PS/2 keyboard & PS/2 mouse connectors
º 2 x USB ports
º 1 x Parallel port (LPT)
º 2 x Serial port (COM1)
º 1 x Game port
º 1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
º 1 x 20-pin ATX Power Supply Connector
º 1 x FDD connector supports one 360K~2.88MB FDD
º 2 x IDE connectors
º 1 x IrDA for SIR header
º 1 x Speaker header
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x SPDIF out header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x CD in header
º CPUFAN/CASFAN connectors
SYSTEM BIOS
º Award BIOS with 2Mb Flash ROM
º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification
FORM FACTOR
º ATX Size, 305mm*244mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
