Products description

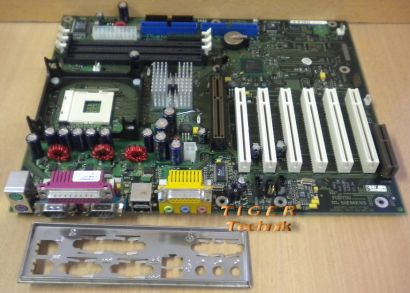

Fujitsu Siemens D1325-B12 GS 1 mit Blende
Original FSC Ersatzteil !!!
- System board in ATX format
- mPGA478 Intel processor Pentium 4 with 400 MHz Front Side.
Pentium 4 processors support MMX technology and Intel Streaming SIMD Extensions. The size and frequency of first-level cache and second-level cache are dependent upon the processor used.
- Intel chipset 845
- Analogue Devices AD1885 (AC'97) Audio Codec
internal: Stereo CD-In, Stereo AUX-In
external: Mono Micro-In, Stereo Line-In, Stereo Line-Out, Game/Midi port
Headphones via audio front panel
- 3 DIMM slots for 32 MB to 3 GB main memory (SDRAM memory modules meet the PC133 specification) with ECC
- Flash BIOS
- Power-on functions: Wake on RTC − Wake on LAN − Wake on PCI Cards −
Wake on USB − COM1 wake up support (standby)
- Energy saving functions:
− APM and ACPI (requires an operating system that supports ACPI)
− Switching on/off, standby mode, suspend mode via on/off switch
− Switching on/off via software
- Security functions:
− Processor serial number
− System, Setup and Keyboard password
− parallel and serial ports can be deactivated
− Floppy disk write-protection via BIOS Setup
− Boot hard disk virus warning function
− Flash BIOS and EEPROMs (on the memory modules) virus protection function.
- 6 PCI slots
PCI slots support 3.3 V main and auxiliary voltages.
- 1 AGP slot
The AGP slot supports 1x, 2x and 4x AGP mode. Only AGP boards with 1.5 V are supported.
- 1 CNR type A slot shared with PCI slot
- IDE hard disk controller connected to PCI bus for up to four IDE drives
(e.g. IDE hard disk drives, ATAPI CD-ROM drives)
The IDE hard disk controller are ATA33/66/100, ultra DMA capable and support PIO modes 0-4.
- Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)
- The system board supports booting from a 120 MB IDE floppy disk drive.
- Real-time clock/calendar with integrated battery backup
- 1 internal WOL interface
- 2 internal USB ports (C / D)
- 1 external parallel port (ECP- and EPP-compatible)
- 2 external serial ports (16C550 compatible with FIFO)
- 2 external PS/2 ports for keyboard and mouse
- 2 external USB ports (A / B)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
