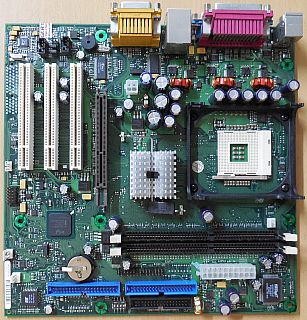

Fujitsu Siemens D1331-A10 GS 2 Mainboard +Blende Intel Sockel 478 DDR Audio LAN* m291

Products description

Fujitsu Siemens D1331-A10 GS 2 Mainboard + Blende Intel Sockel 478 DDR Audio LAN

Technische Daten

Hersteller Fujitsu Siemens Computers

Model D1331-A10 GS 2

CPU-Unterstützung Intel® Pentium 4 mit 400MHz FSB

Sockel Intel® 478

Chipsatz Intel® 845D

RAM 2 x 184-pin DDR1 DIMM-Steckplätze; max. 2 GB Hauptspeicher; Single Channel DDR1 PC-2100/266MHz SDRAM

LAN Fast Ethernet Controller with 10/100 MBit/s

Audio Analog Devices AD1885 AC´97 Audio Codec

Erweiterungssteckplätze 1x AGP 4x (1.5V); 3x PCI (3.3V)

Intern Echtzeituhr/Kalender mit Batteriepufferung

2 x IDE ATA 33/66/100 Ports

1 x Floppy Port (Supports 720K, 1.44Mbyte and LS120)

1 x 3-pin FAN1 Connector

1 x 3-pin FAN2 Connector

1 x Audio Front Panel Connector

1 x USB_C+D Connector für insgesamt 2 weitere USB Ports z.B. via Blende

1 x CD_IN Connector

1 x AUX_IN Connector

1 x 20-pin ATX Power Connector

1 x 4-pin 12V Processor Supply

1 x Buzzer

1 x Chassis Intrusion Connector

1 x WoL Connector

1 x Front Panel Connector

Externe Anschlüsse 1 x PS/2 Maus, 1 x PS/2 Tastatur, 2 x Seriell, 1 x Parallel, 1 x (RJ-45) LAN, 2 x USB, 1 x Line-In, 1 x Line-Out, 1 x Mic, 1 x Game/Audio Port

Power-on functions Wake on RTC; Wake on LAN; Wake on PCI Cards; Wake on USB; COM1 wake up support (standby)

Energy saving functions APM and ACPI (requires an operating system that supports ACPI); Switching on/off, standby mode, suspend mode via on/off switch; Switching on/off via software

Security functions System, Setup and Keyboard password; Cover monitoring: cover monitoring reports when the cover has been opened without authorisation: parallel and serial ports can be deactivated; Floppy disk write-protection via BIOS Setup; Boot hard disk virus warning function; Flash BIOS and EEPROMs (on the memory modules) virus protection function.
