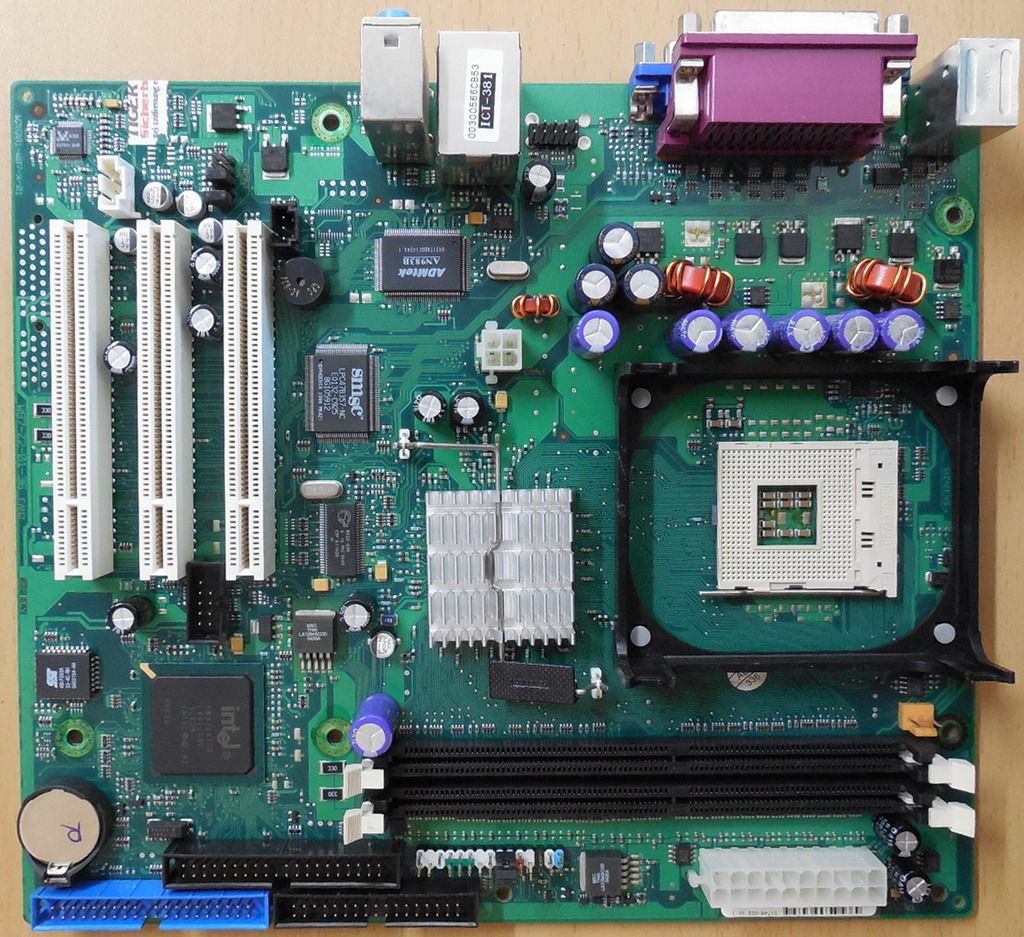

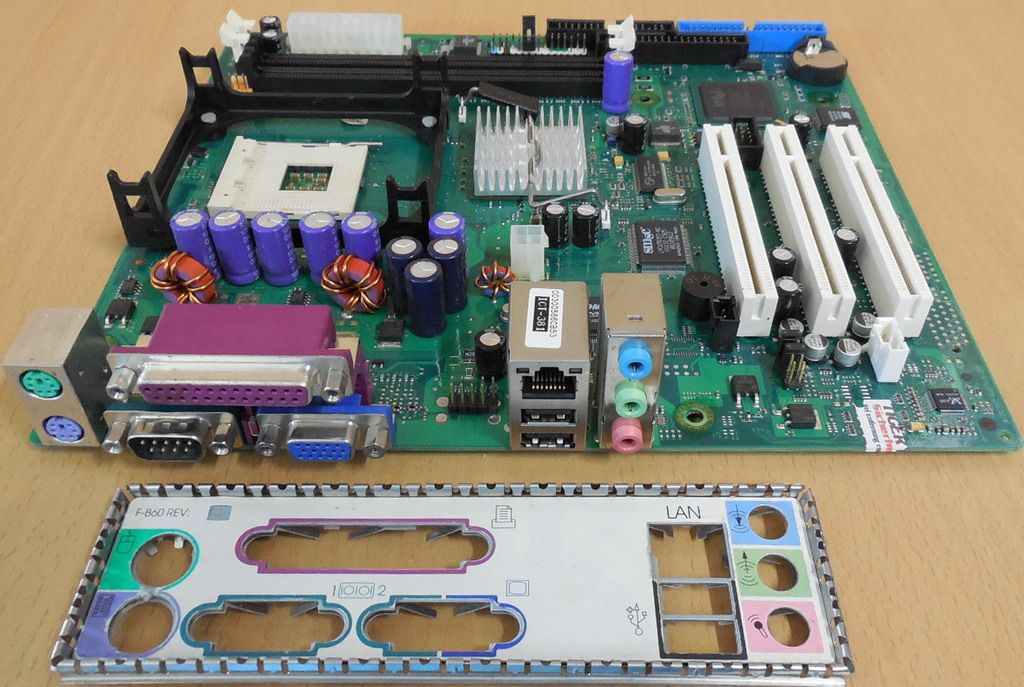

Fujitsu Siemens D1740-D20 GS1 Mainboard + Blende Intel 845GV Sockel 478 DDR VGA LAN Audio PCI

Technische Daten

Hersteller Fujitsu Siemens Computers (FSC)

Model D1740-D20 GS 1

CPU-Unterstützung Intel® Pentium® 4 / Intel® Celeron® with 400/533 MHz FSB (For details on supported processors please refer to the Fujitsu Website)

Sockel Intel® 478

Chipsatz Intel® 845GV

Memory 2 x 184-Pin DDR 2.5V Steckplätze für ungepufferte non-ECC DDR200 (PC-1600) / DDR266 (PC-2100) / DDR333 (PC-2700) MHz DIMM Module; 64-Bit, max. 2 GB Hauptspeicher

LAN ADMtek AN983B Fast Ethernet Controller with 10/100 MBit/s (with WoL / Boot)

Audio Realtek® ALC 655, 6-channel AC´97 Sound

Erweiterungssteckplätze 3 x PCI

USB 6 x USB2.0 (2 x Rear Panel; 4 x via Header)

Intern Echtzeituhr/Kalender mit Batteriepufferung

1 x Floppy Drive Connector

2 x IDE Connectors

1 x 3-Pin CPU FAN Connector

1 x Buzzer

1 x SPDIF-Out Connector

2 x USB2.0 Connector für insgesamt 4 weitere USB Ports z.B. via Blende

1 x 20-Pin ATX Power Connector

1 x 4-Pin CPU 12V Connector

1 x Front Panel Connector

1 x Audio Front Panel Connector

1 x AUX-IN Connector

Externe Anschlüsse 1 x VGA Sub-D; 1 x Seriell; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Parallel; 2 x USB2.0, 1 x LAN, 1 x Line-In, 1 x Line-Out, 1 x Mic

Hardware Monitoring

FAN controlled CPU FAN1

TEMP monitored CPU

BIOS modified and adapted by Fujitsu Siemens Computers

Special Features

Silent Fan LT Independent temperature related processor fan and system fan control

Silent Drives Noise reduction for optical and hard disk drives

Recovery BIOS Restores a corrupted BIOS

Desk Update Simple driver update with Driver&Utilities DVD

Multi Boot Comfortable boot from any boot device

USB Security

Logo Boot
