Products description
Gigabyte GA-8GE667 Pro Rev. 1.0 Mainboard + Blende
Technische Daten:
Prozessor
Socket 478 for Intel® Pentium® 4 with HT Technology
Chipsatz
IntelR 82845GE GMCH
Intel® 82801DB ICH4
Intel® PRO/100 VE LAN chip
Realtek ALC650E Audio AC'97 CODEC
Super I/O: ITE I/O IT8712F chip
2 x 3M bit flash ROM
Front Side Bus
533/400 MHz FSB
Arbeitsspeicher
Type: DDR266/333 ( PC2100/2700) 184 pin (2.5v)
3 x DIMM
Max capacity: Up to 2 GB
Interne I/O Anschlüsse
1 x FDD
2 x UDMA ATA 100/66 Bus Master IDE
2 x USB 2.0 (4 ports by cable with rear USB bracket)
S/P DIF input/output (with rear bracket)
3 x cooling fan pin headers
CD/AUX in
Erweiterungssteckplätze
1 x AGP 4x, supports 1.5v display card only.
6 x PCI (PCI 2.2 compliant)
Rückseite I/O Panel
2 x USB 2.0 ports
1 x RJ45 LAN port
1 x LPT
1x COM port
1x VGA port
Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
PS/2 Keyboard/Mouse connector
1 x Game/Midi port
CPU/AGP/DIMM Einstellungen
CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
AGP Voltage / Clock adjustable via BIOS
DIMM Voltage / Clock adjustable via BIOS
Form Factor
ATX
30.5cm x 24.4cm
H/W Überwachung
System health status auto-detect and report by BIOS
H/W detect and report power-in voltage, CPU voltage, and Fan speed
Andere Funktionen
GIGABYTE patented DualBIOS™
IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.
Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Hier gehts zum Handbuch ---> http://www.gigabyte.com/products/product-page.aspx?pid=1428#ov
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

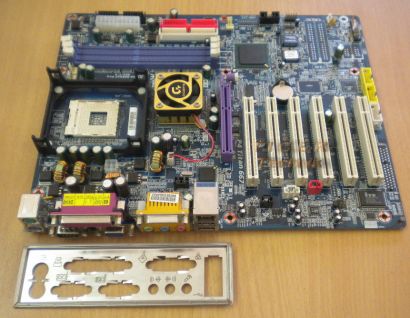

Abbildung ähnlich
