Products description

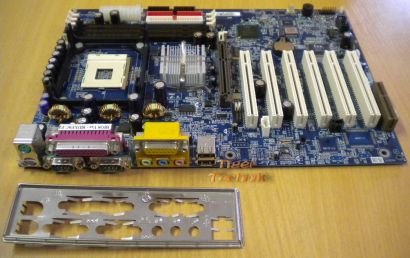

Gigabyte GA-8IDX Rev 1.0 P4 Titan Mainboard + Blende
Sockel 478 AGP PCI
Technische Daten
Prozessor
Socket 478 for Intel® FC-PGA2 Pentium® 4 processor in 478 pin package
400 MHz FSB
Chipsatz
Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
ITE I/O chip
Realtek ALC201A audio chip
Arbeitsspeicher
3 x 168-pin DIMM slot
Supports up to 3GB of PC133 SDR-SDRAM
Supports 64 bits data interface, 3.3V DIMM DRAM and ECC DIMM
Erweiterungssteckplätze
1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant
6 x PCI slots support 33MHz & PCI 2.2 compliant
1 x CNR (Communication Network Riser) slot
I/O
IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
2 x USB ports on board
2 x USB ports by cable
IrDA TX / RX header
Stromversorgung
ATX power connector and ATX 12V connector
Power-on by LAN, RTC, Modem & switch
Power-off by Windows 98/Me/2000/NT/XP shut down & switch
Supports USB device wake up
Form Factor
ATX form factor, 4 layers PCB (30.5 x 21.4 cm)
H/W Überwachung
CPU/System fan revolution detect
CPU fan control
System voltage detect
CPU overheat warning
BIOS
Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Andere Funktionen
Suspend-To-RAM (STR)
Supports Wake-On-LAN (WOL)
Supports Internal / External Modem Ring On
Includes 3 fan power connectors
Poly fuse for keyboard over-current protection
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
