Products description

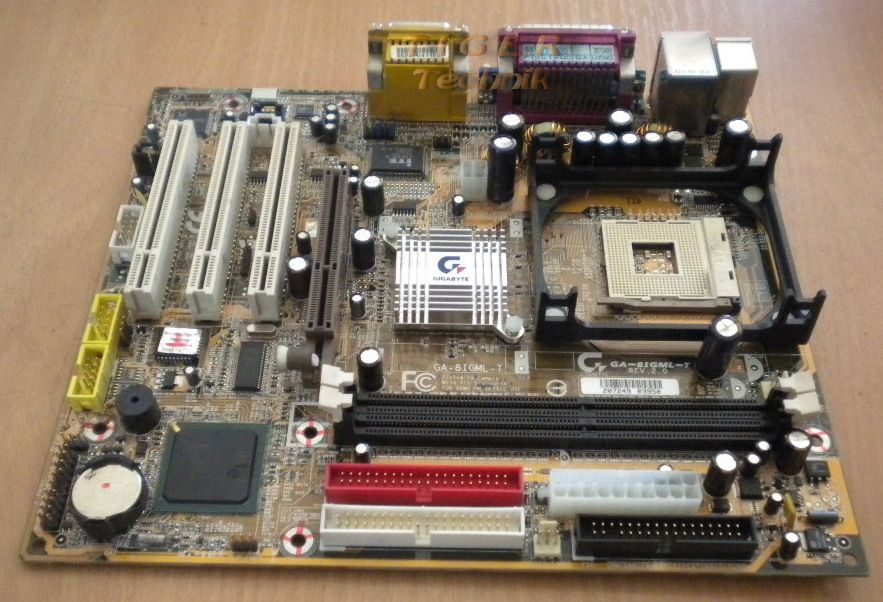

Gigabyte GA-8IGML-T Rev: 2.0

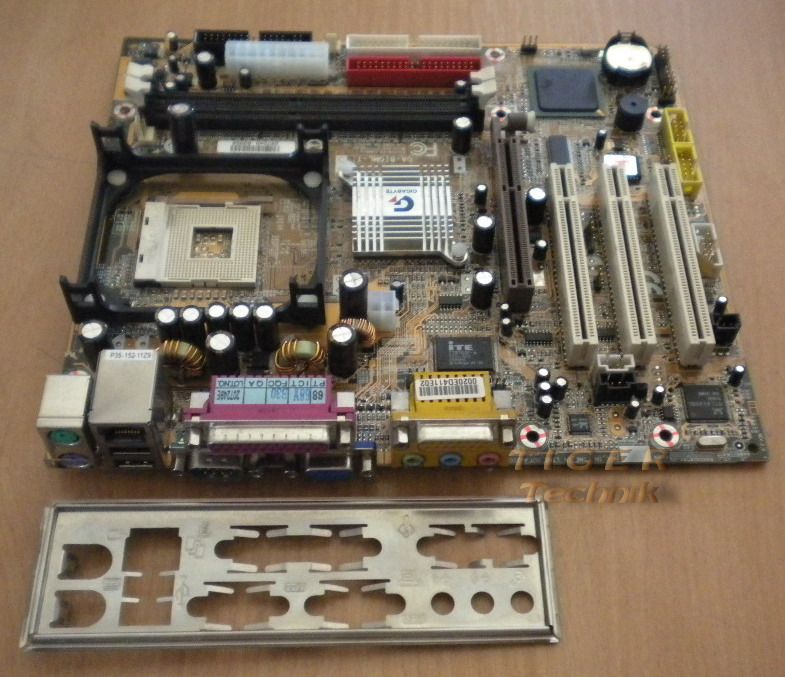

Mainboard mit Blende
Technische Daten:
CPU
Socket 478 for Intel® Pentium® 4 processor
533/400 MHz FSB
Chipset
Intel® 845G
Intel® 82801DB ICH4
Realtek 8100BL LAN chip
Realtek ALC650 PCI sound controller chip
Super I/O: ITE I/O IT8702 chip
2M bit flash ROM
Memory
Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
Max capacity: Up to 2 GB by 2 DIMM slots
Internal I/O Connectors
1 x FDD
2 x UDMA ATA 100/66 Bus Master IDE
2 x USB 2.0 connectors (4 ports by cable with rear USB bracket)
2 x cooling fan pin headers
CD/AUX in
Expansion Slots
1 x AGP 4x, supports 1.5v display card only
3 x PCI (PCI 2.2 compliant)
Back Panel Connectors
2 x USB 2.0 ports
1 x VGA output port
1 x RJ45 LAN port
1 x LPT, 1 x COM ports
Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
PS/2 Keyboard/Mouse connector
1 x Game/Midi port
CPU/AGP/DIMM setting
CPU FSB / multiplier adjustable via BIOS
Power
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
Form Factor
Micro ATX (24.3cm x 22.0cm)
Other Features
IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable Suspend to RAM (STR) Supports USB KB / MS wake up from S3 Poly fuse for keyboard over-current protection
@BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
Hier gehts zum Handbuch ---> http://www.gigabyte.com/products/product-page.aspx?pid=1324#manual
Lieferumfang
Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
