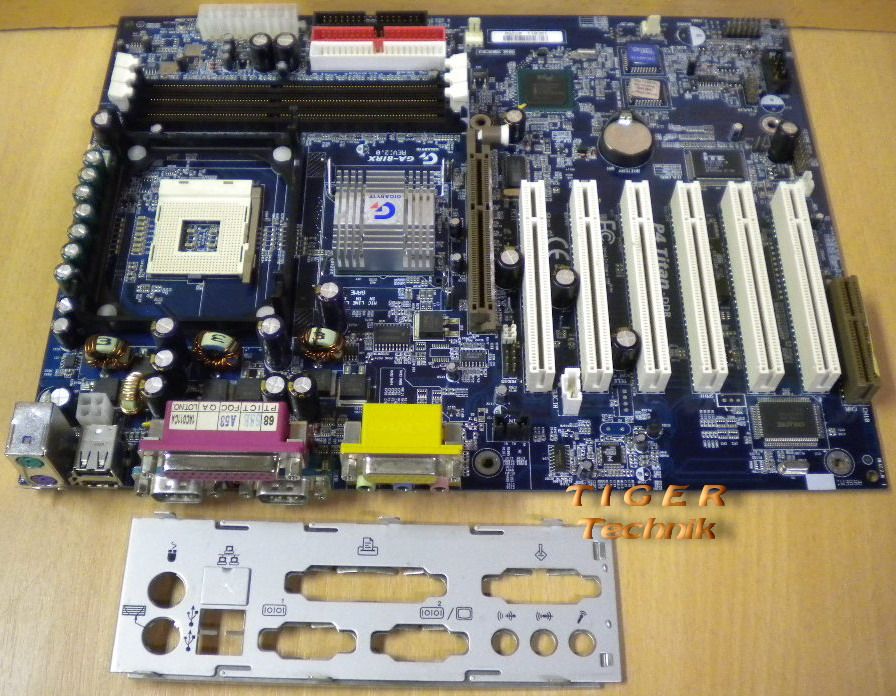

Gigabyte GA-8IRX Rev: 2.0 Mainboard + Blende
Technische Daten
Prozessor
Socket 478 for Intel® Micro FC-PGA2 Pentium®4 processor in 478 pin package
400 MHz FSB
CPU multiplier: 8, 9...24 setting from BIOS
CPU Host Frequency (MHz): 100~200 setting from BIOS
Chipsatz
Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
Creative CT5880 H/W audio supports 5.1-channel S/PDIF out
ITE I/O chip
Arbeitsspeicher
3 x 184-pin DDR DIMMs
Supports up to 2GB of DDR 200/266 memory
Supports 64 bits data interface, 2.5V DIMM DRAM and ECC DIMM
DDR frequence overclock setting from BIOS (based on Host/DRAM clock ratio)
DDR over-voltage setting (2.5V~2.8V) from BIOS
Erweiterungssteckplätze
1 x AGP 4X slot supports 4X mode and AGP 2.0 compliant.
6 x PCI slots support 33MHz and PCI 2.2 compliant
1 x CNR (Communication Network Riser) slot
I/O
IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
2 x USB ports on board; 2 x USB ports by cable
IrDA TX / RX header and case open function
H/W Überwachung
CPU/System fan revolution detect; CPU fan control
System voltage detect
CPU overheat warning
BIOS
Supports Multi-language BIOS, DualBIOS™ , @BIOS™ and Q-Flash utility
FWH(Firm Ware Hub) BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
Form Factor
ATX form factor, 4 layers PCB (30.5 x 22.9 cm)
Andere Funktionen
Suspend-To-RAM (STR)
Supports Wake-On-LAN (WOL)
Supports Internal / External Modem Ring On
Includes 3 fan power connectors
Poly fuse for keyboard over-current protection
Stromversorgung
ATX power connector and ATX 12V connector
Power-on by LAN, RTC, Modem and switch
Power-off by Windows 98/Me/2000/NT/XP shut down and switch
Infos finden Sie hier ---> http://www.gigabyte.de/Motherboard/GA-8IRX-rev-2x#sp
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
