Products description

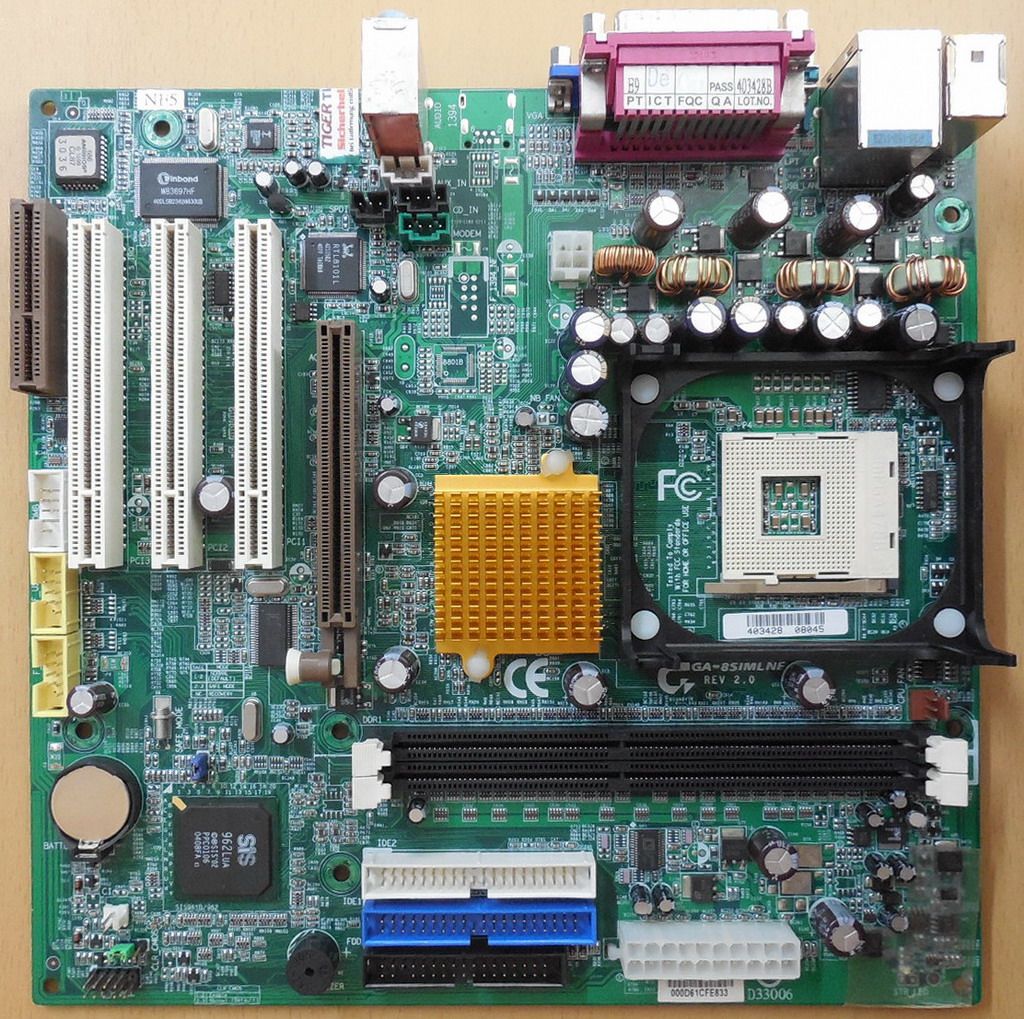

Gigabyte GA-8SIMLNF Rev 2.0 Mainboard + Blende Sockel 478 AGP VGA LAN Audio
Technische Daten
Hersteller GIGABYTE
Model GA-8SIMLNF Rev 2.0
Sockel Intel 478
Prozessor Intel® Pentium 4; Intel® Celeron
FSB 533 / 400 MHz
Chipsatz SIS 651 Northbridge + 962Lua Southbridge
Memory 2 x DDR1-RAM-Bänke, PC2700 / PC2100, unbuffered non-ECC 2.5V; max 2GB
Steckplätze 3 x PCI, 1 x AGP, 1 x CNR
VGA SiS Integrated Grafik
LAN Realtek RTL8101L integrated
Audio Sigmatel STAC9750T Audio Codec
Anschlüsse Intern
1 x COM B Header
2 x IDE UDMA ATA 66/100 Connectors
1 x Floppy FDD Connector
1 x SPDIF Connector
2 x Internal USB Header
1 x Chassis Intrusion Connector
1 x AUX_IN Connector
1 x CD_IN Connector
1 x MODEM Connector
1 x Buzzer
1 x 3-Pin CPU FAN Connector
1 x Safe Mode Jumper
1 x Clear CMOS Jumper
1 x Front Panel Connector
1 x 20-pin ATX Mainboard Power Connector
1 x 4-pin 12V CPU Power Connector
Anschlüsse Extern 1 x PS/2 Maus, 1 x PS/2 Tastatur, 2 x USB2.0, 1 x LAN, 1 x VGA, 1 x Seriell, 1 x Parallel, 3 x 3,5 mm Klinke Audio Anschlüsse
Formfaktor Micro ATX form factor, 4 layers PCB
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
