Products description
Medion MD5000 Ver1.1 MSI MS-6701 FSB533
AGP8x 5.1 Audio Mainboard + Blende
Technische Daten:
CPU
Supports Socket 478 for P4/Celeron processors (Willimate and Northwoodcore) with 400/533 MHz
Core Frequency from 1.3 GHz to 2.8 GHz and up
Chipset
SiS® 648 chipset
- Supports Intel Pentium 4 processors with data transfer rate up to 533 MHz
- Supports 64-bit high performance DDR333+/DDR333/DDR266 memorycontroller
- Supports AGP 8X/4X interface
- Supports bi-directional 16-bit data bus with 1 GHz bandwidth MuTIOL
SiS® 963 chipset
- Supports Dual-IDE ATA 66/100/133
- Integrated audio controller with AC97 interface
- Low pin count interface for SIO
- Advanced power management and PC2001 compliance
Main Memory
Supports two 184-pin DDR DIMMsSupports up to 2GB PC2700/2100/1600 DDR SDRAMs
Supports 2.5v DDR SDRAM
Slots
One AGP (Accelerated Graphics Port) 4x/8x slot.
Three 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
Dual-IDE controller integrated in SiS 963 chipset
Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes
Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and2.88Mbytes
- 1 serial port
- 1 parallel port
- Audio 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Linein
- 1 standard 1394 connector
- 1 mini 1394 connector
- 5 USB ports (3 front + 2 rear)
- 1 RJ-45 Lan Jack (optional)
- PS2 KB/Mouse
Onboard IEEE1394
Integrated in SiS 963 SB
AGREE FW803
Audio
S/W RealTek ALC650 6-channel audio codec with SPDIF in/out
LAN
Realtek RTL8201BL
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
M-ATX Form Factor: 24.4 cm x 23.0 cm
Mounting
6 mounting holes.
Others
Suspend to RAM/Disk (S3/S4)
PC2001 compliant
Chassis Intrusion Detection
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

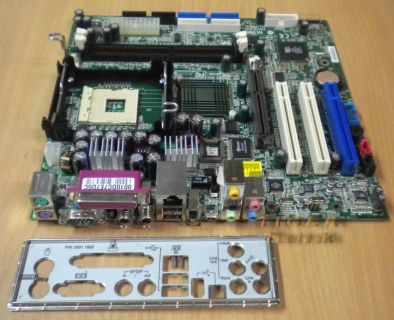

Abbildung ähnlich
