Products description

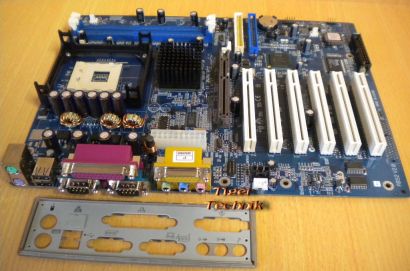

Shuttle AB52 V2.0 Mainboard + Blende
Sockel 478 FSB533 DDR AGP 4X Audio
Technische Daten
Chipset:
Intel 845D / ICH2
Socket 478 CPU support:
Intel Pentium 4 and Celeron processor with socket 478
AB52 supports 400 and 533MHz FSB
FSB infinitely adjustable: 100...160MHz (in 19 steps)
CPU multiplier automatic, or adjustable from 8 up to 50x
Expansion slots:
1 x AGP (v2.0) slots supports 4X mode
Important note: AGP slot supports only 1,5V mode
6 x 32 Bit PCI (v2.2)
Onboard IDE Controller
2 Channel Enhanced PCI IDE for up to 4 IDE devices - supports UltraDMA/100
Multimedia: AC97 2.1
Backpanel connectors:
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel (SSP/EPP/ECP)
2 x Serial
2 x USB1.1
Audio: line-in, line-out, microphone, MIDI/gameport
Onboard connectors:
1 x Floppy drive (up to 2,88 MB)
2 x USB1.1
1 x Infrared (COM2 can be used for infrared communication)
2 x Audio frontpanel connectors (microphone and line-out)
2 x CDROM Audio-in
3 x Fan (CPU, Power, Case)
Memory:
2 x 184-Pin for PC1600 (DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM memory with 100 or 133MHz clock frequency up to 2GB capacity
Hardware monitoring: CPU temperature, voltage and fan revolution
Power Management: ACPI Version 1.0 (Advanced Configuration and Power Interface)
supports power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4 (Suspend to DISK), S5 (Soft-Off)
On/Off button with two functions: Suspend-mode / Soft-off
BIOS: Award V6.0PG PnP Green BIOS stored in 2MBit Flash memory chip
ATX power supply connector: Standard 20-Pin-ATX power connector
Form Factor: ATX: 30,5 x 22 cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
