Products description

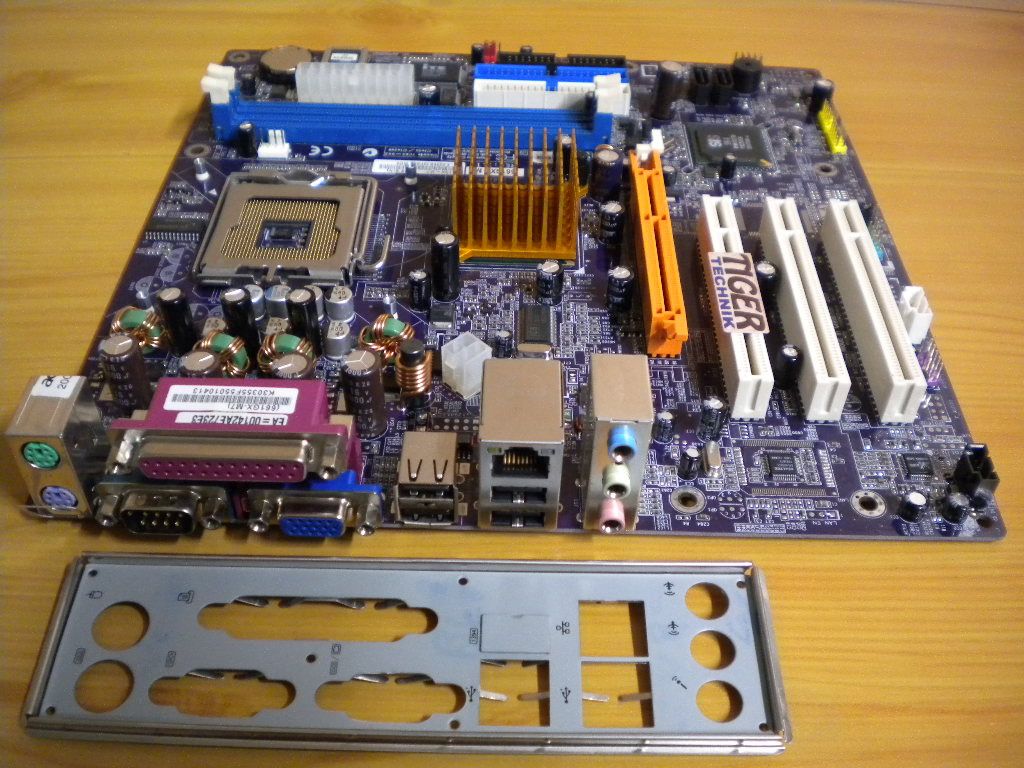

ECS Elitegroup 661GX-M7 Rev 1.1 Mainboard + Blende
Sockel 775 AGP 8x SATA DDR
Technische Daten
CPU
LGA775 socket for latest Pentium 4 / Celeron D processor
FSB 533 MHz
Supports Hyper-Threading Technology CPU (siehe Herstellerseite!)
CHIPSET
SiS® 661GX & 964L
North Bridge: SiS® 661GX
South Bridge: SiS® 964L
GRAPHICS
Integrated SiS Real256E Graphics
MEMORY
Single-channel DDR memory architecture
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266 DDR SDRAM
EXPANSION SLOT
1 x AGP 8X/4X slot
3 x PCI slots
STORAGE
Support by SiS® 964L
4 x Ultra DMA133/100/66 devices
2 x Serial ATA 1.5Gb/s devices
AUDIO
Realtek ALC655 6-Channel audio CODEC; Compliant with AC'97 2.3 specification
LAN
Realtek RTL8201CL 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x Parallel port (LPT)
1 x VGA port
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports one 360L-2.88MB FDD
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x IrDA for SIR header
1 x Clear CMOS header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in / AUX in headers
CPU-FAN connector
SYSTEM BIOS
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*244mm
unter anderem verbaut in Acer Rechnern!!!
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
