Products description

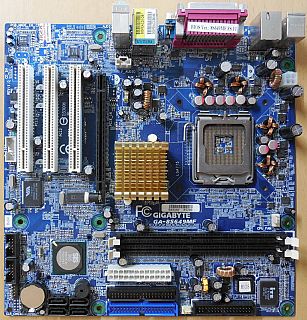

Gigabyte GA-8S649MF Rev 1.0 Retro Mainboard + Blende Intel Sockel 775 PCIe
Technische Daten
Prozessor
Supports the latest Intel® Pentium® 4 LGA775 CPU with Hyper-Threading Technology
Supports FSB up to 800MHz
L2 cache varies with CPU
Chipsatz
SiS® 649 Host / Memory Controller chipset Northbridge + SiS® 965 MuTIOL Southbridge
Arbeitsspeicher
2 x DDR DIMM memory slots (supports up to 2GB memory)
Supports DDR400/333/266 2.5V DIMM
Audio
ALC655 CODEC
Supports Jack Sensing function
Center/Subwoofer Speaker Out; MIC; Front Speaker Line Out; Surround Speaker Line In
AUX In SPDIF_O
LAN
Realtek 8201CL Fast Ethernet chip (10/100 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot
3 x PCI slots
Storage
4 x Serial ATA connections
2 x IDE connection (UDMA 33/ATA 66/ATA 100), allows connection of 4 IDE devices
USB
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA connectors
2 x IDE connectors
1 x Floppy FDD connector
1 x 4-Pin CPU fan header
1 x 3-Pin System fan header
1 x front panel header
1 x front audio header
1 x IEEE1394 FireWire header
1 x AUX_IN connector
2 x USB 2.0/1.1 headers
1 x Safe_Mode Jumper
1 x Clear CMOS jumper
1 x Buzzer
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x IEEE1394 FireWire port
1 x parallel port (Normal/EPP/ECP)
1 x serial port
1 x Coaxial SPDIF port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line-In, Line-Out, Microphone)
I/O
iTE® IT8705 I/O Controller Chip
H/W Überwachung
CPU temperature detection
CPU/System fan speed detection
CPU warning temperature
CPU/System fan failure warning
BIOS
Use of licensed AWARD BIOS
Support for @BIOS
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
