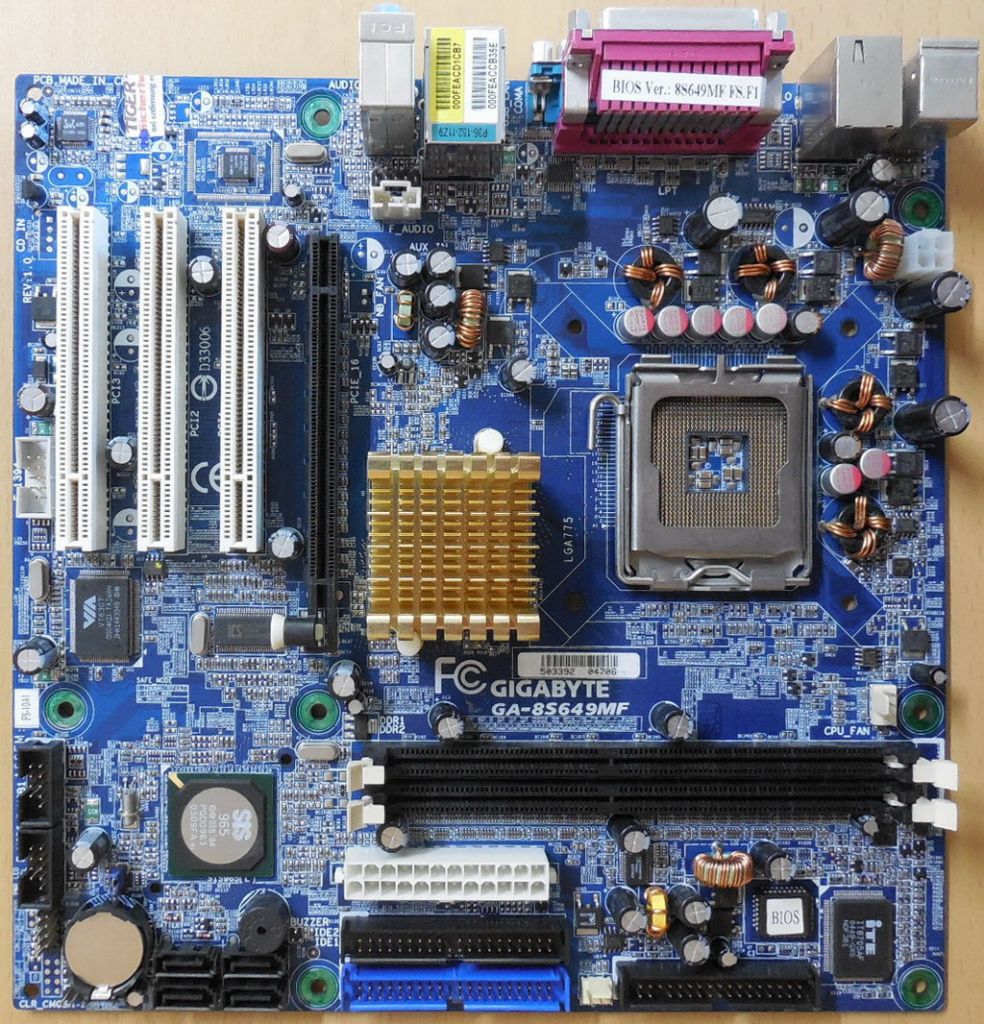

Gigabyte GA-8S649MF Rev 1.0 Retro Mainboard +Blende Intel Sockel 775 PCIe* m1120

Gigabyte GA-8S649MF Rev 1.0 Retro Mainboard + Blende Intel Sockel 775 PCIe

Technische Daten

Prozessor

Supports the latest Intel® Pentium® 4 LGA775 CPU with Hyper-Threading Technology

Supports FSB up to 800MHz

L2 cache varies with CPU

Chipsatz

SiS® 649 Host / Memory Controller chipset Northbridge + SiS® 965 MuTIOL Southbridge

Arbeitsspeicher

2 x DDR DIMM memory slots (supports up to 2GB memory)

Supports DDR400/333/266 2.5V DIMM

Audio

ALC655 CODEC

Supports Jack Sensing function

Center/Subwoofer Speaker Out; MIC; Front Speaker Line Out; Surround Speaker Line In

AUX In SPDIF_O

LAN

Realtek 8201CL Fast Ethernet chip (10/100 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot

3 x PCI slots

Storage

4 x Serial ATA connections

2 x IDE connection (UDMA 33/ATA 66/ATA 100), allows connection of 4 IDE devices

USB

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA connectors

2 x IDE connectors

1 x Floppy FDD connector

1 x 4-Pin CPU fan header

1 x 3-Pin System fan header

1 x front panel header

1 x front audio header

1 x IEEE1394 FireWire header

1 x AUX_IN connector

2 x USB 2.0/1.1 headers

1 x Safe_Mode Jumper

1 x Clear CMOS jumper

1 x Buzzer

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x IEEE1394 FireWire port

1 x parallel port (Normal/EPP/ECP)

1 x serial port

1 x Coaxial SPDIF port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line-In, Line-Out, Microphone)

I/O

iTE® IT8705 I/O Controller Chip

H/W Überwachung

CPU temperature detection

CPU/System fan speed detection

CPU warning temperature

CPU/System fan failure warning

BIOS

Use of licensed AWARD BIOS

Support for @BIOS

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Lieferumfang

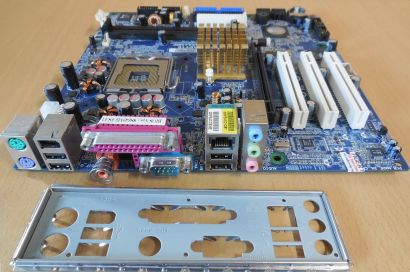

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
