Products description

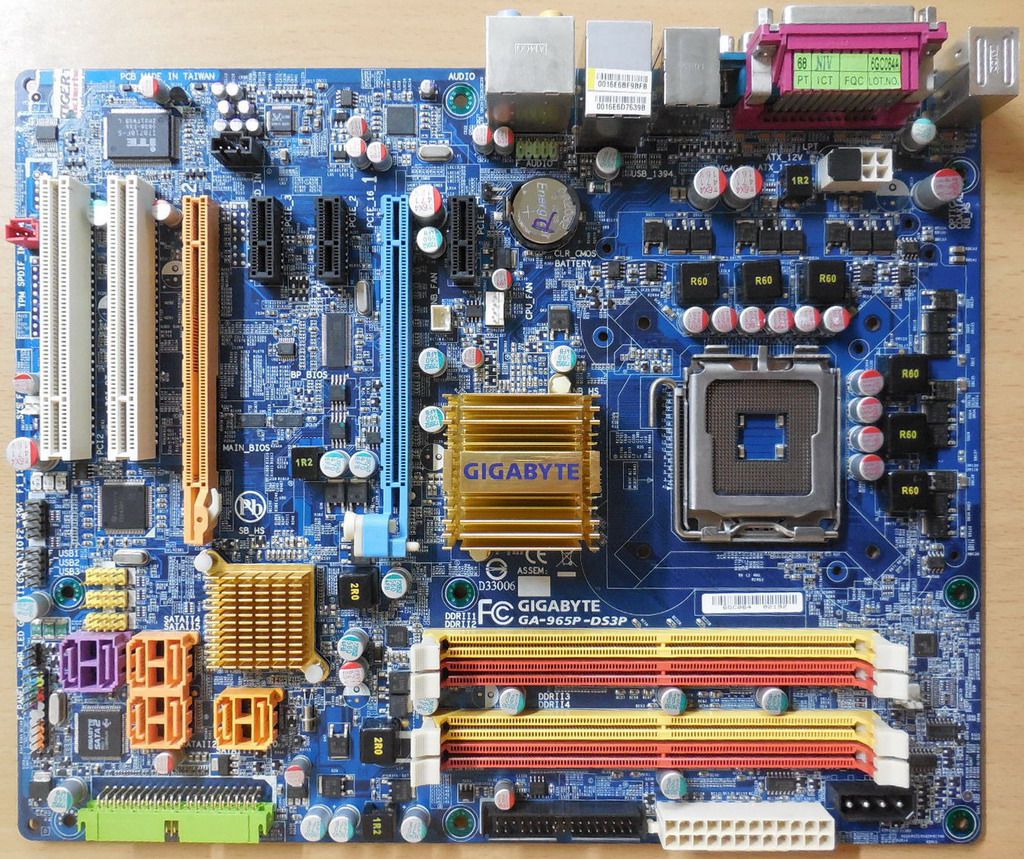

Gigabyte GA-965P-DS3P Rev 3.3 Mainboard +Blende Sockel 775 DDR2 PCIe GBLAN
Technische Daten
Prozessor
Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme / Intel® Pentium® D processors
Supports 1333/1066/800/533 MHz FSB
Chipsatz
Intel® P965 Express Chipset Northbridge + Intel® ICH8R Southbridge
Arbeitsspeicher
Supports DDR2 800/667/533 memory
Dual Channel architecture support up to 8GB by 4 DIMM slots
*Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Erweiterungssteckplätze
2 x PCI Express X16 slot(x16, @x4 mode)
3 x PCI Express X1 slots
2 x PCI slots
LAN
Marvell 8056 Gigabit LAN Controller
Audio
Realtek ALC888 8 Channel Audio Codec
Interne I/O Anschlüsse
8 x Serial ATA 3Gb/s connector
1 x UDMA ATA 133/100/66/33 connector
1 x FDD connector
3 x USB 2.0/1.1 connectors (support 6 ports)
1 x Audio pin header (support 8-Channel)
1 x S/PDIF In pin header
1 x CD In pin header
2 x IEEE1394 connector
1 x Chassis Intrusion connector
1 x Extra Stromversorgungsanschluss (4pin)
1 x Front Panel header
24-pin ATX Power Supply connector
4+4-pin ATX 12V connector
1 x CPU Fan connector (4pin)
1 x System Fan connector (3pin)
1 x NB Fan connector (2pin)
Rückseite I/O Panel
PS/2 Keyboard/Mouse
4 x USB 2.0/1.1 ports
1 x RJ45 port
1 x COM port
1 x LPT port
1 x IEEE1394
1 x Optical SPDIF OUT
1 x Coaxial SPDIF OUT
Audio I/O with 6 audio jacks
BIOS
2 x 8 Mbit flash ROM
Use of licensed AWARD BIOS
Supports Dual BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Einzigartige Funktionen
Durability Enhanced- All Solid Capacitor Motherboard
Silent Pipe Cooling
Over-clocking Enhanced
Form Factor
ATX form factor, 305 x 244mm
Lieferumfang

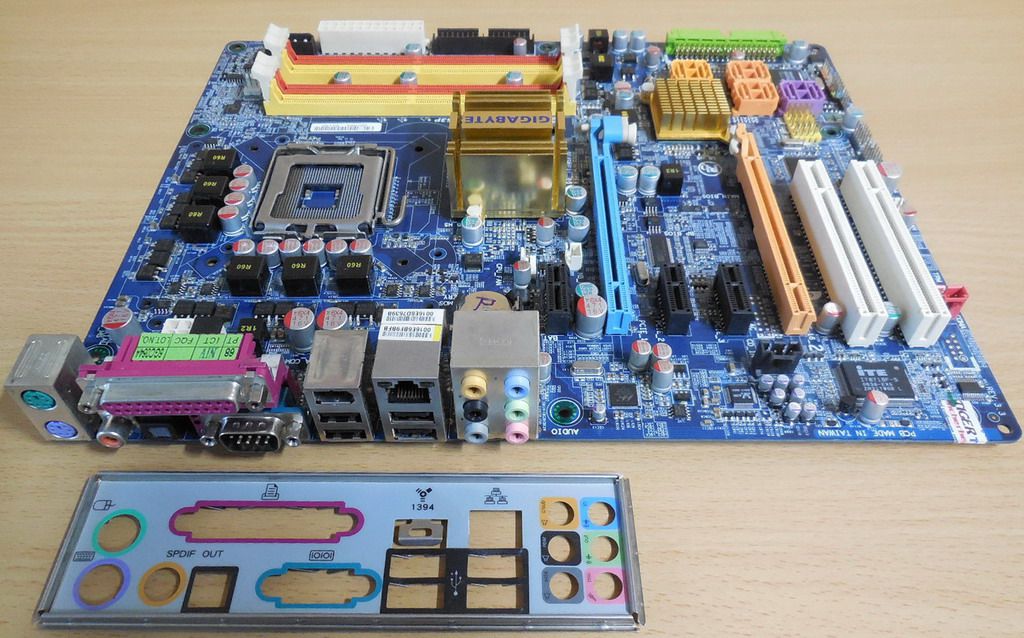

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
