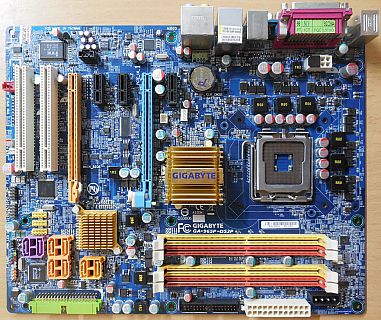

Gigabyte GA-965P-DS3P Rev3.3 Mainboard +Blende Sockel 775 DDR2 PCIe 8xSATA* m903

Gigabyte GA-965P-DS3P Rev 3.3 Mainboard +Blende Sockel 775 DDR2 PCIe GBLAN

Technische Daten

Prozessor

Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme / Intel® Pentium® D processors

Supports 1333/1066/800/533 MHz FSB

Chipsatz

Intel® P965 Express Chipset Northbridge + Intel® ICH8R Southbridge

Arbeitsspeicher

Supports DDR2 800/667/533 memory

Dual Channel architecture support up to 8GB by 4 DIMM slots

*Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Erweiterungssteckplätze

2 x PCI Express X16 slot(x16, @x4 mode)

3 x PCI Express X1 slots

2 x PCI slots

LAN

Marvell 8056 Gigabit LAN Controller

Audio

Realtek ALC888 8 Channel Audio Codec

Interne I/O Anschlüsse

8 x Serial ATA 3Gb/s connector

1 x UDMA ATA 133/100/66/33 connector

1 x FDD connector

3 x USB 2.0/1.1 connectors (support 6 ports)

1 x Audio pin header (support 8-Channel)

1 x S/PDIF In pin header

1 x CD In pin header

2 x IEEE1394 connector

1 x Chassis Intrusion connector

1 x Extra Stromversorgungsanschluss (4pin)

1 x Front Panel header

24-pin ATX Power Supply connector

4+4-pin ATX 12V connector

1 x CPU Fan connector (4pin)

1 x System Fan connector (3pin)

1 x NB Fan connector (2pin)

Rückseite I/O Panel

PS/2 Keyboard/Mouse

4 x USB 2.0/1.1 ports

1 x RJ45 port

1 x COM port

1 x LPT port

1 x IEEE1394

1 x Optical SPDIF OUT

1 x Coaxial SPDIF OUT

Audio I/O with 6 audio jacks

BIOS

2 x 8 Mbit flash ROM

Use of licensed AWARD BIOS

Supports Dual BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Einzigartige Funktionen

Durability Enhanced- All Solid Capacitor Motherboard

Silent Pipe Cooling

Over-clocking Enhanced

Form Factor

ATX form factor, 305 x 244mm

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
