Products description

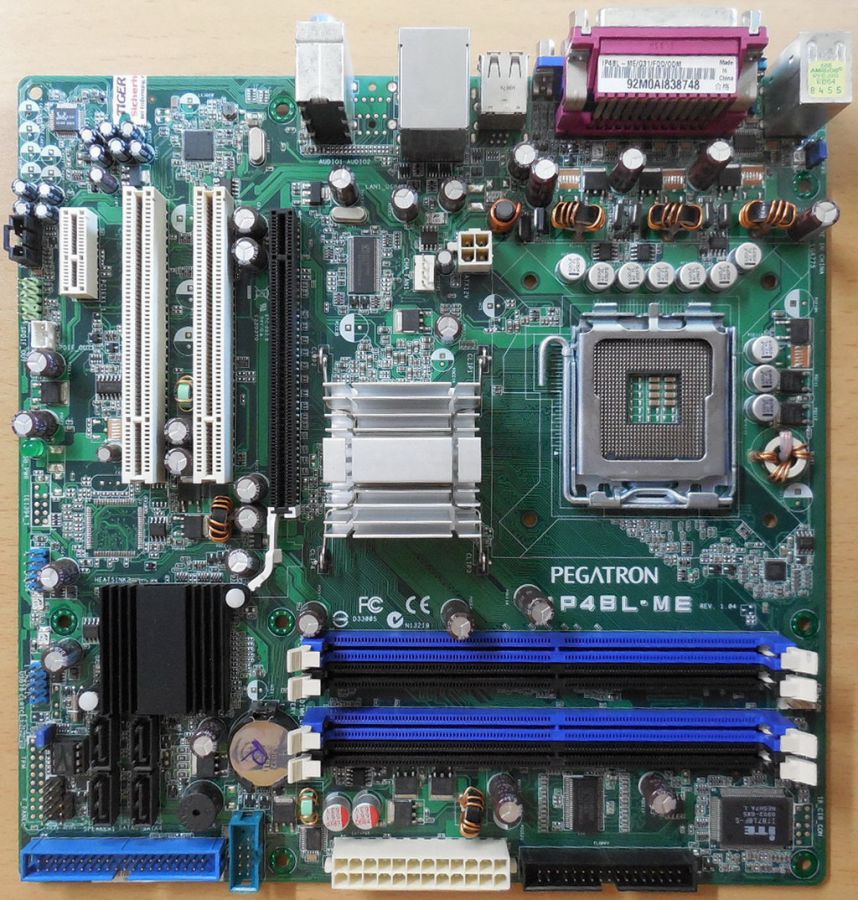

Pegatron IP4BL-ME Rev 1.04 Mainboard + Blende Sockel 775 Intel G31 VGA DDR2
Technische Daten
Hersteller: Pegatron
Model: IP4BL-ME Rev 1.04
Geeignet für: Terra PC-Business 4100 oder baugleich
Sockel: Intel 775
FSB: 800 / 1066 / 1333 MHz
Prozessor: Intel Celeron, Intel Pentium 4 HT, Intel Pentium D, Intel Pentium Dual-Core, Intel Core 2 Duo, Intel Core 2 Quad
Chipset: Intel G31
Memory: 4 x DDR2 1.8V 800/667 MHz non-ECC, un-buffered memory (Max. 4GB)
VGA: Intel GMA 3100
Steckplätze: 2 x PCI; 1 x PCI-Express x1; 1 x PCI-Express x16
Anschlüsse Intern: 1 x IDE UltraDMA/100 Connector; 1 x Floppy Disk Drive Connector, 4 x SATA II 3Gb/s Connectors; 2 x Internal USB2.0 Connectors; Buzzer; 1 x CPU FAN Connector (4-pin); 1 x Chassis FAN Connector (4-pin); 1 x CMOS Jumper; 1 x COM2 Connector; 1 x Front Panel Connector; 1 x Front Audio Connector (AAFP); 1 x SPDIF Out Connector; 1 x CD-IN Connector; 1 x 24-pin ATX Power; 1 x 4-pin CPU Power
Anschlüsse Extern: 1x PS/2 Keyboard; 1x PS/2 Mouse; 4 x USB2.0, 1 x LAN, 1 x VGA, 1 x Seriell COM1; 1x Parallel LPT; Audio Anschlüsse 3 x 3,5 mm Klinke
Sound: Realtek ALC883 6-channel HD Audio
LAN: Realtek 10/100/1000 Gigabit Ethernet; WOL/PXE
Formfaktor: micro-ATX
Lieferumfang

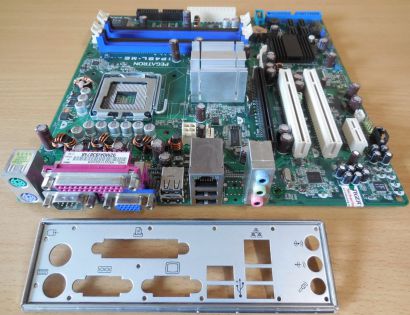

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
