Products description
SEH Intercon IC9-ETHERPRINT Print Server IEEE 1284 Parallel Centronics 10BaseT 10Base2 LAN
Kurzbeschreibung
Direct Printer Integration
The SEH InterCon IC9-ETHERPRINT is an external print server for integrating a printer with parallel Centronics interface into an Ethernet network. The printer can be integrated into the network as an independent network device without requiring a direct connection to a workstation or server.
Ethernet Connectivity
The IC9-ETHERPRINT provides 10BaseT Ethernet connectivity via RJ-45 as well as 10Base2 Ethernet connectivity via BNC and is therefore suitable for use in corresponding Ethernet network environments.
Compatibility
The print server connects directly to the parallel Centronics interface of a compatible printer. The Centronics interface is designed for IEEE 1284 compatible printers. Due to the age of the device, compatibility with the intended printer, operating system and existing network environment should be checked before use.
Web Administration
The IC9 Pocket Print Server provides a web-based administration interface for device management and configuration.
Technische Daten
Hersteller SEH Computertechnik GmbH
Serie InterCon EtherPrint
Modell IC9-ETHERPRINT
Interne Bestellnummer des Herstellers M01968
Produktart Externer Ethernet Print Server für parallele Drucker

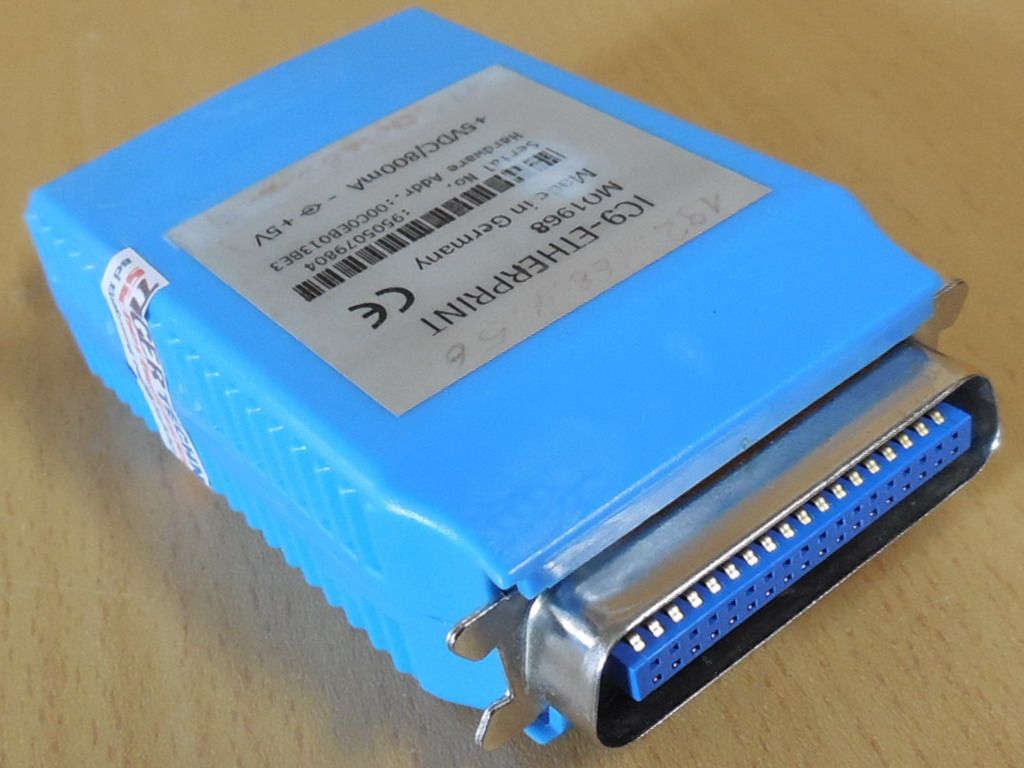

Druckerschnittstelle IEEE 1284 Parallel Centronics, 36-polig

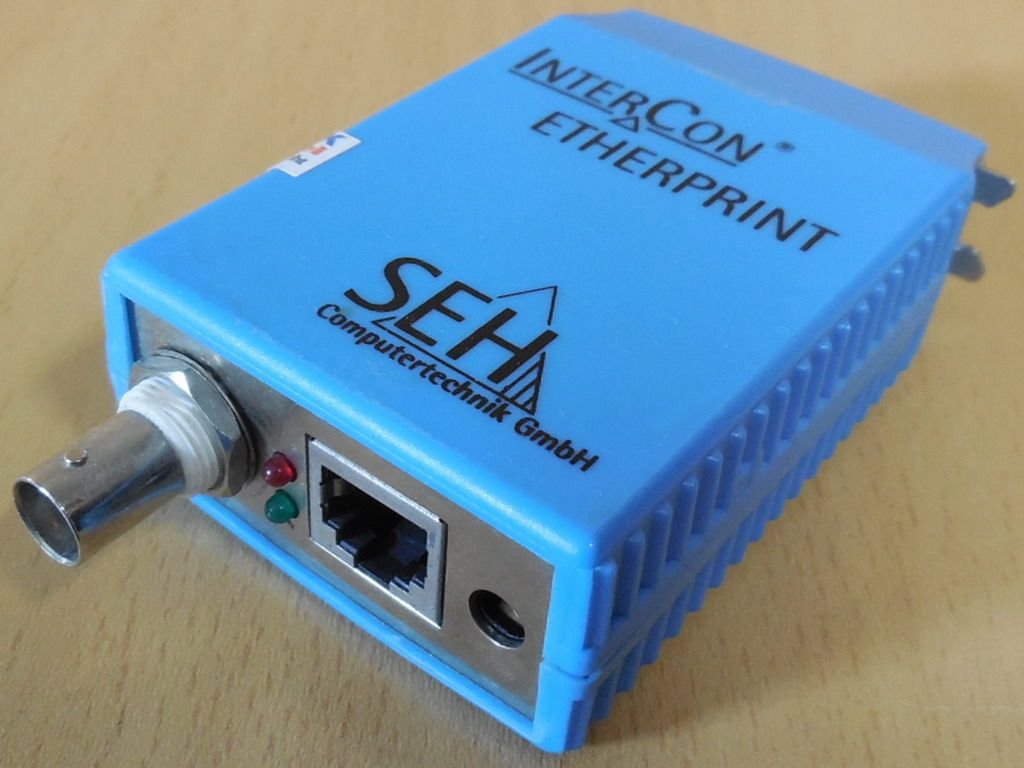

Netzwerk 10BaseT Ethernet RJ-45 / 10Base2 Ethernet BNC
Anschlüsse IEEE 1284 Parallel Centronics --> 10BaseT RJ-45 / 10Base2 BNC (+5VDC/800mA Anschluss für externes Netzteil - nicht im Lieferumfang)
Leistungsmerkmale
Externer Ethernet Print Server
Unterstützung für IEEE 1284 Parallel Centronics
10BaseT Ethernet Netzwerkanschluss über RJ-45
10Base2 Ethernet Netzwerkanschluss über BNC
Web-basierte Administration
Status-LEDs am Gerät
Made in Germany
Stromversorgung (nicht im Lieferumfang)
+5VDC/800mA
Lieferumfang
SEH Intercon IC9-ETHERPRINT ohne Netzteil * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
