Products description

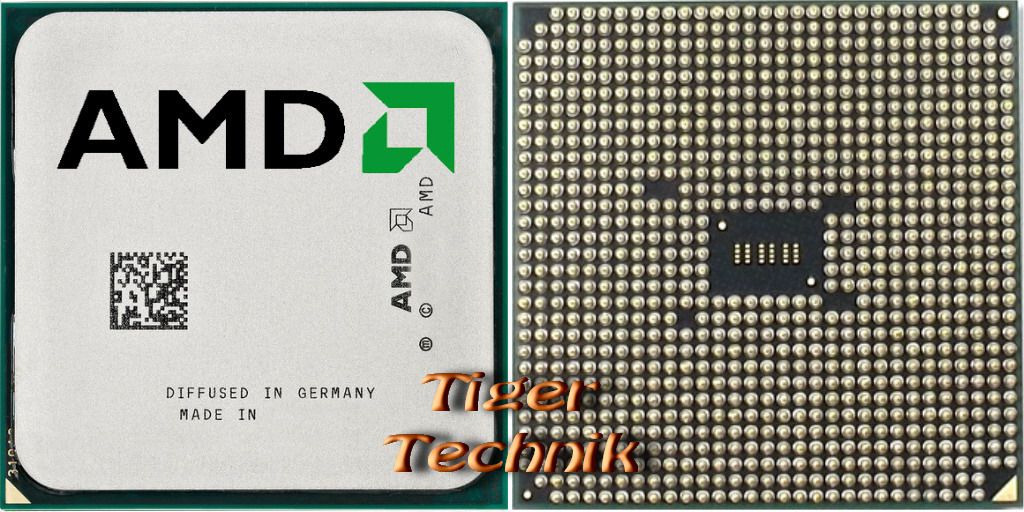

CPU AMD A10-5700 AD5700OKA44HJ Quad Core 4x 3.4GHz Sockel FM2 AMD Grafik
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD A10-Series |
Model number | A10-5700 |
CPU part numbers | AD5700OKA44HJ is an OEM/tray microprocessor; AD5700OKHJBOX is a boxed microprocessor with fan and heatsink |
Frequency | 3400 MHz |
Maximum turbo frequency | 4000 MHz |
Package | 904-pin organic lidded micro Pin Grid Array (UOF904) |
Socket | Socket FM2 |
Size | 1.57" x 1.57" / 4cm x 4cm |
Weight | 1.4oz / 39g (CPU); 9.5oz / 269.4g (box) |
Fan/heatsink | Z7LH01R201 |
Introduction date | July 2012 (shipped in OEM PCs); October 2, 2012 (boxed processors) |
Price at introduction | $122 |
Architecture / Microarchitecture | |
Microarchitecture | Piledriver |
Platform | Virgo |
Processor core | Trinity |
Core stepping | TN-A1 |
CPUID | 610F01 |
Manufacturing process | 0.032 micron; 1303 million transistors |
Die | 246mm2 |
Data width | 64 bit |
The number of CPU cores | 4 |
The number of threads | 4 |
Floating Point Unit | Integrated (shared between two cores in each module) |
Level 1 cache size | 2 x 64 KB 2-way set associative shared instruction caches; 4 x 16 KB 4-way set associative data caches |
Level 2 cache size | 2 x 2 MB 16-way set associative shared exclusive caches |
Level 3 cache size | None |
Cache latency | 3 (L1 cache) |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSSE3 / Supplemental Streaming SIMD Extensions 3; SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4; SSE4a; AES / Advanced Encryption Standard instructions; AVX / Advanced Vector Extensions; BMI1 / Bit Manipulation instructions 1; F16C / 16-bit Floating-Point conversion instructions; FMA3 / 3-operand Fused Multiply-Add instructions; FMA4 / 4-operand Fused Multiply-Add instructions; TBM / Trailing Bit Manipulation instructions; XOP / eXtended Operations instructions; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; Turbo Core 3.0 technology |
Security Features | EVP / Enhanced Virus Protection |
Low power features | Core C1, C1E, C6 and CC6 states; Package S3, S4 and S5 states; PowerNow! |
Integrated peripherals / components | |
Integrated graphics | GPU Type: Radeon HD 7660D |
Memory controller | The number of controllers: 1 |
Other peripherals | PCI Express 2.0; Unified Video Decoder 3.2 |
Electrical / Thermal parameters | |
V core | 0.825V - 1.475V |
Maximum operating temperature | 71.3°C |
Thermal Design Power | 65 Watt |
Notes on AMD A10-5700 | |
The CPU is compatible with DirectX 11 API. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
