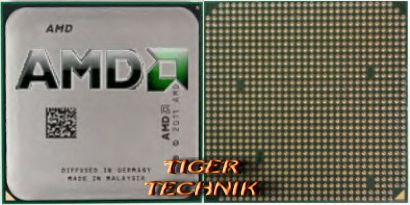

CPU Prozessor AMD Athlon 64 3200+ ADA3200DAA4BP FS

Products description

AMD Athlon 64 3200+ ADA3200DAA4BP

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon 64
Model number ?	3200+
CPU part numbers	ADA3200DAA4BP is an OEM/tray microprocessor ADA3200BPBOX is a boxed microprocessor with fan and heatsink
Stepping codes	ABBLE CBBLE LBBLE
Frequency ?	3200+ (rated) 2000 MHz (real)
Bus speed ?	One 1000 MHz 16-bit HyperTransport link (2GT/s)
Clock multiplier ?	10
Package	939-pin lidded organic microPGA 1.57" x 1.57" (4 cm x 4 cm)
Socket	Socket 939
Introduction date	3rd quarter 2004
Architecture / Microarchitecture
Microarchitecture	K8
Processor core ?	Venice
Core stepping ?	DH-E3
CPUID	20FF0
Manufacturing process	0.09 micron silicon-on-insulator (SOI) technology
Data width	64 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
Level 2 cache size ?	512 KB exclusive 16-way set associative cache
Physical memory	1 TB
Virtual memory	256 TB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology ? EVP / Enhanced Virus Protection ?
Low power features	Halt state Stop Grant state ? Cool'n'Quiet technology
Integrated peripherals / components
Integrated graphics	None
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR-400 Maximum memory bandwidth (GB/s): 6.4
Other peripherals	One 16-bit HyperTransport link
Electrical / Thermal parameters
V core ?	1.35V / 1.4V
Maximum operating temperature ?	49°C - 65°C
Thermal Design Power ?	67 Watt
Notes on AMD Athlon 64 3200+ (rev. E3)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 28.6 Watt
