Products description
CPU Prozessor AMD Athlon XP 1700+ AX1700DMT3C
FSB266 Sockel A 462 braun
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 1700+ |
CPU part number | AX1700DMT3C is an OEM/tray microprocessor |
Stepping codes | AGKGA AGLHA AGNGA AGOGA AGOIA AGTIA ARKGA AROIA |
Frequency | 1700+ (rated); 1467 MHz (real) |
Bus speed | 266 MHz |
Clock multiplier | 11 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 27111 |
Socket | Socket A (Socket 462) |
Introduction date | 9-Oct-01 |
Price at introduction | $190 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Palomino (Model 6) |
Manufacturing process | 0.18 micron copper process |
Die | 129.26mm2 (total); 105.72mm2 (without L2 cache) |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB code; 64 KB data |
Level 2 cache size | Full-speed on-die 256 KB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.75V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Minimum/Typical/Maximum power dissipation | 2 Watt (Stop Grant mode) / 57.4 Watt / 64 Watt |
Notes on AMD Athlon XP 1700+ (Palomino) | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

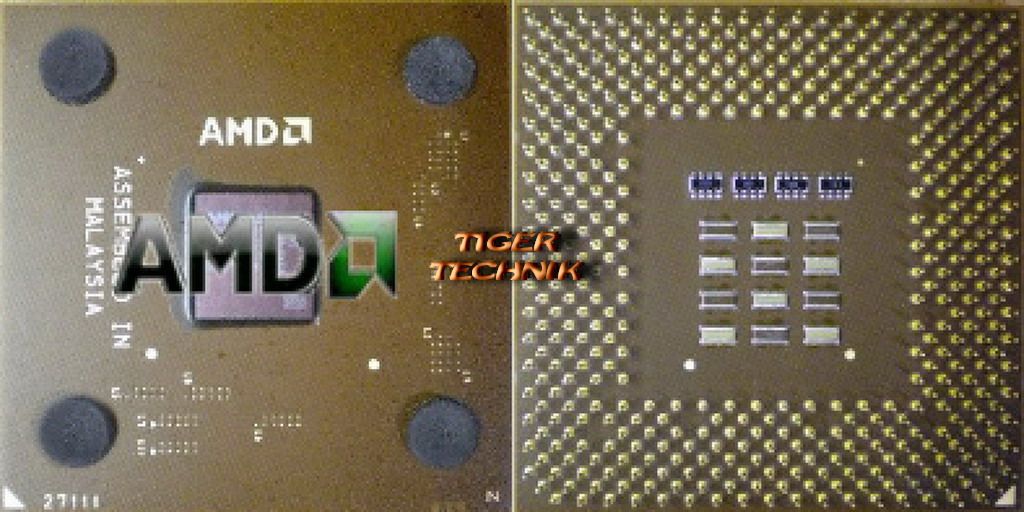

Abbildung ähnlich
