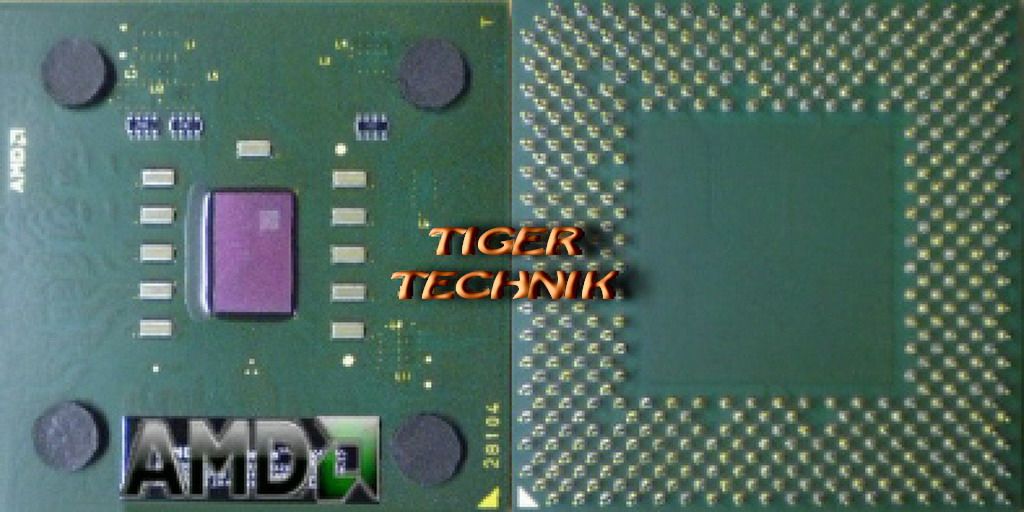

CPU Prozessor AMD Athlon XP 2200+ AXDA2200DUV3C FSB266 Sockel A 462 grün* c124

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number  ?

2200+

CPU part number

• AXDA2200DUV3C is an OEM/tray microprocessor

Stepping codes

AIRCA   AIUCB   AIUGB   AIUHB   AIXHB   AIXIB   AIXJB   JIUHB   KIUHB   KIXHB   KIXIB   KIXJB

Frequency  ?

2200+ (rated)
1800 MHz (real)

Bus speed  ?

266 MHz

Clock multiplier  ?

13.5

Package

453-pin organic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27178, 27291, 27648

Socket

Socket A (Socket 462)

Introduction date

10-Jun-02

Price at introduction

$241

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Thoroughbred (Model 8)

Manufacturing process

0.13 micron copper process

Die size

80.89mm² (CPUID 680)
67.35mm² (CPUID 680 / without L2 cache)
84.66mm² (CPUID 681)
71.12mm² (CPUID 681 / without L2 cache)
86.97mm² (CPUID 682)
73.43mm² (CPUID 682 / without L2 cache)

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB code
64 KB data

Level 2 cache size  ?

Full-speed on-die 256 KB

Multiprocessing

Uniprocessor

Features

• MMX instructions
• Extensions to MMX
• 3DNow! technology
• Extensions to 3DNow!
• SSE / Streaming SIMD Extensions

Low power features

• Halt state
• Stop Grant states
• Sleep state  ?
• Probe state

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core  ?

1.6V

Minimum/Maximum operating temperature  ?

0°C - 85°C

Typical/Maximum power dissipation

57 Watt / 62.8 Watt

Notes on AMD Athlon XP 2200+ (1.6V)

• Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
