Products description

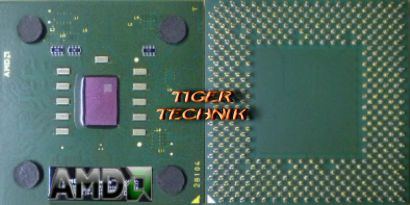

CPU Prozessor AMD Athlon XP 2200+ AXDC2200DUV3C FSB266 Sockel A/462 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 2200+ |
CPU part number | AXDC2200DUV3C is an OEM/tray microprocessor |
Stepping code | AQYHA |
Frequency | 2200+ (rated); 1800 MHz (real) |
Bus speed | 266 MHz |
Clock multiplier | 13.5 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 27493 |
Socket | Socket A (Socket 462) |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thorton (Model 10) |
Core stepping | A2 |
CPUID | 6A0 |
Manufacturing process | 0.13 micron copper process |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | Full-speed on-die 256 KB 16-way set associative cache |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | Halt state; Stop Grant states; Sleep state; Probe state |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core | 1.6V |
Minimum/Maximum operating temperature | 0°C - 85°C |
Typical/Maximum power dissipation | 57 Watt / 62.8 Watt |
Notes on AMD Athlon XP 2200+ (Thorton) | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
