Products description

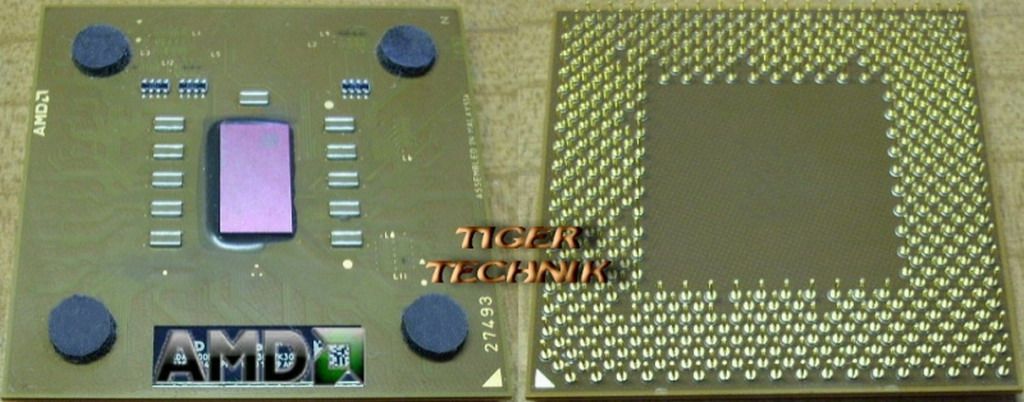

CPU Prozessor AMD Athlon XP 2600+ AXDA2600DKV4D FSB333 Sockel A 462 braun
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 2600+ |
CPU part number | AXDA2600DKV4D is an OEM/tray microprocessor |
Stepping codes | ADYHA AIUCB AQUCA AQUDA AQXCA AQXDA AQXEA AQXFA AQYFA AQYHA AQZFA IQYHA KQYHA KQZFA |
Frequency | 2600+ (rated); 1.917 GHz / 1917 MHz (real) |
Bus speed | 333 MHz |
Clock multiplier | 11.5 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27291; 27488; 27493; 28103 |
Socket | Socket 462 / Socket A |
Architecture / Microarchitecture | |
Instruction set | x86 |
Microarchitecture | K7 |
Processor core | Barton (Model 10) |
Core stepping | A2 |
CPUID | 6A0 |
Manufacturing process | 0.13 micron copper process |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | Full-speed on-die 512 KB 16-way set associative exclusive cache |
Multiprocessing | Uniprocessor |
Extensions & Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | Halt state; Stop Grant states; Sleep state; Probe state |
Electrical / Thermal parameters | |
V core | 1.65V |
Minimum/Maximum operating temperature | 0°C - 85°C |
Typical/Maximum power dissipation | 53.7 Watt / 68.3 Watt |
Notes on AMD Athlon XP 2600+ (333FSB, 1.65V, 512KB) | |
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
