CPU Prozessor AMD Athlon XP 3100+ AXDC3100DKV3E FS

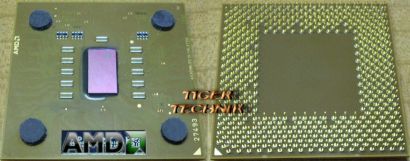

AMD Athlon XP 3100+ AXDC3100DKV3E

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon XP
Model number ?	3100+
CPU part number	AXDC3100DKV3E is an OEM/tray microprocessor
Stepping code	CQYHA
Frequency ?	3100+ (rated) 2200 MHz (real)
Bus speed ?	400 MHz
Clock multiplier ?	11
Package	453-pin organic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number	27493
Socket	Socket A (Socket 462)
Architecture / Microarchitecture
Microarchitecture	K7
Processor core ?	Thorton (Model 10)
Manufacturing process	0.13 micron
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB code 64 KB data
Level 2 cache size ?	Full-speed on-die 256 KB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions
Low power features	Halt state Stop Grant states Sleep state ? Probe state
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	1.65V
Minimum/Maximum operating temperature ?	0°C - 85°C
Notes on AMD Athlon XP 3100+
Actual bus frequency is 200 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 400 MHz.
