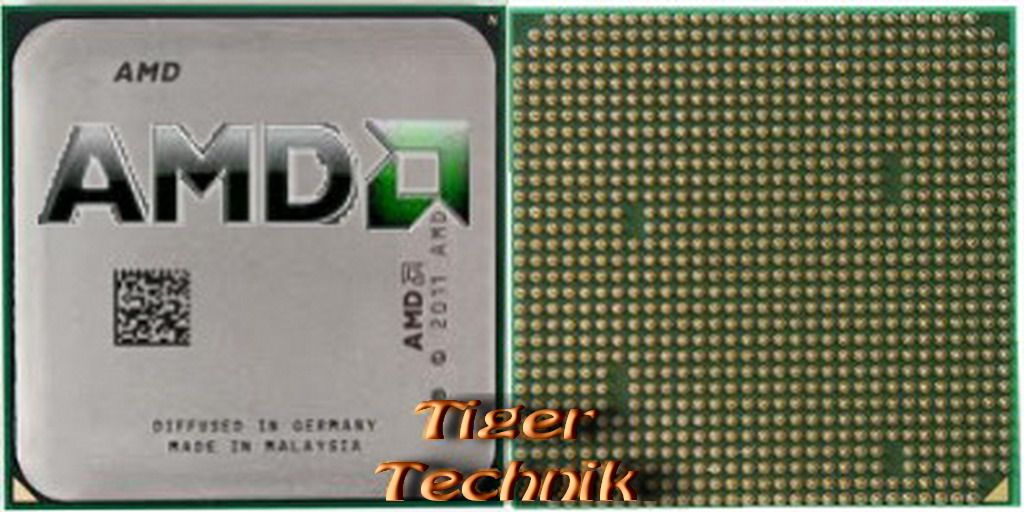

CPU AMD Athlon 64 X2 5000+ ADO5000IAA5DO Dual Core FSB1000 2x512K Sockel AM2*c91

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon 64 X2

Model number

5000+

CPU part numbers

ADO5000IAA5DO is an OEM/tray microprocessor; ADO5000DOBOX is a boxed microprocessor with fan and heatsink

Stepping codes

AAA9G   CAA9G   CAAEG   CAAIG   NAA9G   NAAEG   NAAFG   NAAIG   NAAWG   NAAZG

Frequency

5000+ (rated); 2.6 GHz / 2600 MHz (real)

Bus speed

One 1000 MHz 16-bit HyperTransport link (2 GT/s)

Clock multiplier

13

Package

940-pin organic microPGA

Socket

Socket AM2

End-of-Life date

Last order date is end of 3rd quarter 2008

Architecture / Microarchitecture

Instruction set

x86

Microarchitecture

K8

Platform

Cartwheel

Processor codename

Brisbane

Core stepping

BH-G2

CPUID

60FB2

Manufacturing process

0.065 micron silicon-on-insulator (SOI) technology; 221 million transistors

Data width

64 bit

The number of CPU cores

2

The number of threads

2

Floating Point Unit

Integrated

Level 1 cache size

2 x 64 KB instruction caches; 2 x 64 KB data caches

Level 2 cache size

2 x 512 KB

Physical memory

1 TB

Virtual memory

256 TB

Multiprocessing

Uniprocessor

Extensions & Technologies

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology

Security Features

EVP / Enhanced Virus Protection

Low power features

Cool'n'Quiet technology; Halt state; Stop Grant state

Integrated peripherals / components

Memory controller

The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR2-800

Other peripherals

HyperTransport 2.0 technology

Electrical / Thermal parameters

V core

1.325V / 1.35V / 1.375V

Maximum operating temperature

55°C - 68°C

Thermal Design Power

65 Watt
