Products description

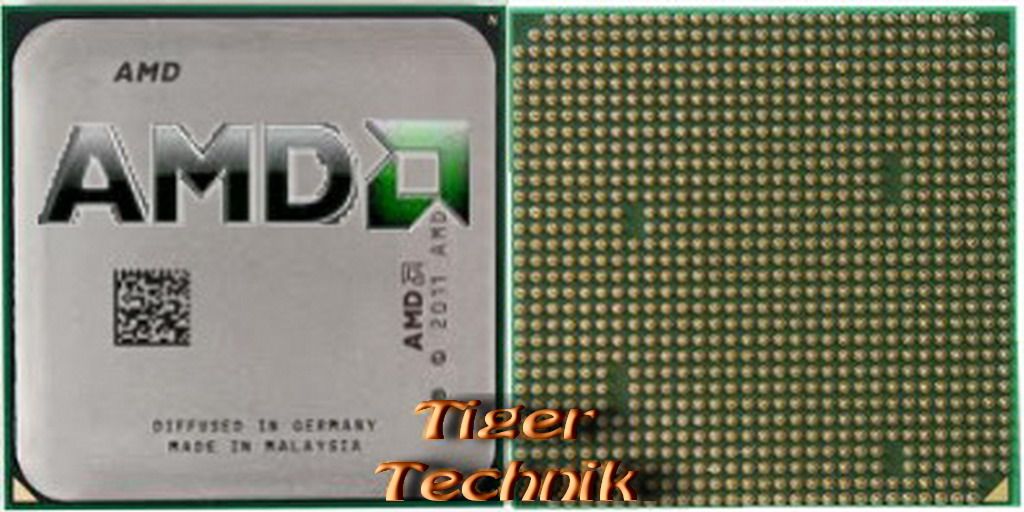

CPU Prozessor AMD Athlon 64 X2 ADO5600IAA5DO 2x2.9GHz Dual Core FSB1000 Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 X2 |
Model number | 5600+ |
CPU part numbers | ADO5600IAA5DO is an OEM/tray microprocessor; ADO5600DOBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | CAAFG CAAJG CAAWG NAA9G NAAFG NAAHG NAAIG NAAJG NAAWG |
Frequency | 5600+ (rated); 2900 MHz (real) |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2 GT/s) |
Clock multiplier | 14.5 |
Package | 940-pin organic microPGA |
Socket | Socket AM2 |
Introduction date | March 2008 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Platform | Cartwheel |
Processor core | Brisbane |
Core stepping | BH-G2 |
CPUID | 60FB2 |
Manufacturing process | 0.065 micron silicon-on-insulator (SOI) technology; 221 million transistors |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 2 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches |
Level 2 cache size | 2 x 512 KB exclusive 16-way set associative caches |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology |
Security Features | EVP / Enhanced Virus Protection |
Low power features | Cool'n'Quiet technology; Halt state; Stop Grant state |
Integrated peripherals / components | |
Integrated graphics | None |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology |
Electrical / Thermal parameters | |
Thermal Design Power | 65 Watt |
Notes on AMD Athlon 64 X2 5600+ (2.9 GHz, 65W) | |
Core voltage and maximum temperature are likely the same as for other 65 Watt processors with G2 (DO) stepping: 1.325 / 1.35 / 1.375 Volt and 55 - 68 degrees Celsius | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
