Products description
CPU Prozessor AMD Athlon 64 3500+ ADA3500IAA4CN FSB1000 512KB Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 |
Model number | 3500+ |
CPU part numbers | ADA3500IAA4CN is an OEM/tray microprocessor; ADA3500CNBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | LBBVF LEBAF LFBAF NBBVF NEBAF |
Frequency | 3500+ (rated); 2200 MHz (real) |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2 GT/s) |
Clock multiplier | 11 |
Package | 940-pin organic micro Pin Grid Array (micro-PGA) |
AMD Package number | 29269 |
Socket | Socket AM2 |
Introduction date | May 23, 2006 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Processor core | Orleans |
Core stepping | DH-F2 |
CPUID | 40FF2 |
Manufacturing process | 0.09 micron silicon-on-insulator (SOI) technology; 164 million transistors |
Die | 103.1mm2 |
Data width | 64 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | 512 KB 16-way set associative exclusive cache |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection, AMD-V / AMD Virtualization technology |
Low power features | Cool'n'Quiet technology, Halt state, Stop Grant state |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology (1 link) |
Electrical / Thermal parameters | |
V core | 1.25V / 1.35V / 1.4V |
Maximum operating temperature | 55°C - 69°C |
Thermal Design Power | 59 Watt |
Notes on AMD Athlon 64 3500+ (rev. F2, 59W, CN) | |
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 28.7 Watt According to 2006 roadmap the maximum supported memory is DDR2-667 [1] - Information is not confirmed | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

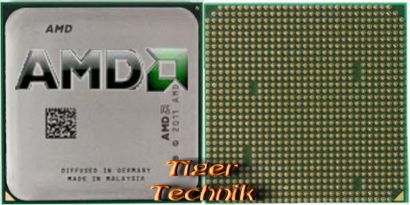

Abbildung ähnlich
