Products description
CPU Prozessor AMD Athlon X2 BE-2400 ADH2400IAA5DO
2x 2.3GHz 2x 512K Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 X2 |
Model number | BE-2400 |
CPU part numbers | ADH2400IAA5DO is an OEM/tray microprocessor; ADH2400DOBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | AAA9G CAAZG |
Frequency | 2300 MHz |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2 GT/s) |
Clock multiplier | 11.5 |
Package | 940-pin organic microPGA |
Socket | Socket AM2 |
End-of-Life date | Last order date is 2nd quarter 2008 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Platform | Cartwheel |
Processor core | Brisbane |
Core stepping | G2 |
Manufacturing process | 0.065 micron silicon-on-insulator (SOI) technology; 221 million transistors |
Die | 118mm2 |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 2 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches |
Level 2 cache size | 2 x 512 KB 16-way set associative exclusive caches |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Extensions and Technologies
| MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; EVP / Enhanced Virus Protection; AMD-V / AMD Virtualization technology |
Low power features | Cool'n'Quiet technology; Halt state; Stop Grant state |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology with speeds up to 1000 MHz |
Electrical / Thermal parameters | |
V core | 1.25V |
Maximum operating temperature | 55°C - 78°C |
Thermal Design Power | 45 Watt |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

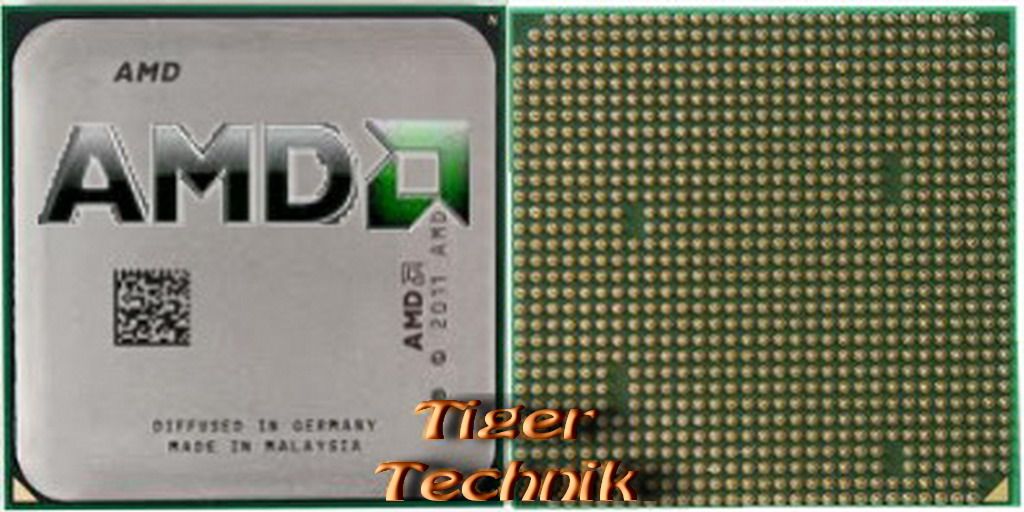

Abbildung ähnlich
