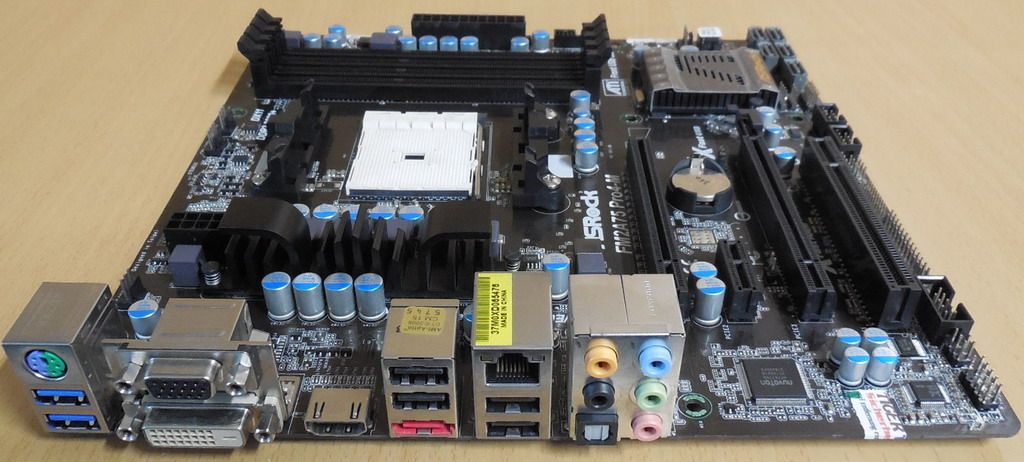

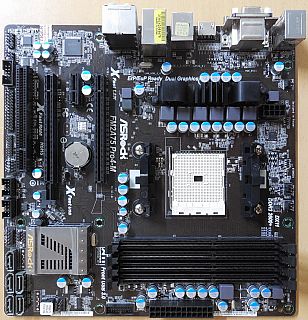

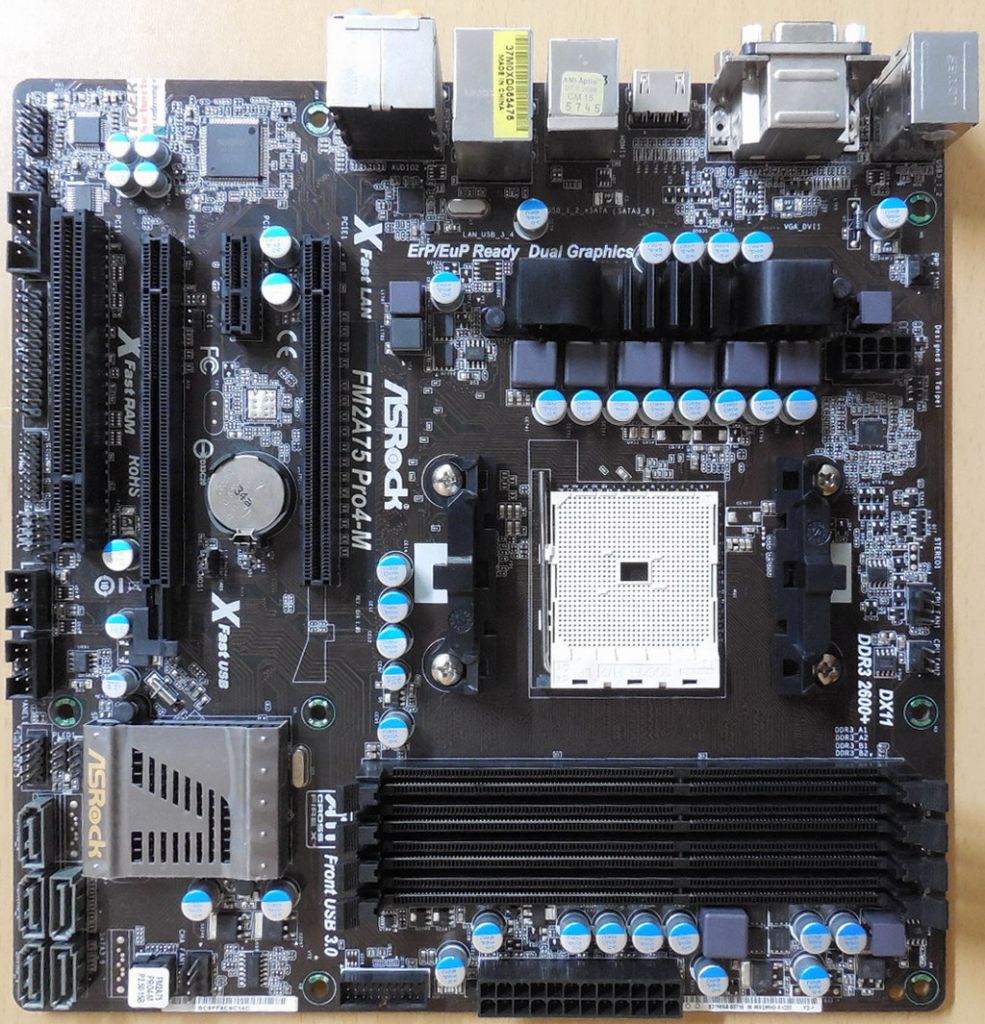

ASRock FM2A75 Pro4-M Rev1.05 Mainboard AMD A75 Sockel FM2 DDR3 USB3.0 HDMI*m1159

ASRock FM2A75 Pro4-M Rev 1.05 Mainboard AMD A75 Sockel FM2 DDR3 USB3.0 HDMI

Technische Daten

CPU

Support for Socket FM2 100W processors

4 + 2 Power Phase Design

Supports AMD's Cool 'n' Quiet Technology

UMI-Link GEN2

Chipsatz

AMD A75 FCH (Hudson-D3)

Arbeitsspeicher

Dual Channel DDR3 memory technology

4 x DDR3 DIMM slots

Supports DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 64GB (Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. Für Windows® 64-bit mit einer 64-bit CPU gibt es keine solche Limitation.)

Supports Intel® Extreme Speicherprofile (XMP) 1.3 / 1.2

Supports AMD Memory Profile (AMP)

BIOS

64Mb AMI UEFI Legal BIOS with GUI support

Supports "Plug and Play", jumperfree

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Grafik

Integrated AMD Radeon HD 7000 series graphics in A-series APU

DirectX 11, Pixel Shader 5.0

Max. shared memory 2GB

Three graphics output options: D-Sub, DVI-D and HDMI

Supports HDMI Technology with max. Auflösung up to 1920x1200 @ 60Hz

Supports Dual-link DVI with max. Auflösung up to 2560x1600 @ 75Hz

Supports D-Sub with max. Auflösung up to 1920x1600 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

Supports Blu-ray Stereoscopic 3D with HDMI

Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video

Supports HDCP function with DVI and HDMI ports

Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

Audio

7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC892 Audio Codec)

Premium Blu-ray audio support

LAN

Realtek RTL8111E PCI-E x1 Gigabit LAN 10/100/1000 Mb/s Controller

Supports Wake-On-LAN, LAN Cable Detection, Energy Efficient Ethernet 802.3az, PXE

Steckplätze

2 x PCI Express 2.0 x16 slots (PCIE1 @ x16 mode; PCIE3 @ x4 mode)

1 x PCI Express 2.0 x1 slot

1 x PCI slot

Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

SATA3

5 x SATA3 6.0 Gb/s connectors (support RAID 0, 1 and 10), NCQ, AHCI and Hot Plug functions

USB 3.0

2 x Rear USB 3.1 Gen1 ports, support USB 1.1/2.0/3.0 up to 5Gb/s

1 x Front USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s

Interne Anschlüsse

5 x SATA3 6.0 Gb/s connectors

1 x IR header

1 x CIR header

1 x Print port header

1 x COM port header

1 x Power LED header

1 x Chassis Intrusion header

1 x TPM header

2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

1 x Chassis Fan connector (4-pin)

1 x Power Fan connector (3-pin)

1 x 24 pin ATX power connector

1 x 8 pin 12V power connector

1 x Front Panel connector

1 x Front panel audio connector

3 x USB 2.0 headers (support 6 USB 2.0 ports)

1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

1 x Internal Speaker header

I/O Blende Rückseite

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI Port

1 x Optical SPDIF Out Port

4 x Ready-to-Use USB 2.0 Ports

1 x eSATA3 Connector

2 x Ready-to-Use USB 3.1 Gen1 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Einzigartige Features

ASRock Extreme Tuning Utility (AXTU), Instant Boot, Sofort-Flash, APP Charger, XFast USB, XFast RAM, Crashless BIOS, OMG (Online Management Guard), Internet Flash, UEFI System Browser, On/Off Play Technology, Dehumidifier Function, Easy RAID Installer, Interactive UEFI, U-COP

Hardware überwachung

CPU Temperature Sensing, Chassis Temperature Sensing, CPU, Chassis, Power Fan Tachometer, CPU, Chassis Quiet Fan, CPU, Chassis Fan multi-speed control, CASE OPEN detection, Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Formfaktor

Micro ATX Form Factor

All Solid Capacitor design

Betriebssystem

Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit

Zertifizierungen

FCC, CE

ErP/EuP Ready (ErP/EuP ready power supply is required)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
