ASRock FM2A68M-DG3+ Rev 1.03 Mainboard AMD A68H Sockel FM2+ DDR3 PCIe SATA

Technische Daten

CPU

Supports Socket FM2+ 95W / FM2 100W processors

(Please refer to "CPU Support List" for more information.)

Chipsatz

AMD A68H (Bolton-D2H)

Arbeitsspeicher

2 x DDR3 DIMM Slots

Dual Channel DDR3 Memory Technology

Supports DDR3 2400+(OC) / 2133(OC) / 1866(OC) / 1600 / 1333/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 32GB

Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

Supports AMD Memory Profile Technology (AMP) up to AMP 2400

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

(Please refer to "Memory Support List" for more information.)

Grafik

Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU

DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.

Max. shared memory 2GB

Dual graphics output options: support DVI-D and D-Sub by independent display controllers

Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video

Supports HDCP and Full HD 1080p Blu-ray (BD) playback with DVI-D Port

Audio

Realtek® ALC662 5.1-channel High Definition Audio codec

Support Surge Protection (ASRock Full Spike Protection)

Gigabit LAN

Realtek® RTL8111GR GbE LAN chip (10/100/1000 Mbit)

Supports Wake-On-LAN , Lightning/ESD Protection (ASRock Full Spike Protection), Energy Efficient Ethernet 802.3az, PXE

Erweiterungssteckplätze

1 x PCI Express 3.0 x16 slot* (PCIE1@ x16 mode)

1 x PCI Express 2.0 x1 slot

1 x PCI slot

*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.

Multi-Graphics Technology

Support for AMD Dual Graphics technology (Only A series APUs)

Storage Interface

4 x SATA3 6.0 Gb/s Connectors

Supports RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

USB

2 x USB 3.1/2.0 ports (on the back panel)

10 x USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX Power Connector

1 x 4-pin 12V Power Connector

4 x SATA 6Gb/s Connectors

1 x 4-pin CPU Fan Connector

1 x 3-pin Power Fan Connector

1 x 4-pin Chassis Fan Connector

1 x System Panel Connector

1 x HD-Audio Front Panel Connector

1 x Chassis Intrusion Connector

1 x Internal Speaker Connector

1 x Flexible USB 2.0 Header allows users to connect a Front USB 3.0 Panel and support two USB ports with 2.0/1.1 data rate. (Supports ESD Protection)

2 x USB 2.0 headers (Supports ESD Protection)

1 x COM Port Connector

1 x Clear CMOS jumper

1 x LPT1 Print Port Connector

1 x Trusted Platform Module (TPM) header

Rückseite I/O Panel

1 x PS/2 keyboard/mouse Port

1 x D-Sub Port

1 x DVI-D Port

2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

4 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

3 x HD Audio Jacks (Line In, Front Speaker, Microphone)

H/W Überwachung

CPU/Chassis temperature sensing

CPU/Chassis Fan Tachometer

CPU, Chassis Quiet Fan

CPU, Chassis Fan multi-speed control

CASE OPEN detection

Voltage monitoring: +12V, +5V, +3.3V, Vcore

BIOS

64Mb AMI UEFI Legal BIOS with GUI support

Supports "Plug and Play", jumperfree

ACPI 1.1 Compliant wake up events

SMBIOS 2.3.1 support

DRAM, CPU Voltage multi-adjustment

Einzigartige Funktionen

ASRock Full Spike Protection, APP Shop

Software

ASRock A-Tuning, Disk Health Report, USB Key, APP Charger, XFast RAM, Restart to UEFI, X-Boost

UEFI

ASRock Interactive UEFI, Instant Boot, Instant Flash, Internet Flash, Crashless BIOS, OMG (Online Management Guard), UEFI System Browser, UEFI Tech Service, Dehumidifier Function, Easy RAID Installer, Easy Driver Installer

Betriebssystem

Microsoft Windows® 10, Windows® 8.1, Windows® 8, Windows® 7

Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only

Form Factor

Micro ATX Form Factor

All Solid Capacitor design

High Density Glass Fabric PCB

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

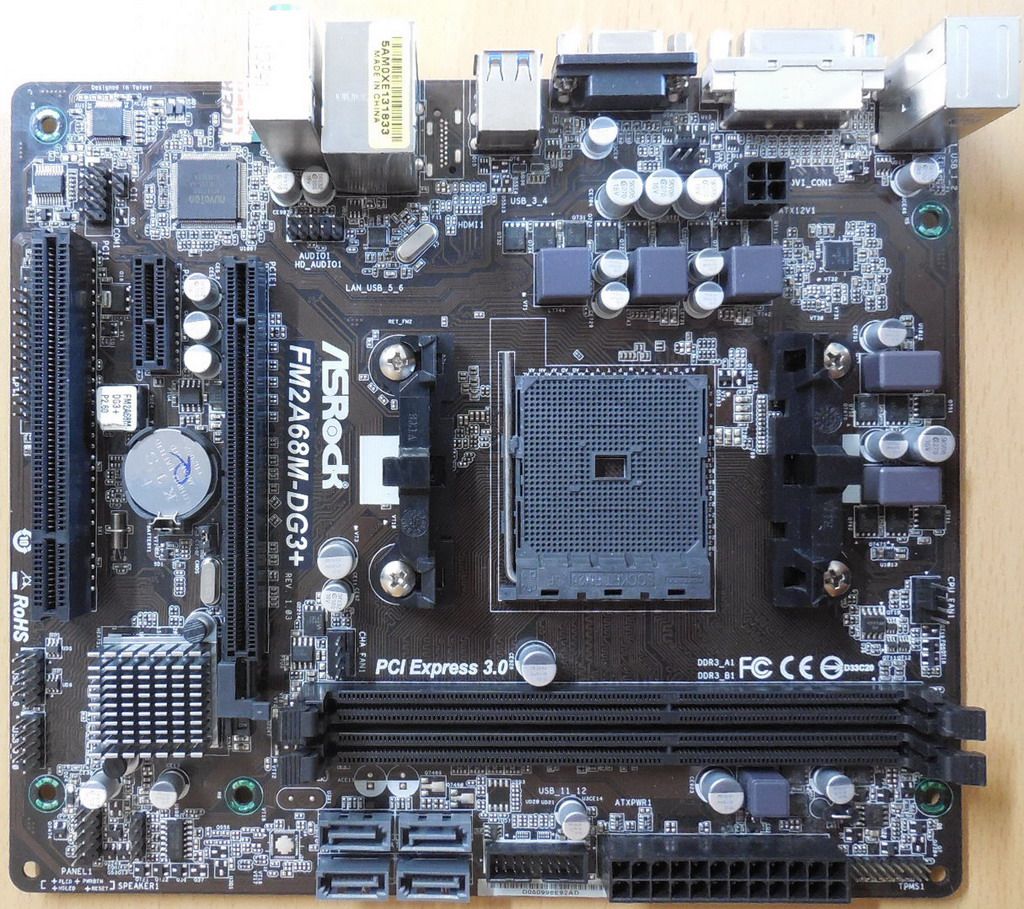

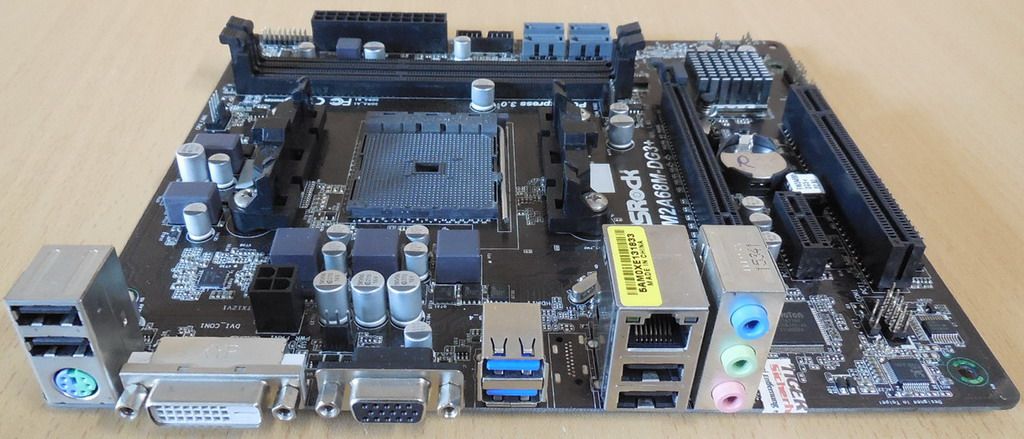

Abbildung ähnlich
