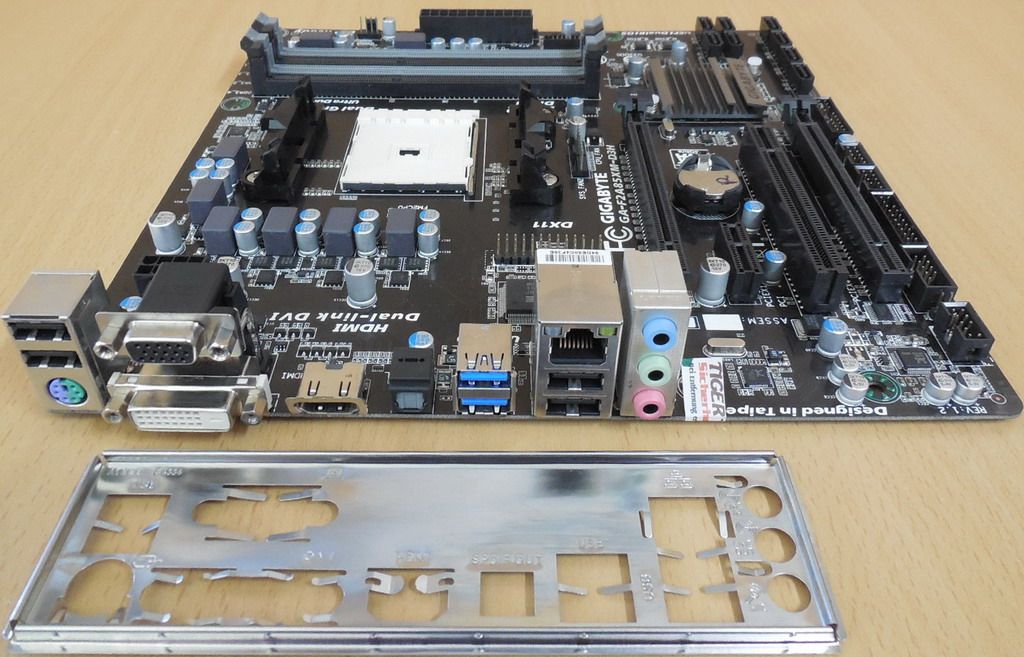

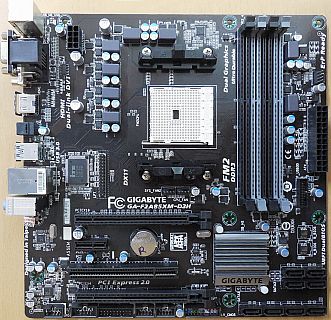

Gigabyte GA-F2A85XM-D3H Rev 1.2 Mainboard +Blende AMD A85X Sockel FM2 DDR3*m1118

Gigabyte GA-F2A85XM-D3H Rev 1.2 Mainboard + Blende AMD A85X Sockel FM2 DDR3

Technische Daten

APU

FM2 Socket AMD A series / Athlon™ series processors

(Please refer to "CPU Support List" for more information.)

Chipsatz

AMD A85X

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules

Support for AMD Memory Profile (AMP) / Extreme Memory Profile (XMP) memory modules

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

(Please refer to "Memory Support List" for more information.)

Onboard Grafik

To use the onboard graphics ports, you must install an AMD APU with integrated graphics.

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 2560x1600 (requires both a monitor and cable that support Dual Link DVI; does not support D-Sub connection by adapter.)

1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

Realtek® ALC887 High Definition Audio codec

2/4/5.1/7.1-channel

Support for S/PDIF Out

Gigabit LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express 2.0 x16 slot, running at x16 (For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

1 x PCI Express 2.0 x16 slot, running at x4 (PCIEX4)

1 x PCI Express 2.0 x1 slot

1 x PCI slot

Multi-Graphics Technology

Support for AMD Dual Graphics technology (Only A series APUs)

Support for AMD CrossFire™ technology

Storage Interface

8 x SATA 6Gb/s connectors supporting up to 8 SATA 6Gb/s devices

Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

USB

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

8 x SATA 6Gb/s connectors

1 x 4-pin APU fan header

2 x 4-pin system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port COM header

1 x Clear CMOS jumper

1 x parallel port header

1 x Trusted Platform Module (TPM) header

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Microphone)

1 x optical S/PDIF Out connector

I/O

iTE® I/O Controller Chip

H/W Überwachung

System voltage detection; APU/System temperature detection; APU/System fan speed detection; APU overheating warning, APU/System fan fail warning, APU/System fan speed control (depends on the cooler you install)

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress Install; EasyTune (Available functions in EasyTune may differ by motherboard model); Smart Recovery 2; Auto Green; ON/OFF Charge; 3TB+ Unlock; Q-Share

Betriebssystem

Support for Windows 8 / 7

Support for Windows Vista / XP* only with AMD FM2 Trinity APU

*It requires Service Pack 3 to support Windows XP driver installation

Form Factor

Micro ATX Form Factor; ca. 24.4cm x 24.4cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
