Produktbeschreibung

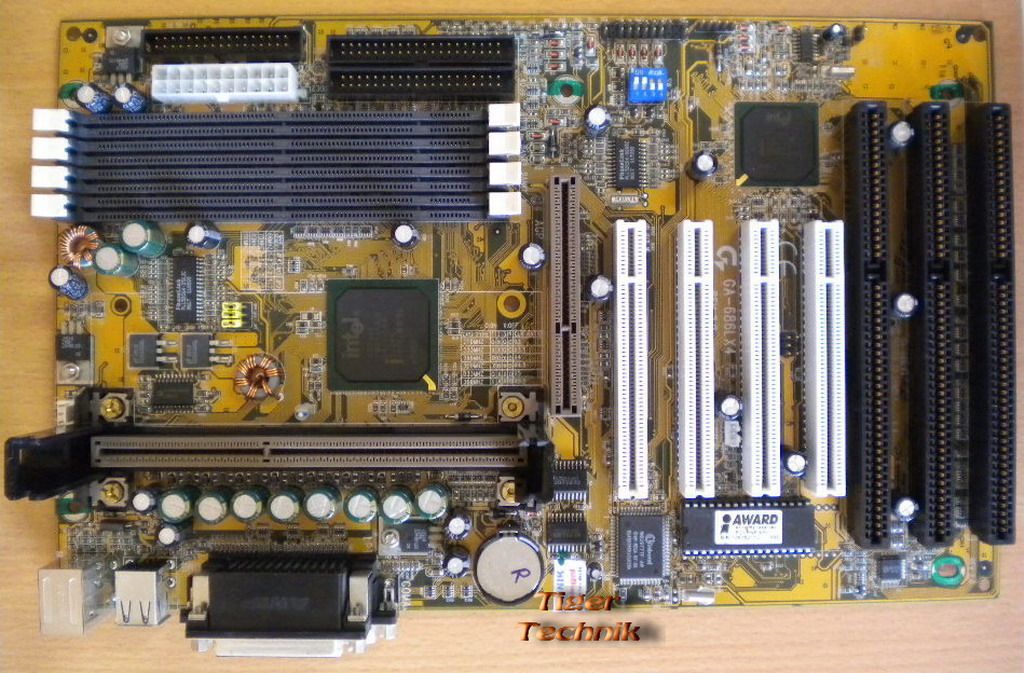

Gigabyte GA-686LX4 Rev 2.0 Mainboard + Blende
Technische Daten
CPU
Intel Pentium ® II Processor 233MHz-333MHz.
Slot 1 Socket for Future Expansion
Chipset
Intel 82440 LX AGPset
Winbound 83977 I/O (1Mb/S)
Winbound 83781 Health Chip
Memory
CPU Built-in 256KB/512KB L2 cache
4 x 168-pin 3.3v DIMM sockets support
Supports 8/16/32/64/128/256 MB DIMM Module
Supports EDO RAM, SDRAM (Support ECC, 72 bit)
Supports 8MB to 1GB DRAM Size
Expansion Slots
4 x PCI 32-bit slots, PCI 2.1 compliant
3 x ISA 16-bit slots
1x AGP (1x & 2x Mode,66/133MHz) slot
Support Cretive PCI Sound Card SB-Link
I/O Controller
1x floppy port (360KB-2.88MB)
2x serial ports (16550 high-speed)
1x parallel port (EPP/ECP)
1x PS/2 Keyboard
1x PS/2 Mouse
2x USB
H/W Monitoring
Temperature Sensor Under Processor Heatsink
Speaker Alarm When CPU Overheats or CPU Fan Failure
Auto Speed Down When CPU Overheats
System Health Status Detect & Report by BIOS, LDCM® & Winbond Health program.
Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
BIOS
2 Mbit (256KB) FLASH RAM
Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
Auto-detect & Report System Health Status
Form Factor
ATX Form Factor, 4 layer PCB
ATX Connector on Board
Double Deck ATX Back Panel
Lieferumfang

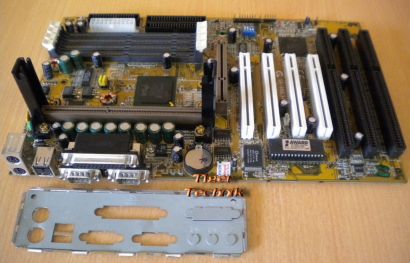

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
