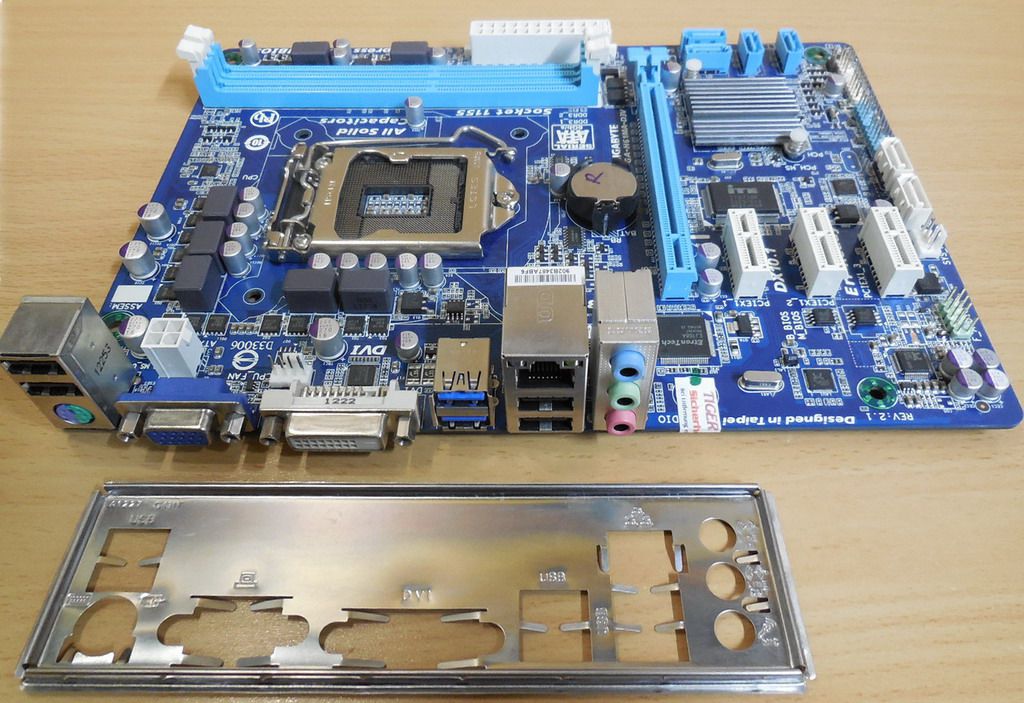

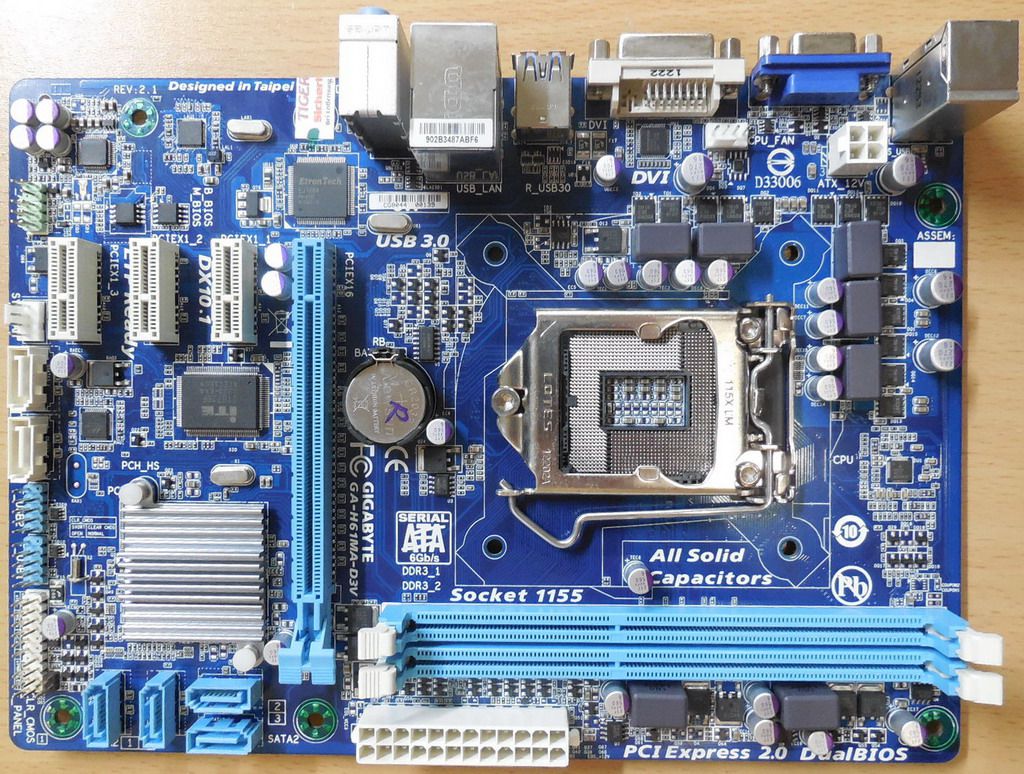

Gigabyte GA-H61MA-D3V Rev2.1 Mainboard +Blende Intel H61 Sockel 1155 DDR3* m790

Gigabyte GA-H61MA-D3V Rev2.1 Mainboard +Blende Intel H61 Sockel 1155 DDR3

Technische Daten

Prozessor

Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package

L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipsatz

Intel® H61 Express Chipset

Arbeitsspeicher

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

(Please refer "Memory Support List" for more information.)

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

Onboard Grafik

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Realtek RTL8111E/RTL8111F chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16 conforms to PCI Express 3.0 standard. )

* PCIE Gen.3 is dependent on CPU and expansion card compatibility.

3 x PCI Express x1 slot (Slots conform to PCI Express 2.0 standard.)

Storage Interface

Chipset

4 x SATA 3Gb/s connectors (SATA2 0/1/2/3) supporting up to 4 SATA 3Gb/s devices

Marvell 88SE9172 chip

2 x SATA 6Gb/s connectors (GSATA3 0/1) supporting up to 2 SATA 6Gb/s devices

Support for RAID 0 and RAID 1

USB

Chipset

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Etron EJ168 chip

Up to 2 USB 3.0/2.0 ports on the back panel

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

4 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE IT8728F chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control

*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 32 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress Recovery2; Support for EasyTune (* Available functions in EasyTune may differ by motherboard model.); Support for ON/OFF Charge

Betriebssystem

Support for Microsoft® Windows® 8/7/Vista/XP

Form Factor

Micro ATX Form Factor; 24.4cm x 17.4cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
