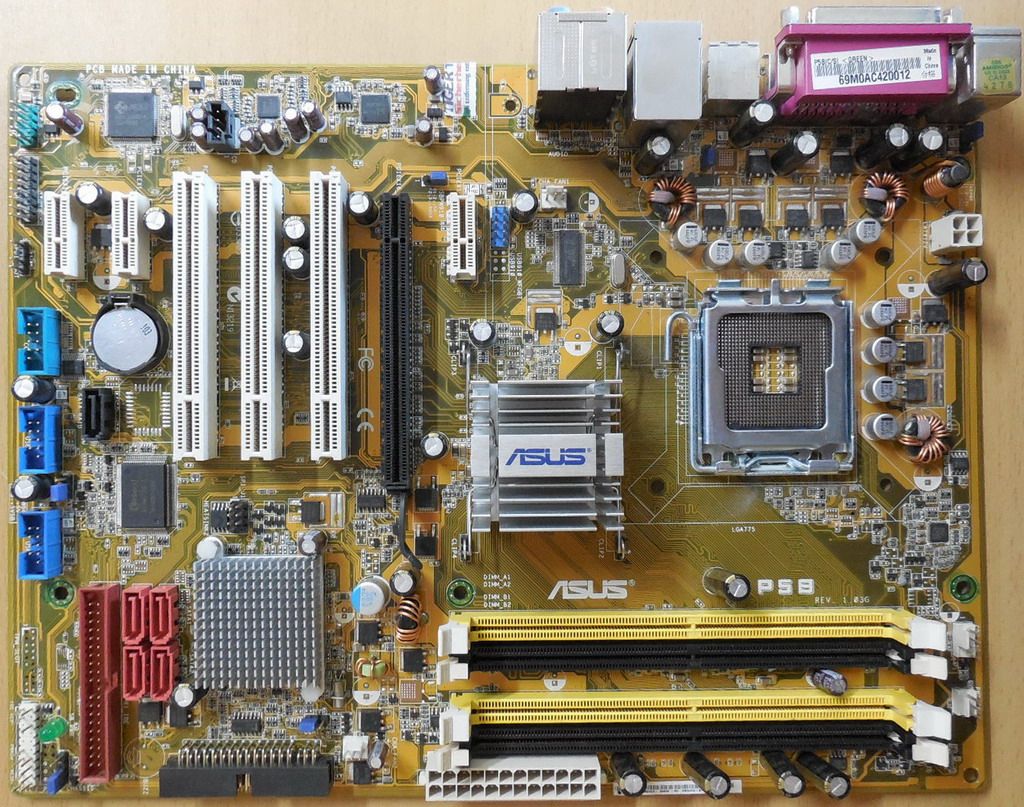

Asus P5B Rev 1.03G Mainboard +Blende Sockel 775 Intel P965 DDR2 SATA2 IDE* m1153

Asus P5B Rev 1.03G Mainboard + Blende Sockel 775 Intel P965 DDR2 SATA II IDE GbE LAN 8ch Audio

Technische Daten

CPU

Intel Socket 775 Core™2 Quad / Pentium® Dual-Core / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron Dual-Core / Celeron® Processors (Für einige CPUs ist möglicherweise Bios Update nötig)

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm Multi-Core CPU

Intel® Hyper-Threading Technology ready; Intel® Quad Core CPU ready

Refer to the Asus Website for Intel CPU support list

Chipsatz

Intel® P965 / ICH8 with Intel® Fast Memory Access Technology

Front Side Bus

1066 / 800 / 533 MHz

Memory

4 x DIMM, max. 8GB, DDR2 800 / 667 / 533 MHz, non-ECC, un-buffered memory

Dual Channel memory architecture

Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

Expansion Slots

1 x PCIe x16

3 x PCIe x1

3 x PCI 2.2

Storage

by Southbridge

4 x SATA 3.0 Gb/s ports

by JMicron® JMB363 PATA and SATA controller

1 x UltraDMA 133/100/66 for up to 2 PATA devices

1 x Internal SATA 3.0 Gb/s port

1 x External SATA 3.0 Gb/s port (SATA On-the-Go)

Support SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)

LAN

Realtek® RTL8111B PCIe GbE 10/100/1000 Mbits Gigabit Ethernet LAN

Audio

ADI® AD1988A 8-channel High Definition Audio CODEC

Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking

Coaxial / Optical S/PDIF out ports at back I/O

ASUS Noise Filter

USB

10 x USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS Quiet Thermal Solution:   ASUS AI Gear; ASUS AI Nap; ASUS Q-Fan 2

ASUS Crystal Sound:   ASUS Noise Filter

ASUS EZ DIY:   ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools:   AI NOS™ (Non-delay Overclocking System); AI Overclocking (intelligent CPU frequency tuner); ASUS AI Booster utility

Precision Tweaker:   vCore: Adjustable CPU voltage at 0.0125V increment; vDIMM: 2-step DRAM voltage control

SFS (Stepless Frequency Selection):   FSB tuning from 100MHz up to 400MHz at 1MHz increment; Memory tuning from 400MHz up to 1066MHz; PCI Express frequency tuning from 90MHz up to 150MHz at 1MHz increment

Overclocking Protection:   ASUS C.P.R.(CPU Parameter Recall)

Other ASUS Special Features

ASUS MyLogo 2

Back Panel I/O Ports

1 x Parallel

1 x e-SATA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45 port

4 x USB 2.0/1.1

1 x S/PDIF Out (Coaxial + Optical)

8-Channel Audio I/O

Internal I/O Connectors

3 x USB connectors supports additional 6 USB 2.0 ports

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

5 x SATA connectors

1 x CPU Fan connector (4-pin)

2 x Chassis Fan connector (3-pin)

1 x Power Fan connector (3-pin)

1 x Front panel audio connector (AAFP)

1 x Azalia Digital Header

1 x S/PDIF Out Header

1 x Chassis Intrusion connector

1 x CD audio in connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x System Panel connector

1 x SPI_J1 connector

1 x CLRTC Jumper

1 x USBPW5678 Jumper

1 x USBPW910 Jumper

BIOS

8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SMBIOS 2.3, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Lieferumfang

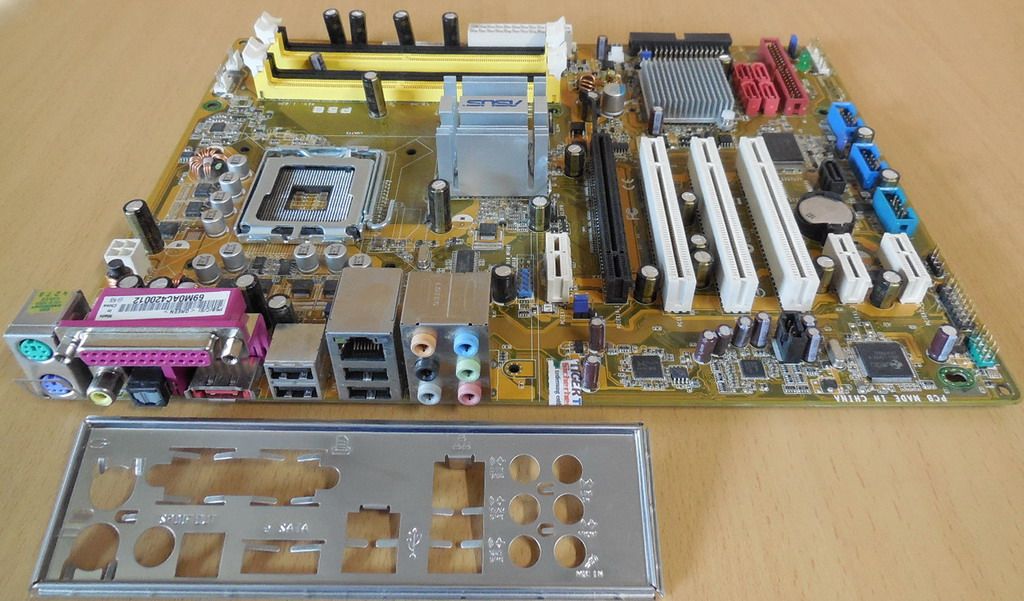

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
