Asus P5QL SE Rev 1.01G Mainboard +Blende Sockel 775 PCIe 16x DDR2 LAN Audio*m677

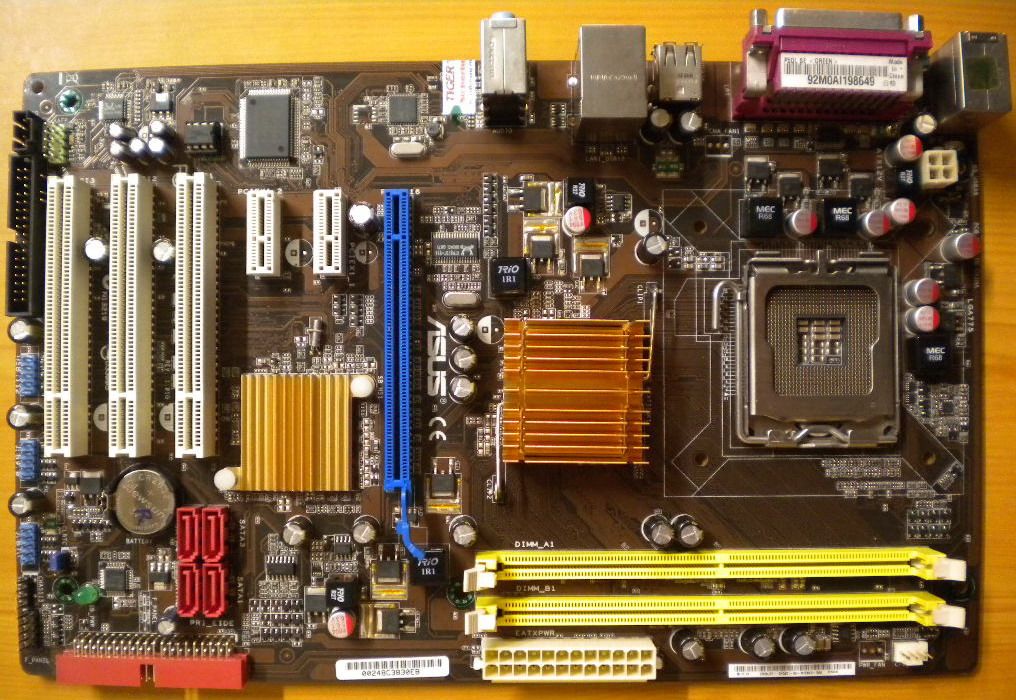

Asus P5QL SE Rev 1.01G Mainboard + Blende

Sockel 775 PCIe 16x DDR2 LAN Audio

Technische Daten

CPU

LGA775 socket for Intel® Core™2 Extreme / Intel Core™2 Quad / Core™2 Duo / Pentium® Dual-Core / Celeron® Dual-Core / Celeron® processors

Compatible with Intel® 05B/05A/06 processors

Supports Intel® 45nm multi-core CPU

Chipset

Intel® P43 / ICH10 with Intel® Fast Memory Access Technology

System Bus

1600 (O.C.) / 1333 /1066 / 800MHz

Memory

Dual-channel memory architecture

- 2 x 240-pin DIMM sockets support unbuffered non-ECC DDR2 1066 / 800 / 667MHz memory modules

- Supports up to 8GB system memory

When you install a total memory of 4GB or more, Windows® 32-bit operating system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended if you are using a Windows 32-bit operating system.

Expansion Slots

1 x PCI Express™ x16 slot

2 x PCI Express x1 slots

3 x PCI slots

Storage

Intel ICH10 southbridge supports:

- 4 x Serial ATA 3Gb/s ports

JMB368 PATA controller supports:

- 1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

PCIe Gigabit LAN controller

Audio

Realtek® ALC662 6-channel High-Definition Audio CODEC

- Supports Jack-detect and Multi-streaming

- Onboard S/PDIF header

USB

12 x USB 2.0 ports (6 at mid-board, 6 at back panel)

ASUS Unique Features

ASUS EZ DIY:

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Other Features

ASUS MyLogo2

Rear Panel Ports

1 x PS/2 keyboard port

1 x Parallel port

1 x COM port

1 x LAN (RJ-45) port

6 x USB 2.0/1.1 ports

6-channel audio I/O ports

Internal Connectors

3 x USB connectors support 6 additional USB ports

1 x Floppy disk drive connector

1 x IDE connector

4 x Serial ATA connectors

1 x CPU fan connector

1 x S/PDIF Out header

1 x Speaker connector

1 x Front panel audio connector

1 x CD audio in connector

1 x 24-pin ATX power connector

1 x 4-pin ATX 12V power connector

1 x System panel connector

BIOS Features

8Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

ATX form factor: 12 in x 7.6 in (30.5 cm x 19.3 cm)

Lieferumfang

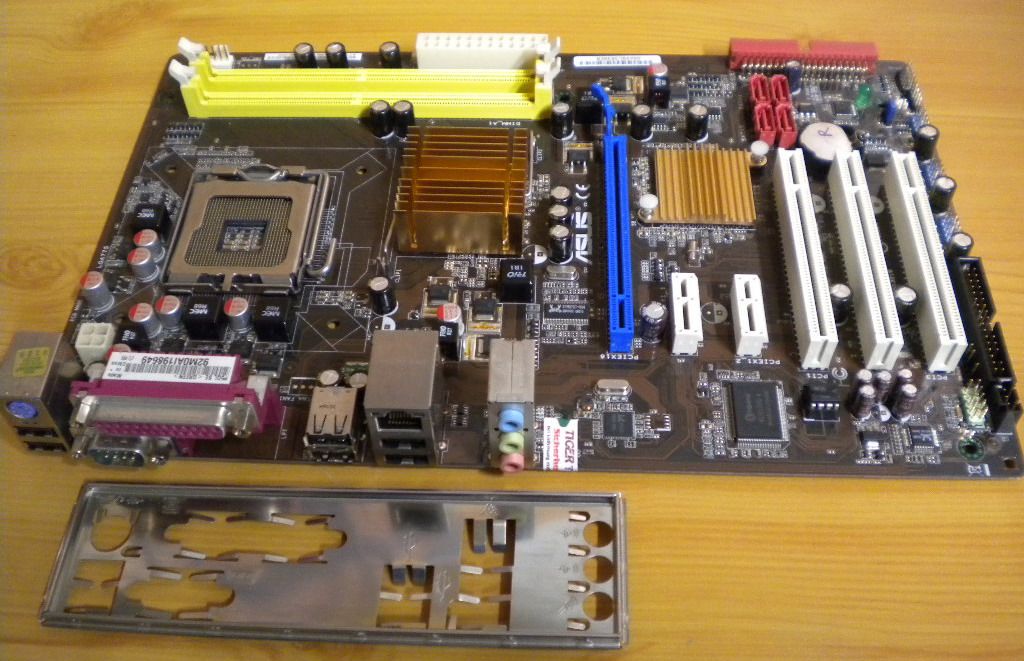

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
