FSC Fujitsu D2812-A23 GS 1 μBTX Mainboard Sockel 775 DDR2 VGA LAN Audio* m675

FSC Fujitsu D2812-A23 GS 1 μBTX Mainboard

Sockel 775 DDR2 VGA LAN Audio

z.B. für Esprimo P7935 oder baugleich

Technische Daten

Chipset: Intel® iQ45

Board size: μBTX

VGA: ja

DDR2 667/DDR2 800 Steckplätze: 4x (max. 16GB ungepuffert ohne ECC)

Stereo Audio/5.1 Multichannel Audio nein/ja

Buzzer/int. Speaker Support  nein/ja

LAN 1 Gbit/100 Mbit/10 Mbit   ja/ja/ja

LAN ASF/AoL/WoL/Boot/iAMT   ja/nein/ja/ja/ja

Serial ATA2/ATA/RAID/eSATA-support    ja/nein/nein/ja

FireWireTM/USB 2.0    nein/ja

FAN monitored PSU*/CPU(FAN1)/System(FAN2)  ja/ja/ja

FAN controlled PSU*/CPU(FAN1)/System(FAN2)  ja/ja/ja

TEMP monitored CPU/ONB1/ONB2/HDD       ja/ja/ja/nein

SmartCard SystemLock (USB/serial)       ja/nein

FSC Keyboard Power Button Support       ja

* not supported by standard Power Supplies

Expansion Slots: 1x PCIe x16; 1x PCIe x1; 2x PCI

Internal Connectors: 4x SATAII ports; 1x Floppy port; 1x FAN1 connector; 1x FAN2 connector; 1x Front Audio Panel; 3x USB2.0 connector; 1x Front Panel; 1x Power Supply FAN Control connector; 1x SPDIF connector; 1x Intrusion connector; 1x ATX 24-pin main connector; 1x ATX 12V connector

Special Features

Green Edition

Halogen-free and lead-reduced product

Silent Fan

Independent temperature related processor and fan supervision and control

System Guard

View and adjust Silent Fan

Silent Drives

Noise reduction for optical and hard disk drives

Recovery BIOS

Restores a disrupted BIOS

Desk Update

Simple driver update with Drivers&Utilities CD

Multi Boot

Comfortable boot from any boot device

HDD Password

Access protection for hard disk drives

Logo boot

Intel On Screen Branding

Lieferumfang

Das Mainboard, 1x SATA HDD Kabel lang und 1x SATA Laufwerk Kabel kurz * ohne weiteres Zubehör * gebraucht *

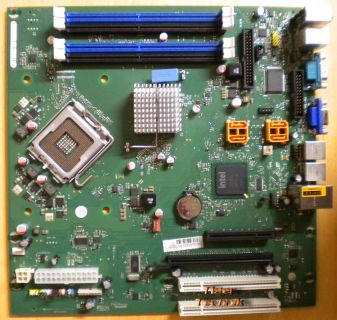

Abbildung ähnlich
