FSC Fujitsu D2584-A12 GS 3 Mainboard Intel iQ35 Sockel 775 DDR2 VGA PCIe* m1154

Fujitsu Siemens Computers D2584-A12 GS 3 Mainboard Intel iQ35 Sockel 775 DDR2 VGA PCIe SATA

Technische Daten

Hersteller       Fujitsu

Model       D2584-A12 GS 3

CPU-Unterstützung       Intel® Core™ 2 Duo with 1333/1066/800 MHz FSB / Intel® Pentium® Dual Core E2xxx with 800 MHz FSB / Intel® Celeron® 4xx processors with 800 MHz FSB; max. 65W (For details on supported processors please refer to the Fujitsu Website)

Sockel       LGA 775

Chipsatz       iQ35

Memory       4 x 240-Pin DDR2 1.8V Steckplätze für ungepufferte non-ECC 667MHz (PC2-5300) / 800MHz (PC2-6400) MHz DIMM Module; Single-Channel und Dual-Channel Support; 64-Bit, max. 8 GB Hauptspeicher

VGA       Intel® 82566DM Gigabit Ethernet Controller with 10/100/1000 MBit/s (with ASF / WoL / Boot / iAMT)

LAN       Intel® GMA 3100 Graphics; max. up to 256MB

Audio       Realtek® ALC 262, 4-channel High Definition Audio

Erweiterungssteckplätze       1 x PCIe x16; 1 x PCIe x4; 2 x PCI

USB       12 x USB2.0 (6 x Rear Panel; 6 x via Header)

Intern       Echtzeituhr/Kalender mit Batteriepufferung

1 x Floppy Drive Connector

4 x SATA2 Ports (bis zu 3GBit/s)

1 x FAN1 Connector (4-pin)

1 x FAN2 Connector (4-pin)

1 x 8-Pin Power Supply FAN Control Connector

3 x USB2.0 Connector für insgesamt 6 weitere USB Ports z.B. via Blende

1 x 24-Pin Fujitsu Power Connector

1 x 4-Pin CPU 12V Connector

1 x Front Panel Connector

1 x Audio Front Panel Connector (AFP)

1 x SPDIF Connector

1 x Parallel port Connector

1 x Chassis Intrusion Connector

1 x TPM Jumper

Externe Anschlüsse       1 x VGA Sub-D; 1 x Seriell; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 6 x USB2.0, 1 x LAN, 1 x Line-In, 1 x Line-Out, 1 x Mic

Hardware Monitoring

FAN monitored and controlled PSU* / CPU (FAN1) / AUX1 (FAN2) *not supported by standard Power Supplies

TEMP monitored CPU / Onboard / Onboard 2

BIOS       AMI BIOS modified and adapted by Fujitsu Technology Solutions

Special Features

Silent Fan                       Independent temperature related processor fan and system fan supervision and control

System Guard                View and adjust Silent Fan

Silent Drives                   Noise reduction for optical and hard disk drives

Recovery BIOS              Restores a corrupted BIOS

Desk Update                  Simple driver update with Driver&Utilities CD

Multi Boot                      Comfortable boot from any boot device

Safe Standby                 Prevents data loss in S3 (Save-to-RAM)

HDD Password              Access protection for ATA disk drives

Keyboard Power Button Fujitsu Technology Solutions Keyboard Power Button Support

Logo Boot

Intel On Screen Branding

Formfaktor       μBTX 265 x 267 mm

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

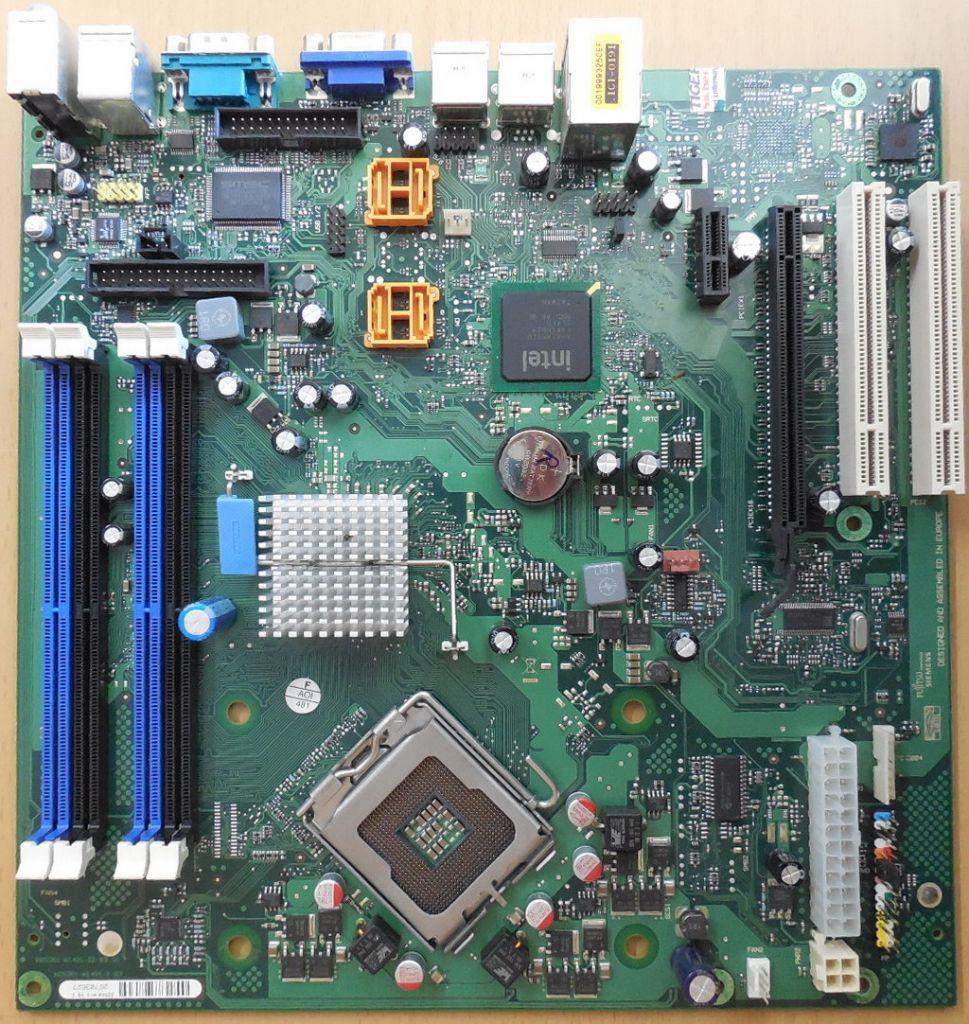

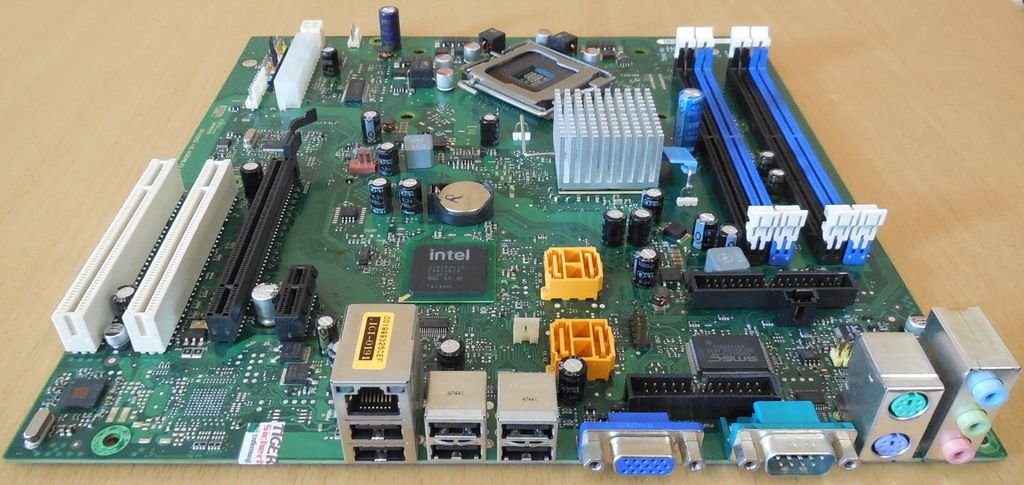

Abbildung ähnlich
