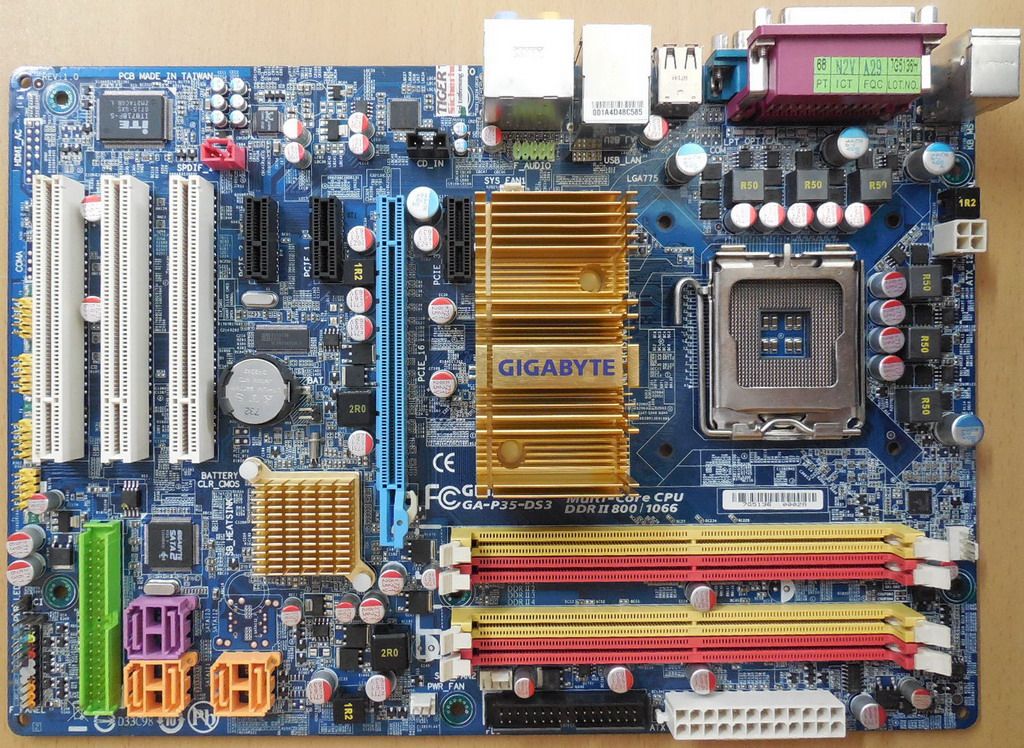

Gigabyte GA-P35-DS3 Rev 1.0 Mainboard + Blende Intel P35 Sockel 775 DDR2* m1155

Gigabyte GA-P35-DS3 Rev 1.0 Mainboard + Blende Intel P35 Sockel 775 DDR2

Technische Daten

Prozessor

Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme / Intel® Pentium® D processors

Supports FSB 1333/1066/800MHz

Chipsatz

Intel® P35 Express Chipset Northbridge + Intel® ICH9 Southbridge

Gigabit Lan Controller

8 Channels ALC889A Audio controller

Arbeitsspeicher

Supports DDR2 1066*/800/667 memory (*Please refer to "Memory Support List")

Dual Channel architecture supports up to 8GB by 4 DIMM slots

Erweiterungssteckplätze

1 x PCI Express X16 slot

3 x PCI Express X1 slots

3 x PCI slots

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x 3-pin system fan header

1 x 3-pin power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

4 x USB 2.0/1.1 connectors (supports 8 ports)

1 x chassis intrusion header

1 x power LED header

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

1 x parallel port

1 x serial port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Andere Funktionen

Ultra Durable 2 Motherboard

All Japanese manufactured solid

Over-clocking Enhanced

BIOS

Supports Virtual DualBIOS

1 x 8 Mbit flash

Use of licensed AWARD BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Form Factor

ATX form factor; ca. 305 x 210mm

Lieferumfang

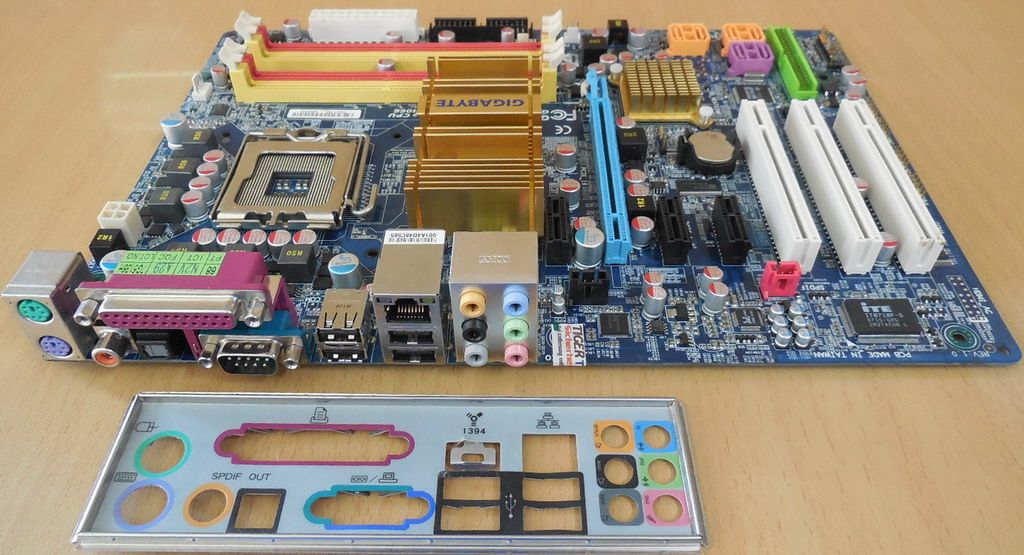

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
