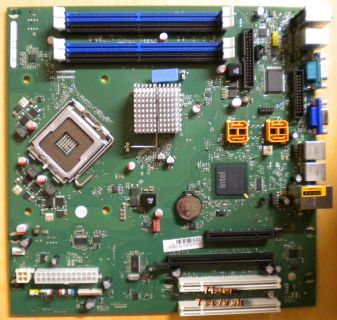

FSC Fujitsu D2812-A13 GS 4 μBTX Mainboard
Sockel 775 DDR2 VGA LAN Audio
z.B. für Esprimo P7935 oder baugleich
Technische Daten
Chipset: Intel® iQ45
Board size: μBTX
VGA: ja
DDR2 667/DDR2 800 Steckplätze: 4x (max. 16GB ungepuffert ohne ECC)
Stereo Audio/5.1 Multichannel Audio nein/ja
Buzzer/int. Speaker Support nein/ja
LAN 1 Gbit/100 Mbit/10 Mbit ja/ja/ja
LAN ASF/AoL/WoL/Boot/iAMT ja/nein/ja/ja/ja
Serial ATA2/ATA/RAID/eSATA-support ja/nein/nein/ja
FireWireTM/USB 2.0 nein/ja
FAN monitored PSU*/CPU(FAN1)/System(FAN2) ja/ja/ja
FAN controlled PSU*/CPU(FAN1)/System(FAN2) ja/ja/ja
TEMP monitored CPU/ONB1/ONB2/HDD ja/ja/ja/nein
SmartCard SystemLock (USB/serial) ja/nein
FSC Keyboard Power Button Support ja
* not supported by standard Power Supplies
Special Features
Green Edition
Halogen-free and lead-reduced product
Silent Fan
Independent temperature related processor and fan supervision and control
System Guard
View and adjust Silent Fan
Silent Drives
Noise reduction for optical and hard disk drives
Recovery BIOS
Restores a disrupted BIOS
Desk Update
Simple driver update with Drivers&Utilities CD
Multi Boot
Comfortable boot from any boot device
HDD Password
Access protection for hard disk drives
Logo boot
Intel On Screen Branding
Lieferumfang

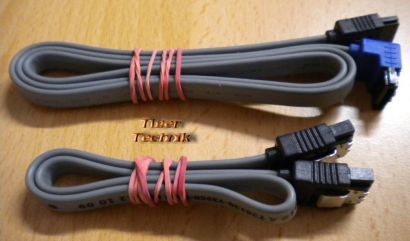

Das Mainboard inkl. Blende, 1x SATA HDD Kabel lang und 1x SATA Laufwerk Kabel kurz * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
