Products description

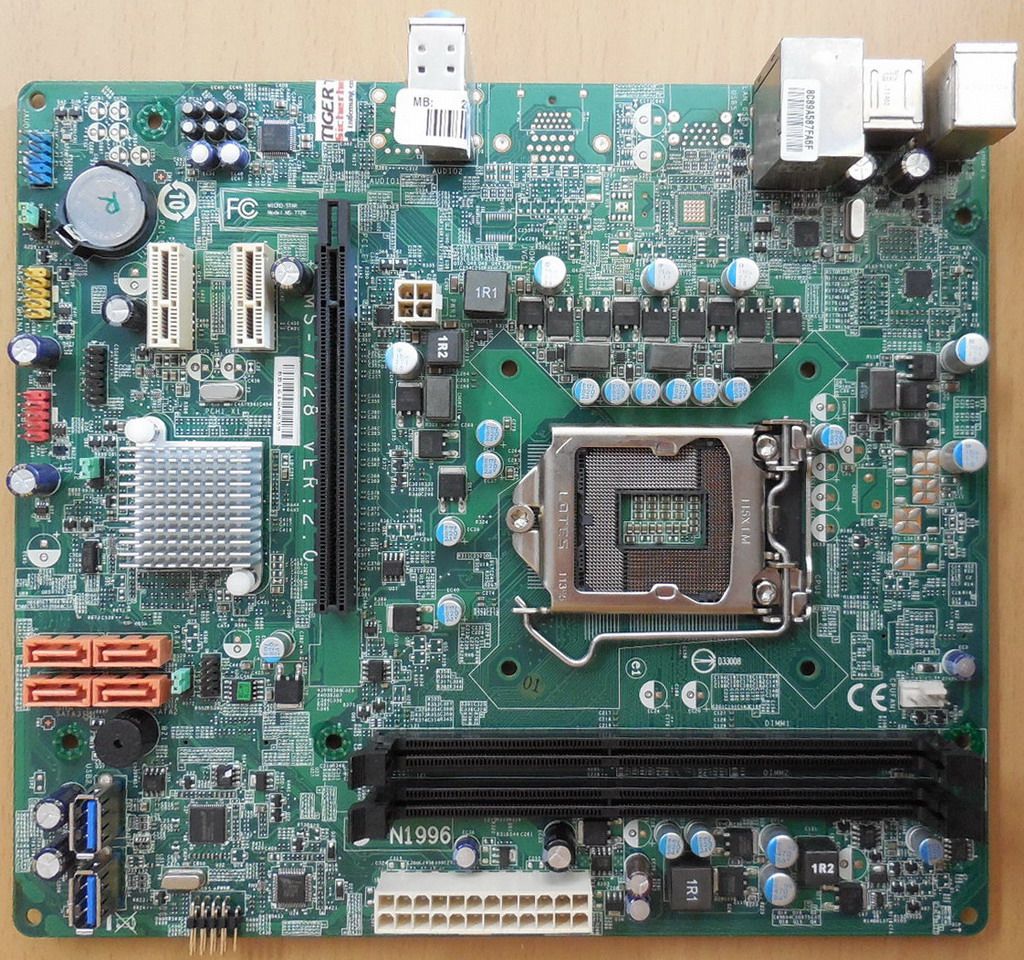

MSI MS-7728 Ver 2.0 Mainboard + Blende Intel H61 Sockel 1155 Medion MT742G USB3.0 LAN Audio
Technische Daten
CPU
Intel ® Sandy Bridge processor in the LGA1155 package
Chipset
Intel ® H61 chipset
Memory Support
2 x DDR3 DIMMs support DDR3 1333/1066 DRAM (16GB Max; supports Dual-Channel mode)
LAN
Supports LAN 10/100/1000 by Realtekl ® RTL8111E
Audio
HD audio codec integrated by Realtek ® ALC887
Flexible 5.1-channel audio with jack sensing
SATA
4 x SATA 3Gb/s ports by Intel® H61 PCH
USB3.0
2 x USB 3.0 ports by ASMedia ASM1042
Internal Connectors
4 x SATA 3Gb/s ports
1 x 4-pin CPU FAN connector
1 x 24-pin ATX Power connector
1 x 4-pin 12V Power connector
1 x Front Panel connector
1 x Front Panel Audio connector
2 x USB3.0 ports
2 x USB2.0 header for 4 additional ports
1 x JSPI1 connector
1 x JLPC1 connector
1 x Buzzer
1 x CMOS Jumper
1 x J1 Jumper
1 x J2 Jumper
Back panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x LAN port
3 x flexible audio ports
Slots
1 x PCIE x16 slot
2 x PCIE x1 slots
Form Factor
Micro-ATX (24.5 cm X 21.5 cm)
Mounting
6 mounting holes
Lieferumfang

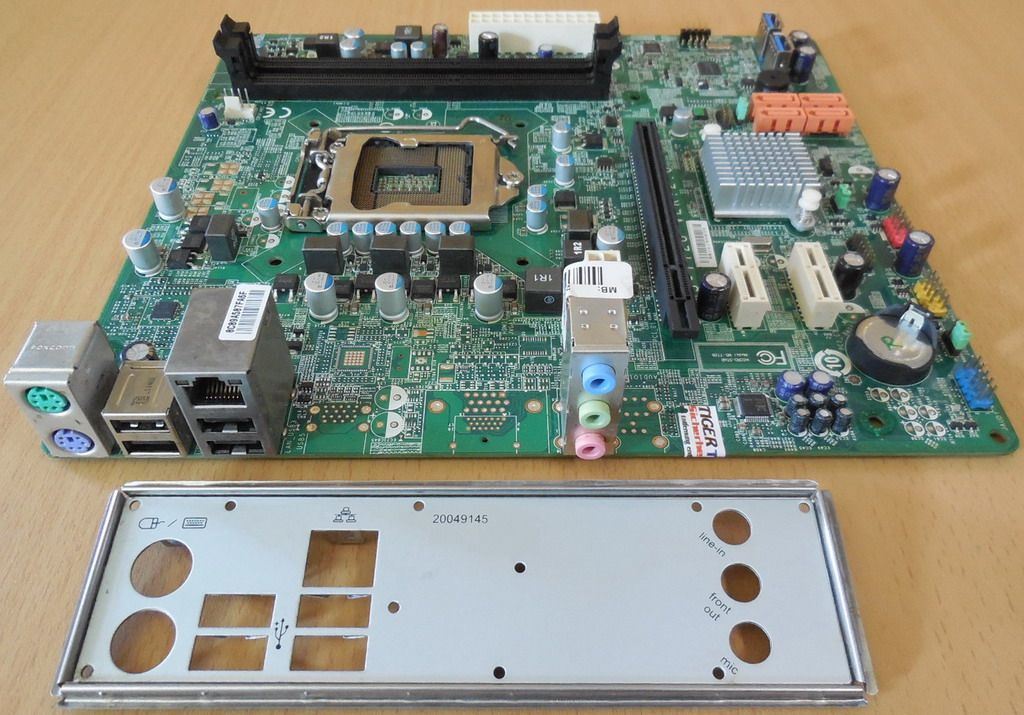

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
