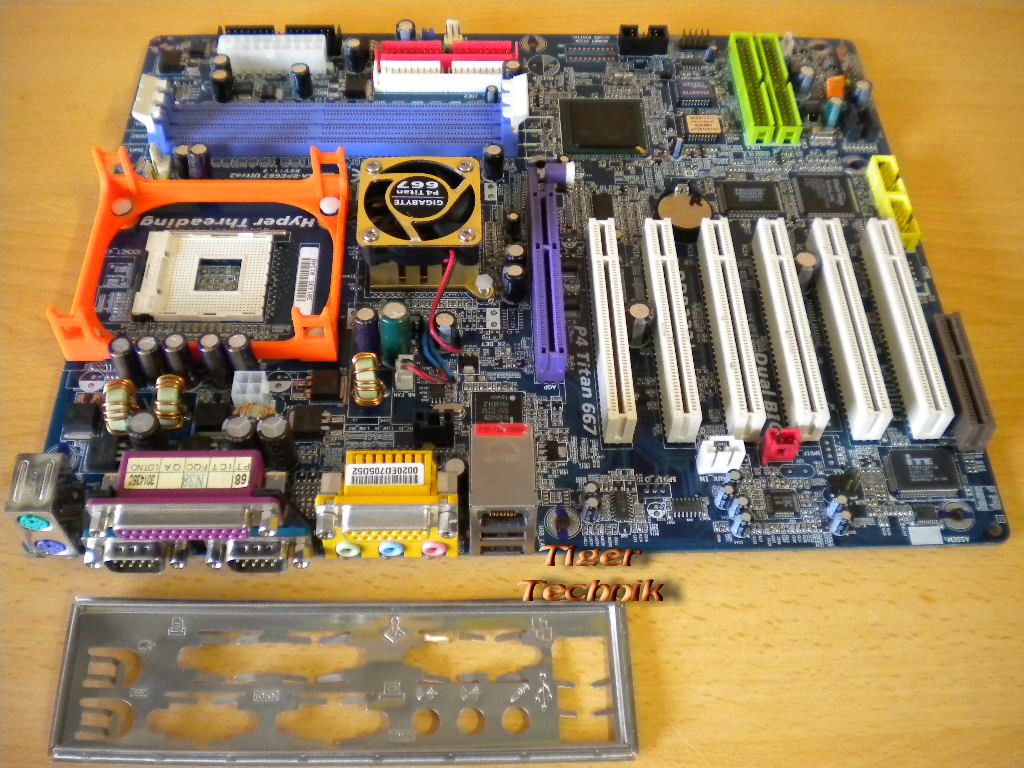

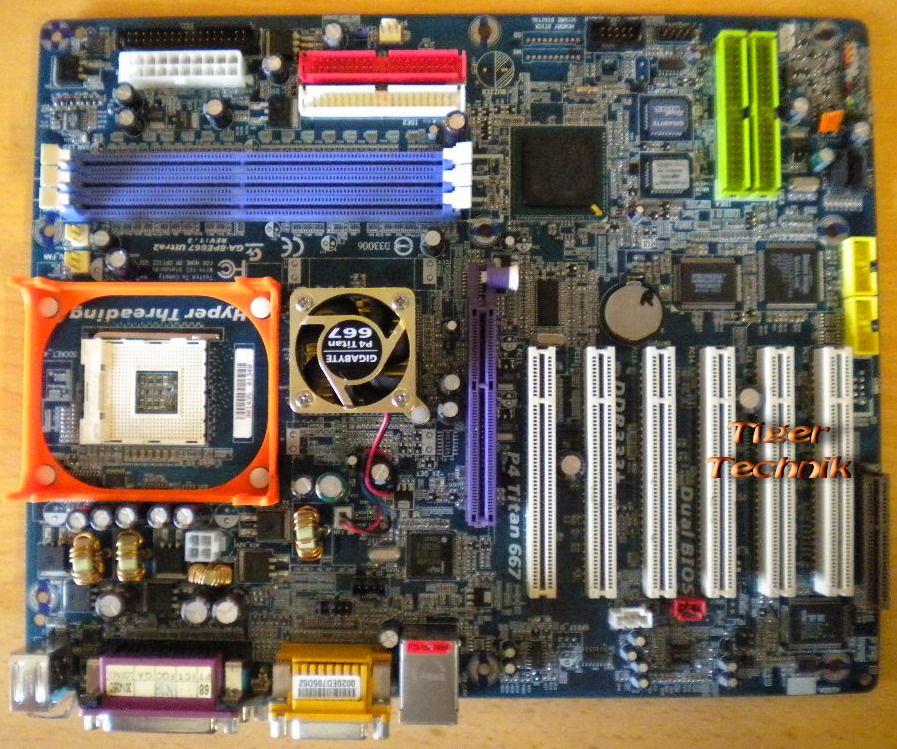

Gigabyte GA-8PE667 Ultra2 Mainboard + Blende P4 Titan Sockel 478* m169

CPU

1. Socket 478 for Intel^®Pentium^® 4 with HT Technology

Chipset

1. Intel^® 82845PE MCH
2. Intel^® 82801DB ICH4
3. Intel^® 82540EM Gigabit Ethernet Controller
4. Silicon Image Sil3112A chip
5. Promise 20276 RAID controller chip
6. Realtek ALC650E Audio AC'97 CODEC
7. Super I/O: ITE I/O IT8712F chip
8. 2 x 4M bit flash ROM

Front Side Bus

1. 533/400 MHz FSB

Memory

1. Type: DDR 266/333 ( PC2100/2700) Non-ECC
2. 3 x DIMM
3. Max capacity: Up to 2 GB

Internal I/O Connectors

1. 1 x FDD
2. 2 x Serial ATA
3. 2 x UDMA ATA 133/100/66 Bus Master IDE
4. 2 x UDMA ATA 100/66 Bus Master IDE
5. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
6. S/P DIF input/output (with rear bracket)
7. 3 x cooling fan pin headers
8. CD/AUX in

Expansion Slots

1. 1 x AGP 4x, supports 1.5v display card only.
2. 6 x PCI (PCI 2.2 compliant)
3. 1 x CNR

Back Panel Connectors

1. 2 x USB 2.0 ports
2. 1 x RJ45 LAN port
3. 1 x LPT
4. 2 x COM ports
5. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
6. PS/2 Keyboard/Mouse connector
7. 1 x Game/Midi port

CPU/AGP/DIMM setting

1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
2. AGP Voltage / Clock adjustable via BIOS
3. DIMM Voltage / Clock adjustable via BIOS

Form Factor

1. ATX
2. 30.5cm x 24.4cm

H/W Monitoring

1. System health status auto-detect and report by BIOS
2. H/W detect and report power-in voltage, CPU voltage, and Fan speed

Other Features

1. GIGABYTE patented DualBIOS™
2. IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.
3. Suspend to RAM (STR)
4. Supports USB KB / MS wake up from S3
